第二章: 硬件安装 | 9

Z270GTN & B250GTN

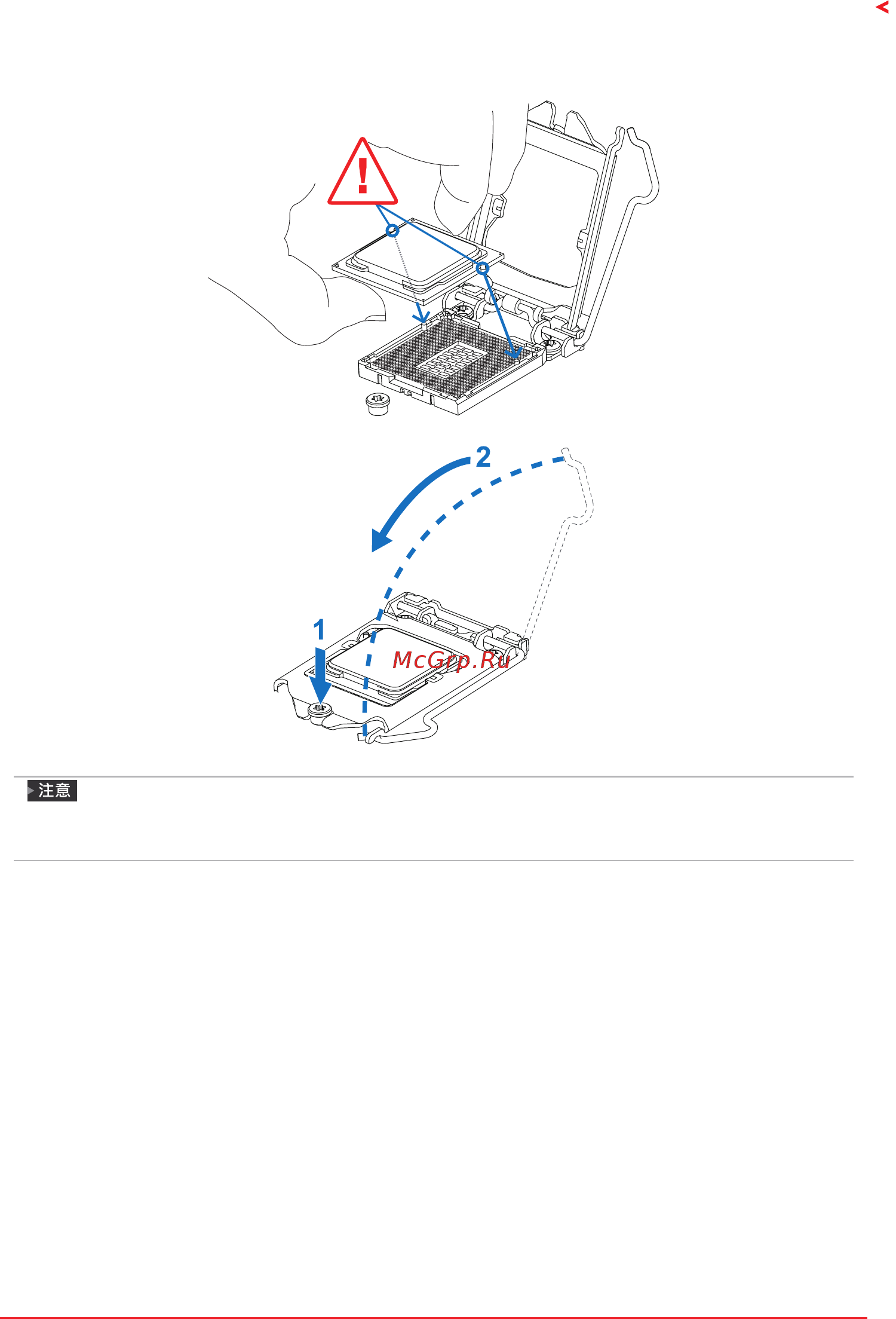

步骤4: 按照箭头的指示方向，将CPU上的切口对准插槽上相应的位置，然后将CPU放入

插槽处

步骤5: 固定CPU，将拉杆闭合。

请确保安装专为LGA1151插座設計的CPU。

CPU必须按正确的方向放入，不要强行将CPU放进插槽以免损坏CPU。
