第四章:帮助信息 | 35
Z270GTN & B250GTN

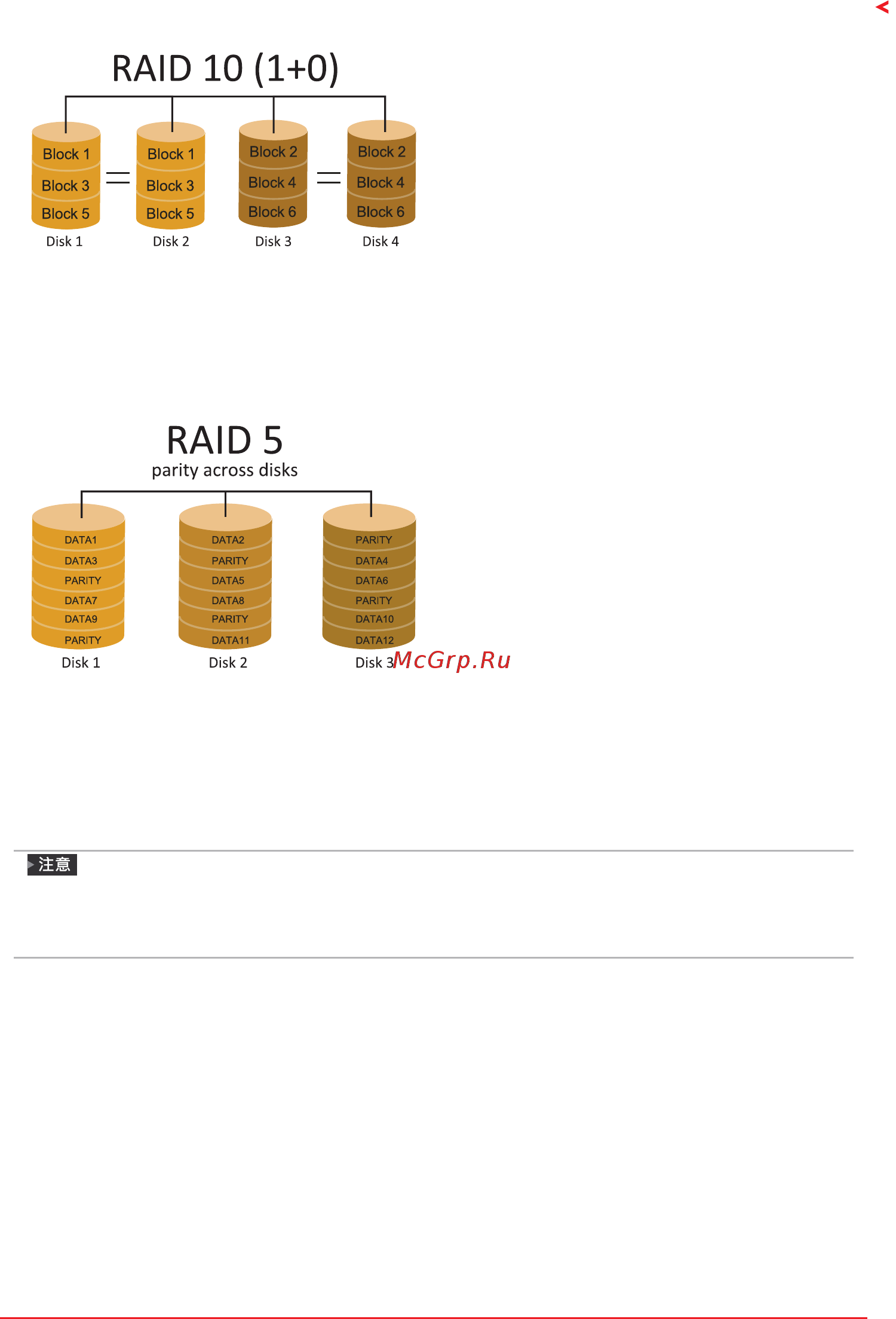

RAID 10模式是对RAID 0/ RAID 1两种不同
模式的结合，可以同时支持带区集和镜像，
这样既可以提升速度又可以加强数据的安全
性。
性能及优点
• 驱动器: 最少4块硬盘，最多6或8块。
• 优点: 容量和性能的优化允许冗余的自动化。在一个阵列，可以同时使用其它的RAID，
并允许剩余的磁盘。
• 缺点: 数据冗余需要两倍可用磁盘空间，与RAID1相同。
• 容错: 是。
RAID 5数据块和奇偶块信息跨3块或更多块
驱动器。奇偶校验数据分散分布在磁盘阵列
的全部硬盘。容错的维护是由确保数据块传
输奇偶块信息实现的，此信息被放置在不同
于那些自身可以储存信息的驱动盘里。
性能及优点
• 驱动器: 最少3块硬盘。
• 使用: RAID 5被推荐用于处理交易和普通操作服务。
• 优点: 一个理想的最佳性能的结合，最佳容错，大容量和最快存储效率。
• 缺点: 个别资料区块的传输速率和单一硬盘相同，写入的效能会取决于CPU的速度。
• 容错: 是。
»
请访问网站http://www.intel.com/p/en_US/support/highlights/chpsts/imsm获取(Intel®
RST)英特尔快速存储技术的相关资料。
»
PCI-E 存储设备只支援 RAID 0 & 1。
