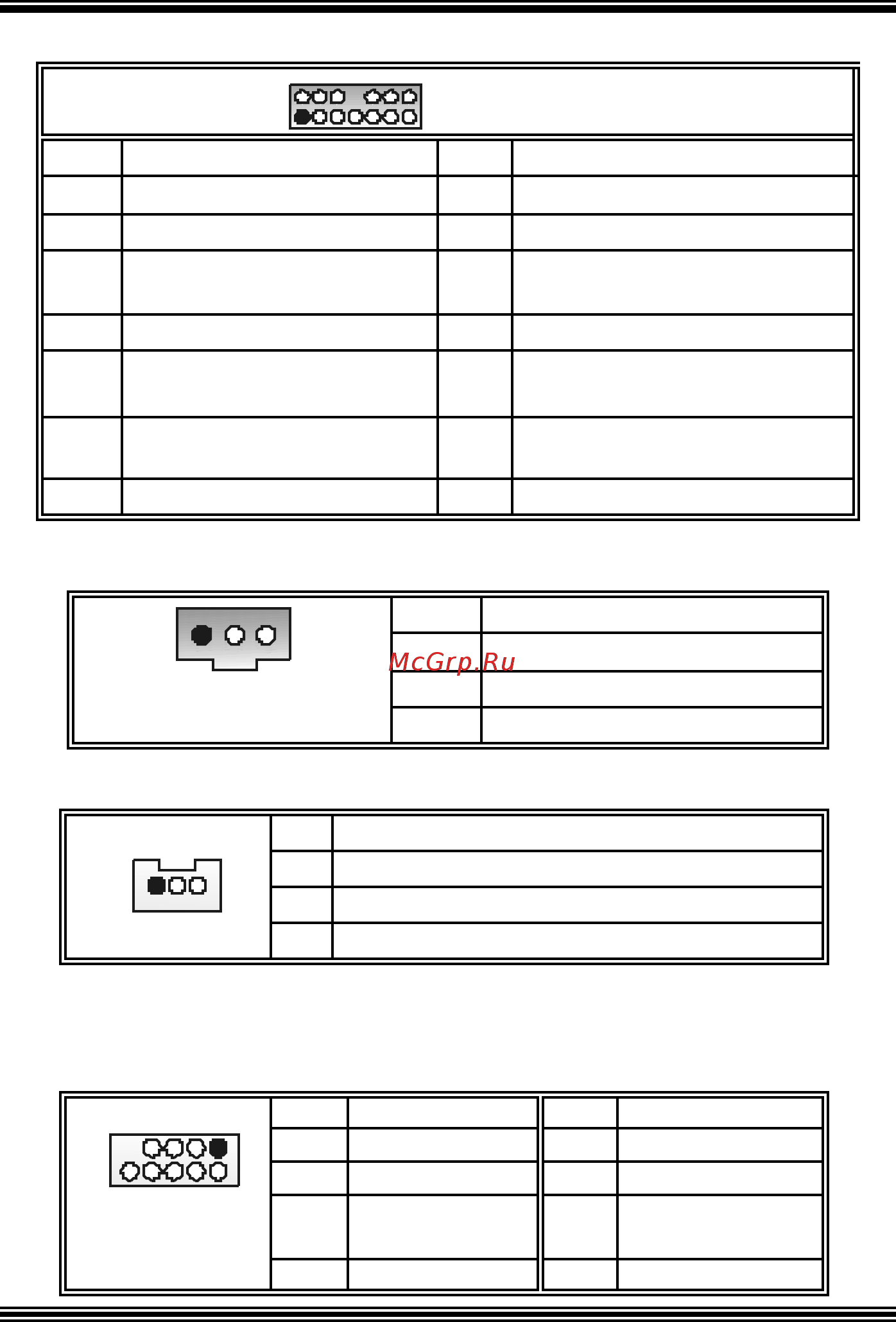

Front Panel Audio Header: JF_AUDIO1
1
2
13
14
JF_AUDIO1
Pin Assignment Pin Assignment
1
Mic In/ Center
2
Ground
3 Mic Power/ Bass 4 Audio Power
5
Right Line Out/ Speaker Out
Right
6
Right Line Out/ Speaker Out Righ
t
7
Reserv ed
8
Key
9
Left Line Out/ Speaker Out
Left
10
Left Line Out/ Speaker Out Left
11
Right Line In/ Rear Speaker
Right
12
Right Line In/ Rear Speaker Right
13
Left Line In/ Rear Speaker Left
14
Left Line In/ Rear Speaker Left
Digital Audio Connector: JSPDIF1 (Optional for version 8.0)
Pin Assignment
1
+5V
2
SPDIF_OUT
13
JSPDIF1 3
Ground
Wake On LAN Header: JWOL1 (No support for version 8.0)
Pin Assignment
1 +5V_SB
2
Ground
1
JWOL1
3 Wake up
Front USB Header: JUSB2, (JUSB1=>only support with South
Bridge VT8237)
Note: Version 8.0 supports both JUSB 1 & JUSB2.
Pin Assignment Pin Assignment
1
+5V(fused)
2
+5V(fused)
3
USB-
4
USB-
5
USB+
6
USB+
7
Ground
8
Ground
2
1
10
9
JUSB1/2
9
KEY
10
NC
