Biostar M7VIZ [61/63] M7viz bios setup

M7VIZ BIOS Setup

8 PC Health Status

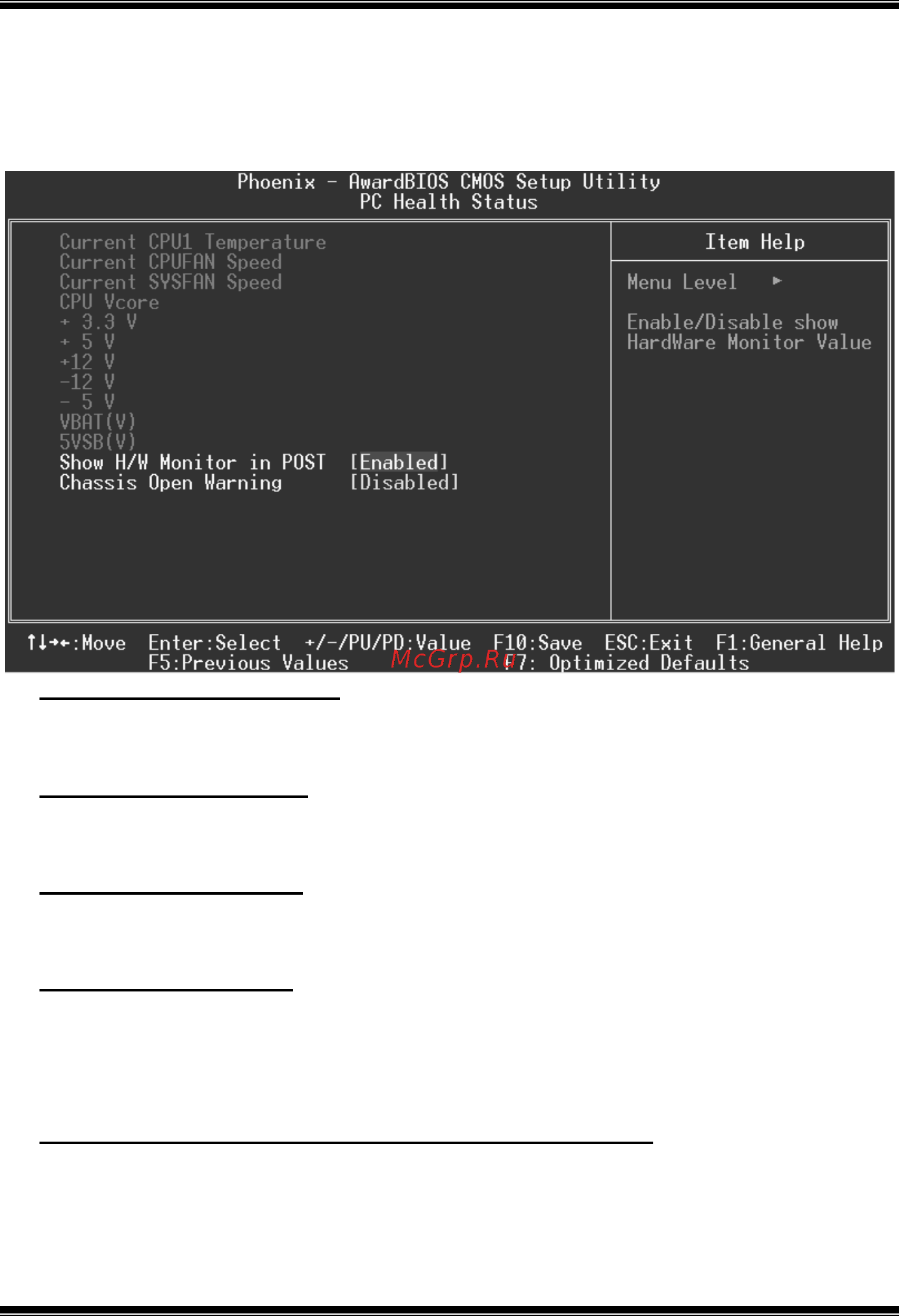

 Figure 8. PC Health Status

Current CPU1 Temperature

This field displays the current temperature of the CPU.

Current CPU FAN Speed

This field displays the current speed of CPU fan.

Current SYS FAN Speed

This field displays the current speed SYSTEM fan.

Shutdown Temperature

T his item allows you to set up the CPU shutdown T emperature. T his item only effective

under Windows 98 ACPI mode.

The Choices: Disabled (default), 60℃/140F, 65℃/149F, 70℃ /158F, 75℃/167F.

CPU Vcore/ 3.3V/ +5V/ +12V/ -12V/ -5V/ 5VSB/ VBAT(V)

Detect the system’s voltage status automatically.
