Biostar M7VIZ [4/63] Component index version 1
![Biostar M7VIZ [4/63] Component index version 1](/views2/1711915/page4/bg4.png)
M
M
M
7
7
7
V
V
V
I
I
I
Z
Z
Z
2

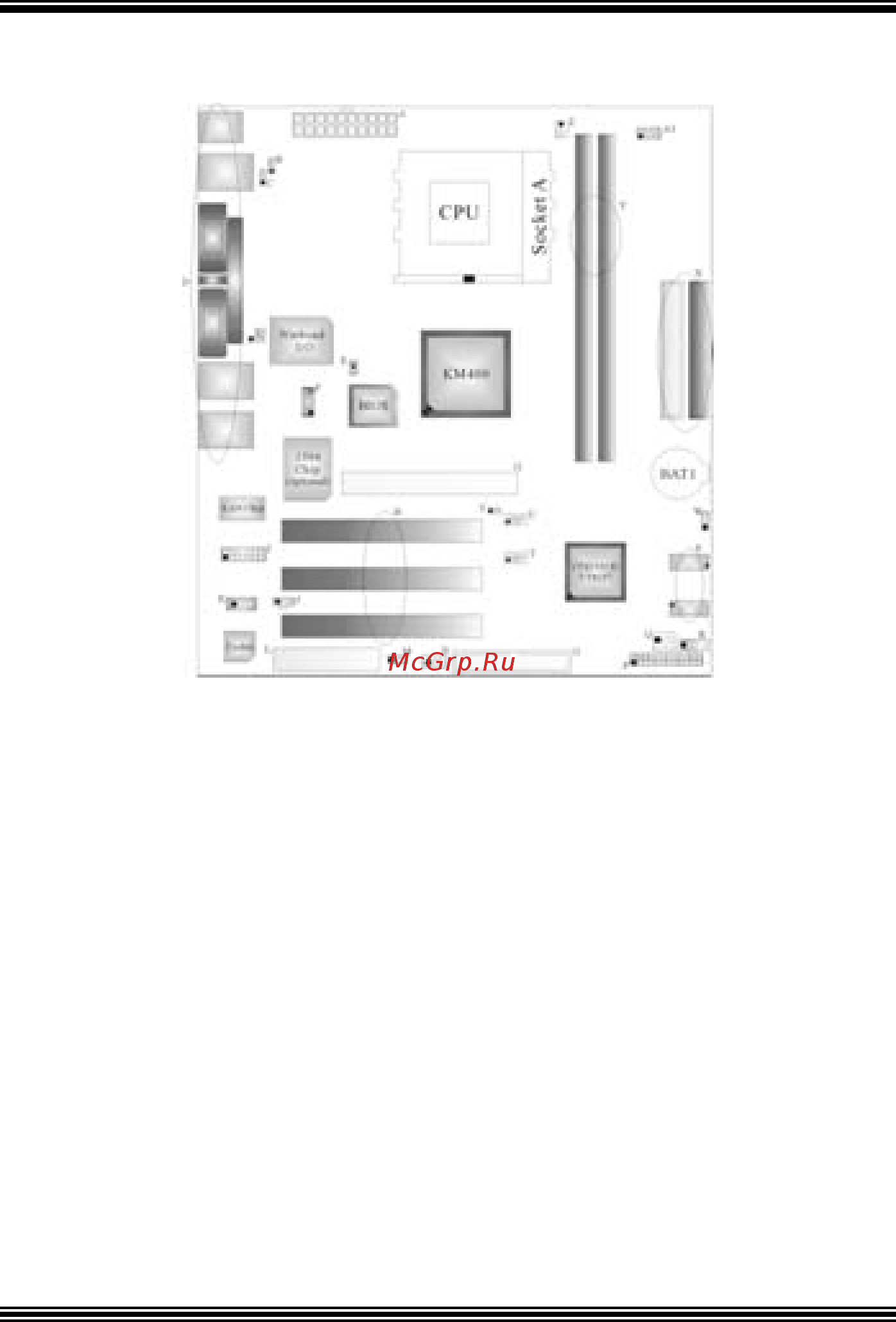

Component Index (Version 1.3)
A. ATX Power Connector (JATXPWR1) O. Floppy Dis k Connector (FDD1)
B. Power Source Selec tion for Keyboard and
Mouse (JKBV1)
P. Front Panel Connector (JPANE L1)
C. Power Source Selec tion for USB (JUSBV3) Q. Sys tem FAN Header (JSFAN1)
D. Back Panel Connector R. Audio DJ (JDJ1)
E. Case Open Connector (JCI1) S. Serial ATA C onnect or (JSATA1-2) ◎
F. Front 1394 Header (J1394B1) * T. Front USB Header (JUSB1) ◎
G. Accelerat ed Graphics Port Slot (AGP1 U. Front USB Header (JUSB 2)
H. PCI BUS Slots (PCI1-3) V. Power Source Selec tion for USB (JUSBV2)
I. Front Audio Header (JF_AUDIO 1) W. Clear CMOS Func tion (JCMOS1)
J. Digital Audio Connector (JSPDIF1) X. IDE Connectors (IDE1-2)
K. CD-ROM Audio-In Header (JCDIN1) Y. DDR Modules (DDR1-2)
L. Communication Net wor k Riser Slot (CNR1) Z. CPU Fan Connector (JCFAN1)
M. CNR Codec/ Onboard Selec tion
(JCODECSEL1)
A1. Frequenc y Selection (JCLK1)
N. Wake On LAN Header (JWOL1) B1. Power Source Selec tion for USB (JUSBV1)
* optional
◎ only support with South Bridge VT8237
