d. “Auto-ov erclock button”: User can click this button and [ WarpSpeeder™ ] will set
the best and stable performance and frequency automatically. [ WarpSpeeder™ ]
utility will execute a series of testing until system fail. Then system will do f ail-saf e
reboot by using Watchdog function. After reboot, the [ WarpSpeeder™ ] utility will

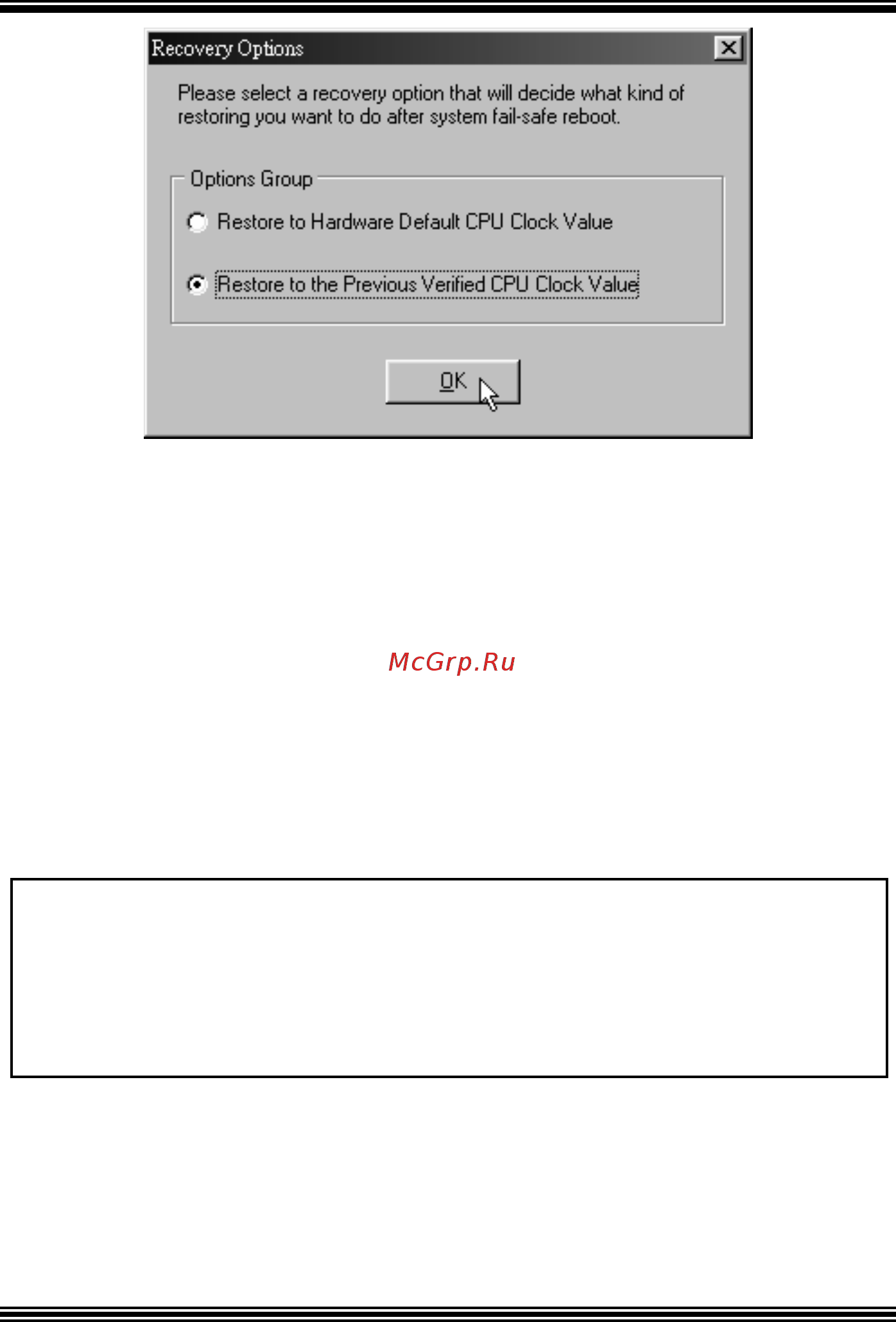

restore to the hardware def ault setting or load the verified best and stable
frequency according to the Recovery Dialog’s setting.
e. “Verify button”: User can click this button and [ WarpSpeeder™ ] will proceed a
testing f or current frequency. If the testing is ok, then the current f requency will be
saved into system registry. If the testing fail, system will do a fail-safe rebooting.
After reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default
setting or load the verif ied best and stable frequency according to the Recovery
Dialog’s setting.
Note:
Because the testing programs, invoked in Auto-overclock and Verify, include
DirectDraw, Direct3D and DirectShow tests, the DirectX 8.1 or newer runtime
library is required. And please make sure your display card’s color depth is
High color (16 bit) or True color( 24/32 bit ) that is required for Direct3D
rendering.
