Biostar M7VIZ [6/63] Component index version 8
![Biostar M7VIZ [6/63] Component index version 8](/views2/1711915/page6/bg6.png)
M
M
M
7
7
7
V
V
V
I
I
I
Z
Z
Z
4

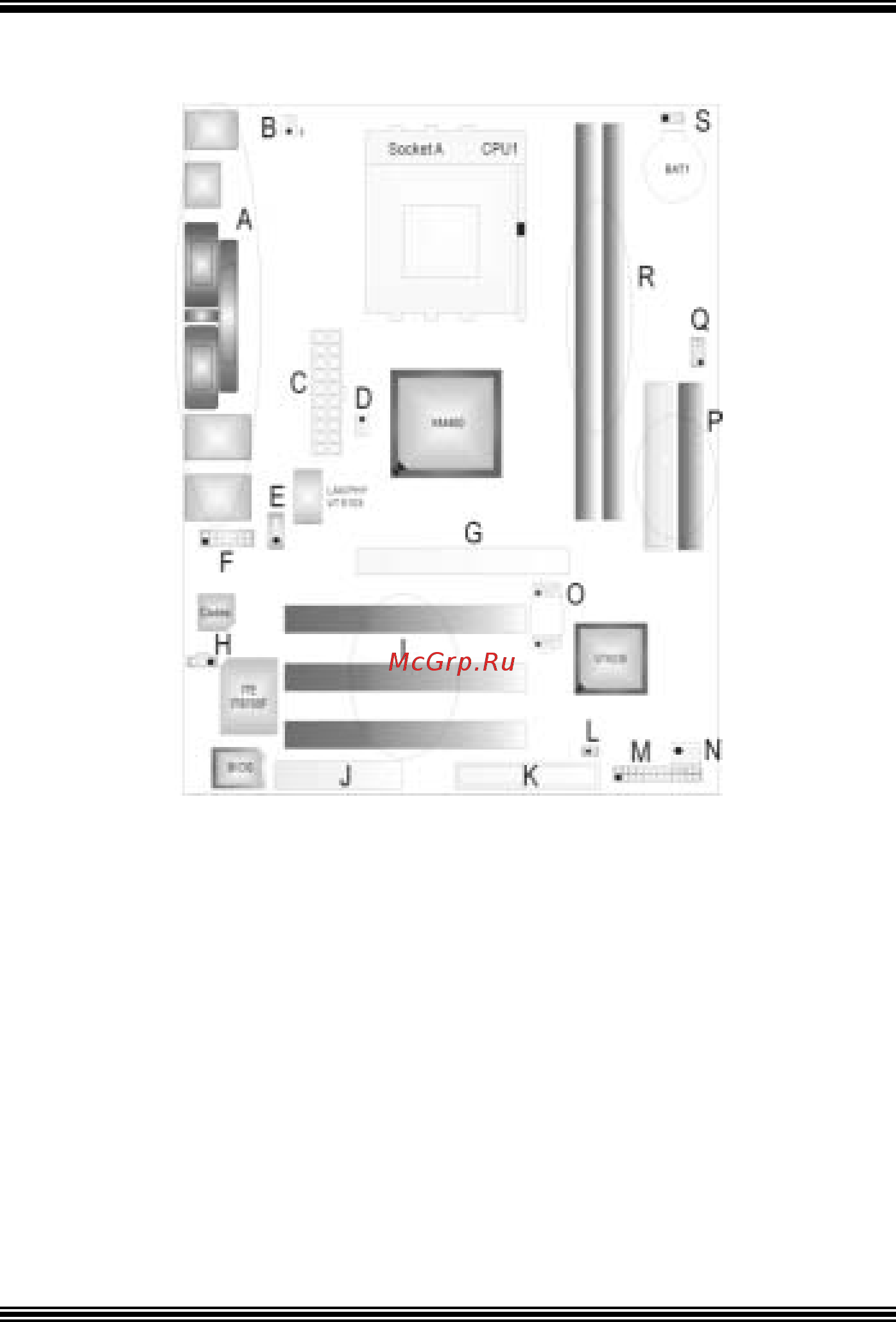

Component Index (Version 8.0)
A. Bac k Panel Connectors K. Floppy Dis k Connector (FDD1)
B. CPU Fan Connector (JCFAN1) L. Case Open Connector (JCI1)*
C. ATX Power Connector (JATXPWER1) M. Front Panel Connect or (JPANEL1)
D. North Bridge Fan Connector (JNFAN1)* N. System FAN Header (JSFAN1)
E. CD-ROM Audio-In Header (JCDIN1) O. Front USB Headers (JUSB1 & JUSB2)
F. Front Audio Header (JF_AUDIO1) P. IDE Connectors (IDE1-2)
G. Accelerated Graphics Port Slot (AGP1) Q. Frequenc y S election (JCLK1)
H. Digital Audio Connector (JSPDIF1)* R. DDR Modules (DDR1-2)
I. PCI BUS Slots (PCI 1-3) S. Clear CMOS Function (JCMOS 1)
J. Communication Networ k Riser Slot (CNR1)*
* optional
