Biostar M7VIZ [23/63] Installation

Installation

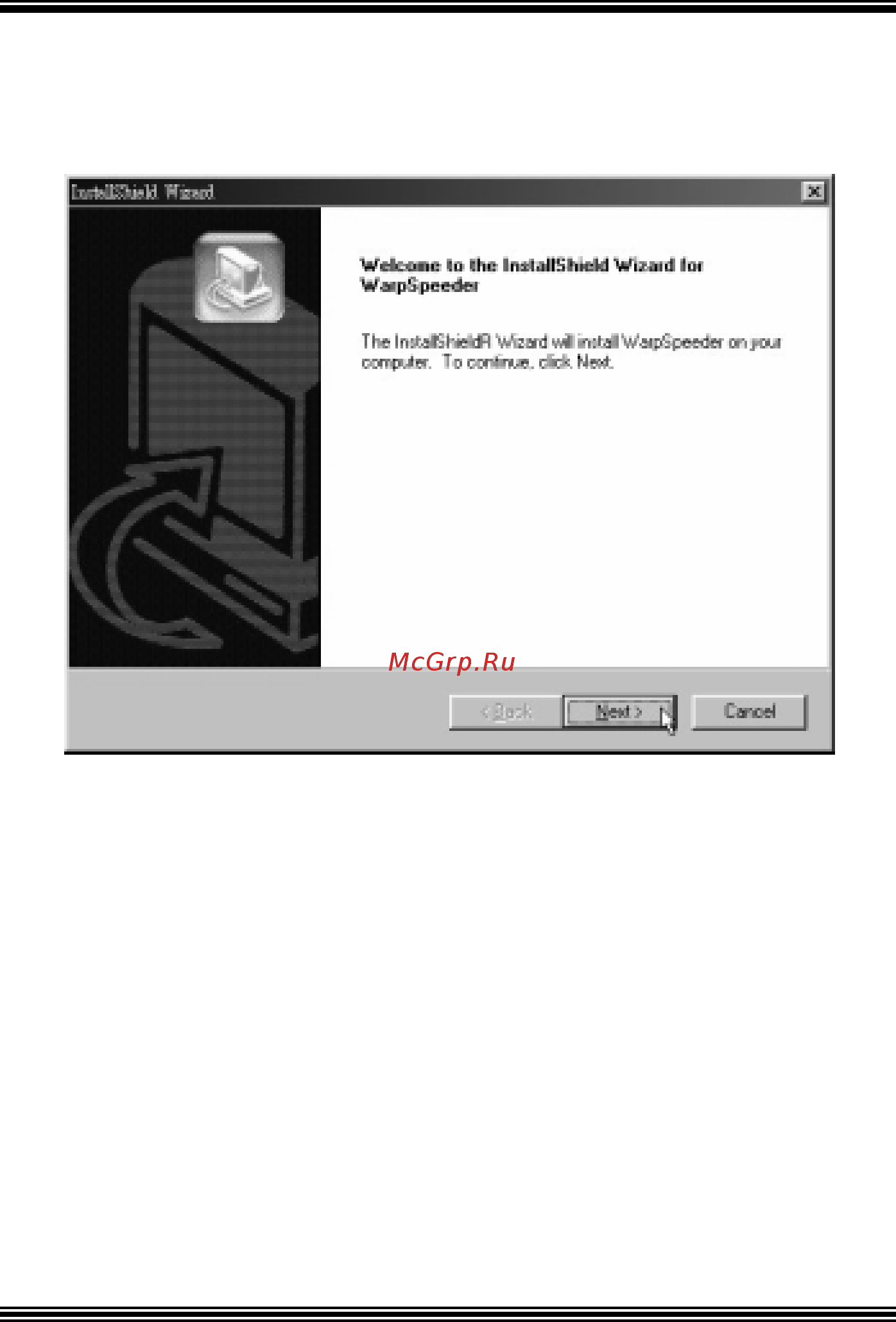

1. Execute the setup execution f ile, and then the following dialog will pop up.

Please click “Next” button and follow the default procedure to install.

2. When y ou see the f ollowing dialog in setup procedure, it means setup is

completed. If the “Launch the WarpSpeeder Tray Utility ” checkbox is checked,

the Tray Icon utility and [WarpSpeeder™] utility will be automatically and

immediately launched after y ou click “Finish” button.
