Biostar NF4UL-A9 [12/64] Cpu fan power header jcfan1

NF4 Ultra-A9

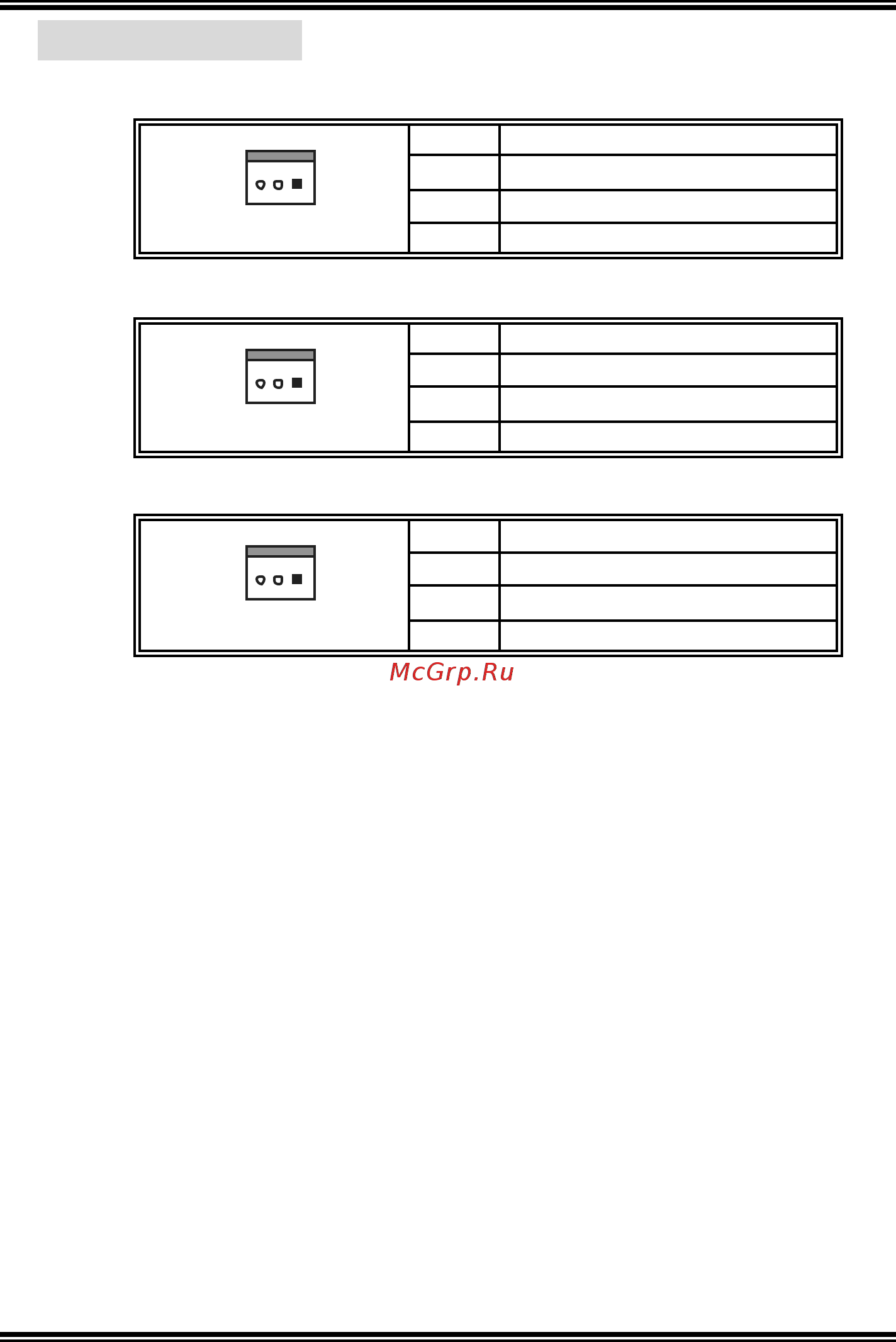

2.2 FAN HEADERS

CPU FAN Power Header: JCFAN1

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

System Fan Power Header: JSFAN1

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

North Bridge Fan Power Header: JNBFAN1

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note:

The JCFAN1, JSFAN1and JNBFAN1 support system cooling f an with

Smart Fan Control utility. It supports 3 pin head connector. When

connecting with wires onto connectors, please note that the red wire is the

positiv e and should be connected to pin#2, and the black wire is Ground

and should be connected to GND.
