NF4 Ultra-A9

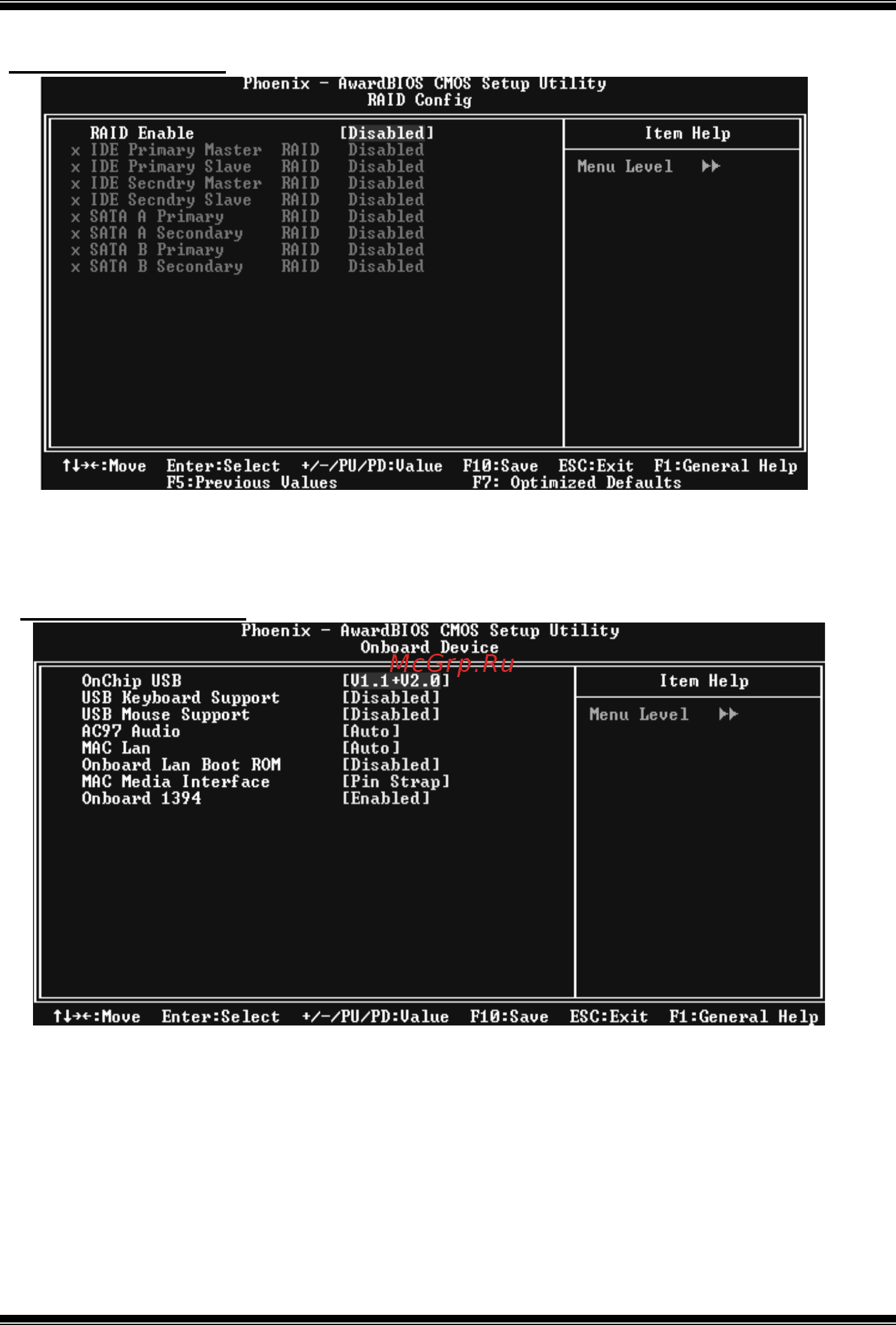

RAID Configuration

RAID Enable

The choices: Disabled (default), enable.

ONBOARD DEVICE

OnChip USB

This option should be enabled if your system has a USB installed on the

system board. You will need to disable this feature if you add a

higher performance controller.

The Choices: V1. 1+V2. 0 (default), Disabled, V1.1
