Biostar NF4UL-A9 [51/64] Integrated peripherals

NF4 Ultra-A9

5 Integrated Peripherals

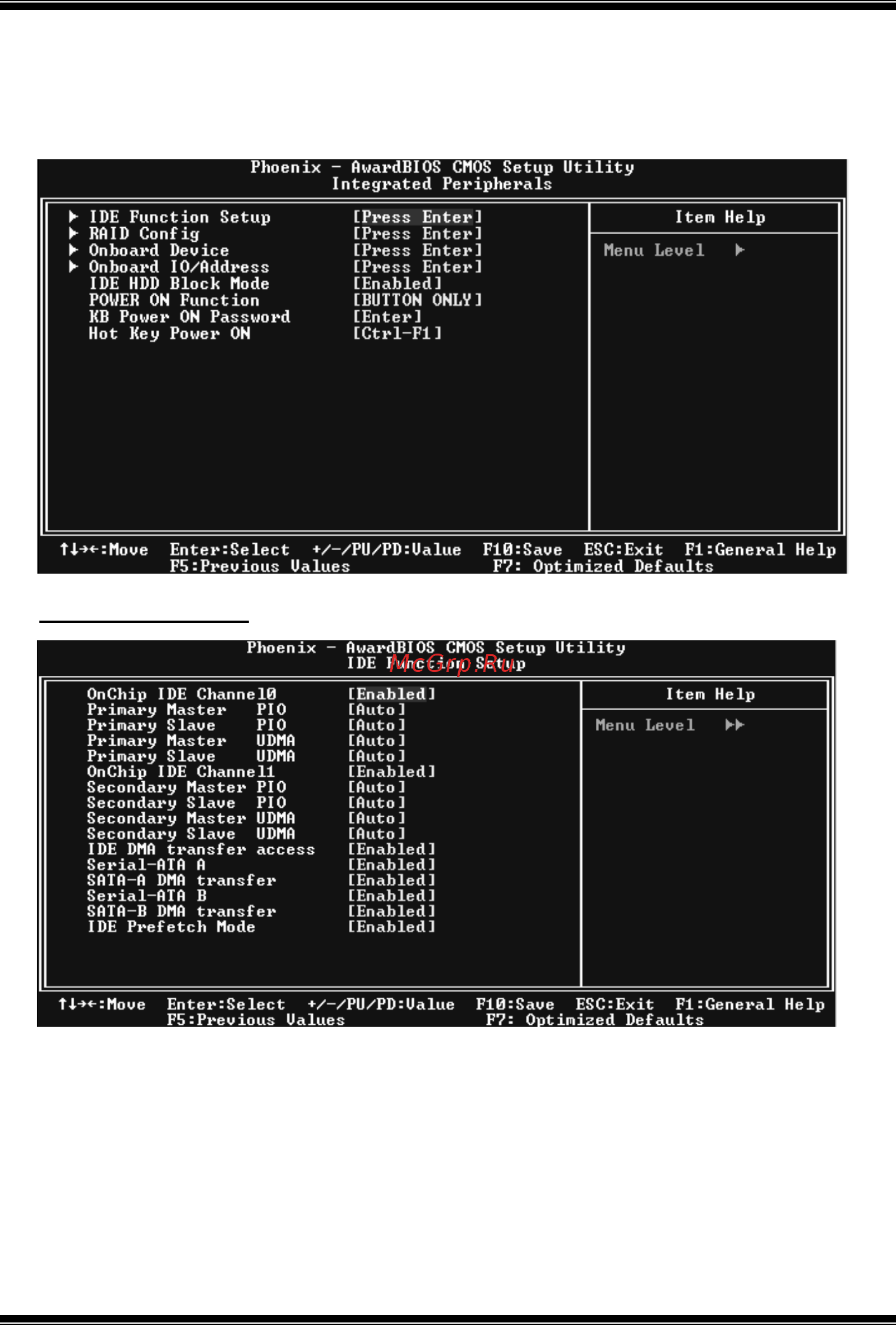

 Figure 5. Integrated Peripherals

IDE Func tion Setup

If you highlight the literal “Press Enter” next to the “IDE Function Setup” label and then press

the enter key, it will take you a submenu with the follow in g options :

OnChip IDE Channel 0/1

The motherboard chipset contains a PCI IDE interface with support for

two IDE channels. Select “Enabled” to activate the first and/or second

IDE interface. Select “Disabled” to deactivate an interface if you are

going to install a primary and/or secondary add-in IDE interface.

The Choices: Enabled (default), Disabled.
