NF4 Ultra-A9
16

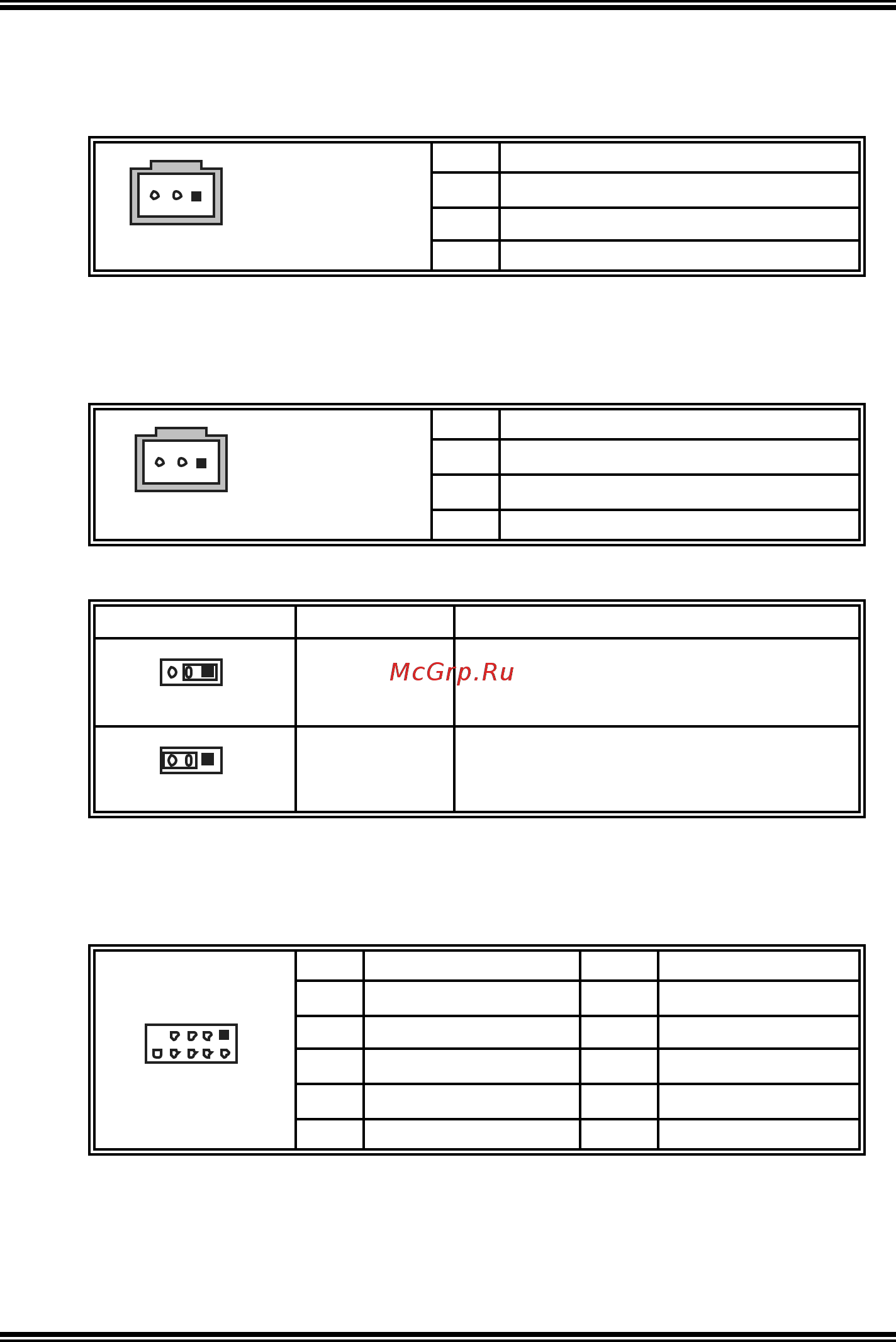

Digital Audio-out Connector: JSPDIF_O UT
This connector will allow user to connect the PCI bracket SPDIF output
header.
Pin Assignment
1 +5V
2 SPDIF OUT
13
JSPDIF_OUT
3 Ground
Digital Audio-in Connector: JSPDIF_IN1 (optional)
This connector will allow user to connect the PCI bracket SPDIF output
header.
Pin Assignment
1 +5V
2 SPDIF In
13
JSPDIF_IN1
3 Ground
Power Source Header for 1394 Chip: J1394PWR1 (optional)
Assignment Description
1
3
Pin 1-2 close
+3.3V
+3.3V f or 1394 chipset.
(Def ault)
1
3
Pin 2-3 close
+3.3V SB +3.3V SB for 1394 chipset.
Header for 1394 Firewire Port at Front Panel: J1394A1 (optional)
This connector allows user to connect the front 1394 port for digital
image devices.
Pin Assignment Pin Assignment
1 A+ 2 A-
3 Ground 4 Ground
5 B+ 6 B-
7 +12v 8 +12V
1
210
9 Key 10 Ground
