2. Main Panel

If you click the tray icon, [WarpSpeeder™] utility will be invoked.

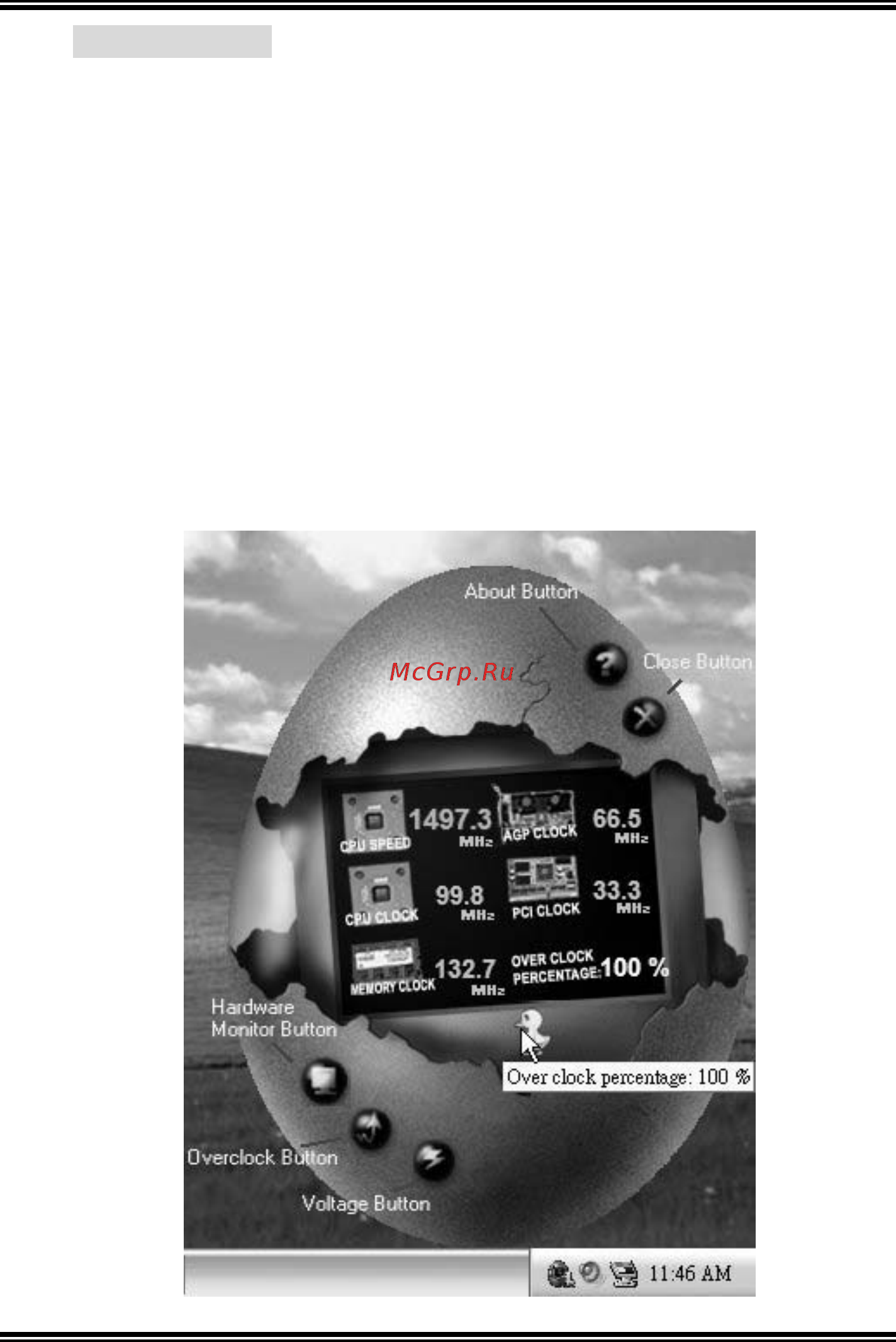

Please refer to the following figure; the utility’s first window you will

see is Main Panel.

Main Panel contains features as follows:

a. Display the CPU Speed, CPU external clock, Memory clock,

AGP clock, and PCI clock information.

b. Contains About, Voltage, Overclock, and Hardware Monitor

Buttons for invoking respective panels.

c. With a user-friendly Status Animation, it can represent 3

overclock percentage stages:

Man walking→overclock percentage from 100% ~ 110 %

Panther running→overclock percentage from 110% ~ 120%

Car racing→overclock percentage from 120% ~ above
