NF4 Ultra-A9
15

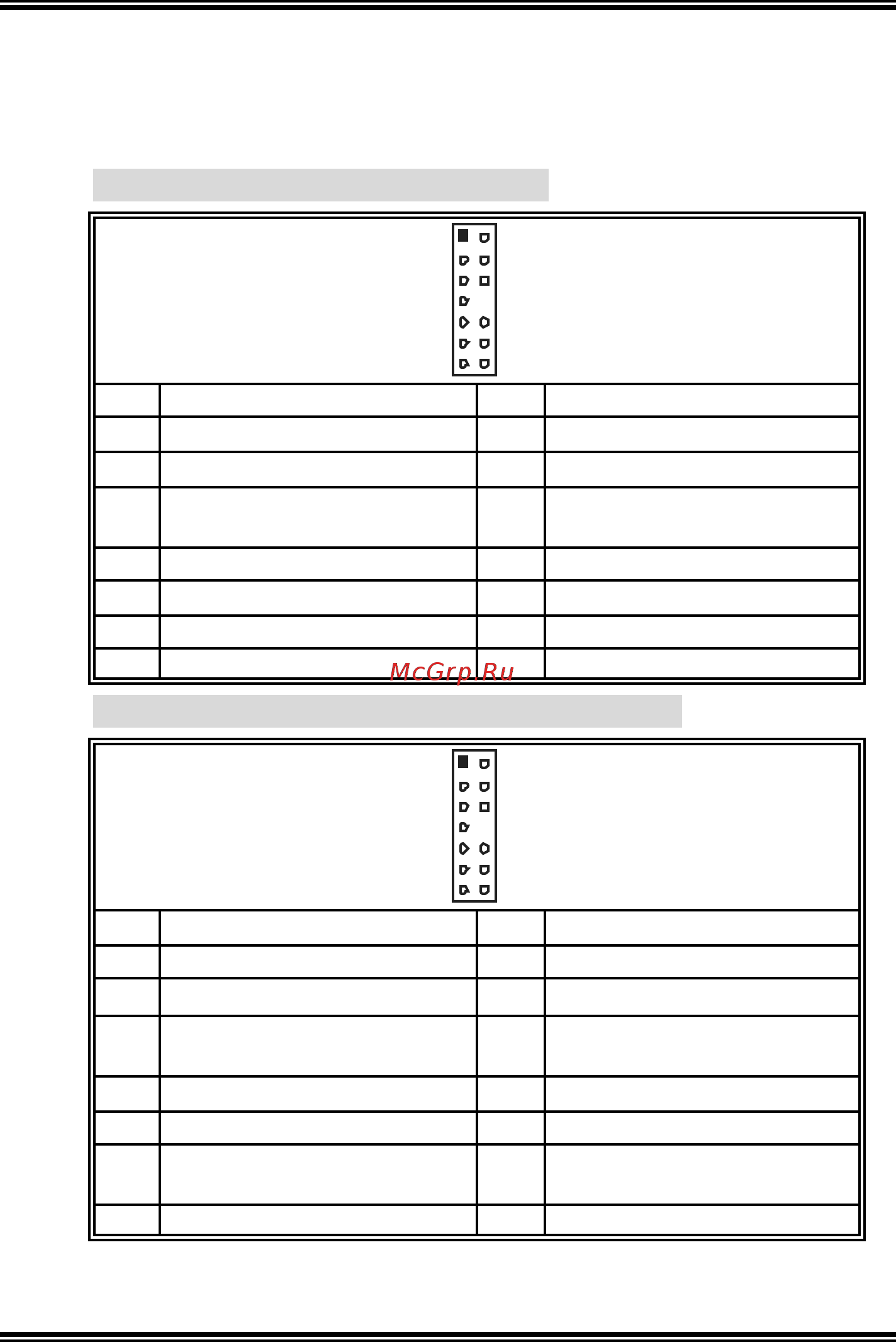

Front Panel Audio-out Header: JAUDIO2
This connector will allow user to connect with the front audio out put
headers on the PC case. It will disable the output on back panel audio
connectors.
With ALC850 Audio Sound Codec:
12
13 14
Pin Assignment Pin Assignment
1 Mic in/Stereo MIC-in R. 2 Ground
3 Stereo MIC-in L. 4 Audio power
5
Right line out/Speaker out
Right
6
Right line out/Speaker out
Right
7 Reserv ed 8 Key
9 Lef t line out/Speaker out Left 10 Lef t line out/Speaker out Left
11 Right line in 12 Right line in
13 Lef t line in 14 Lef t line in
With ALC655 Audio Sound Codec (optional):
12
13 14
Pin Assignment Pin Assignment
1 Stereo MIC-in R/ Center 2 Ground
3
Stereo MIC-in L/ Bass
4 Audio power
5
Right line out/Speaker-out
Right
6
Right line out/Speaker-out
Right
7 Reserv ed 8 Key
9 Lef t line out/Speaker-out Left 10 Lef t line out/Speaker out Left
11
Right line in/Rear speaker
Right
12
Right line in/Rear speaker
Right
13 Lef t line in/Rear speaker Left 14 Lef t line in/Rear speaker Left
