NF4 Ultra-A9
26
8 PC Health Status

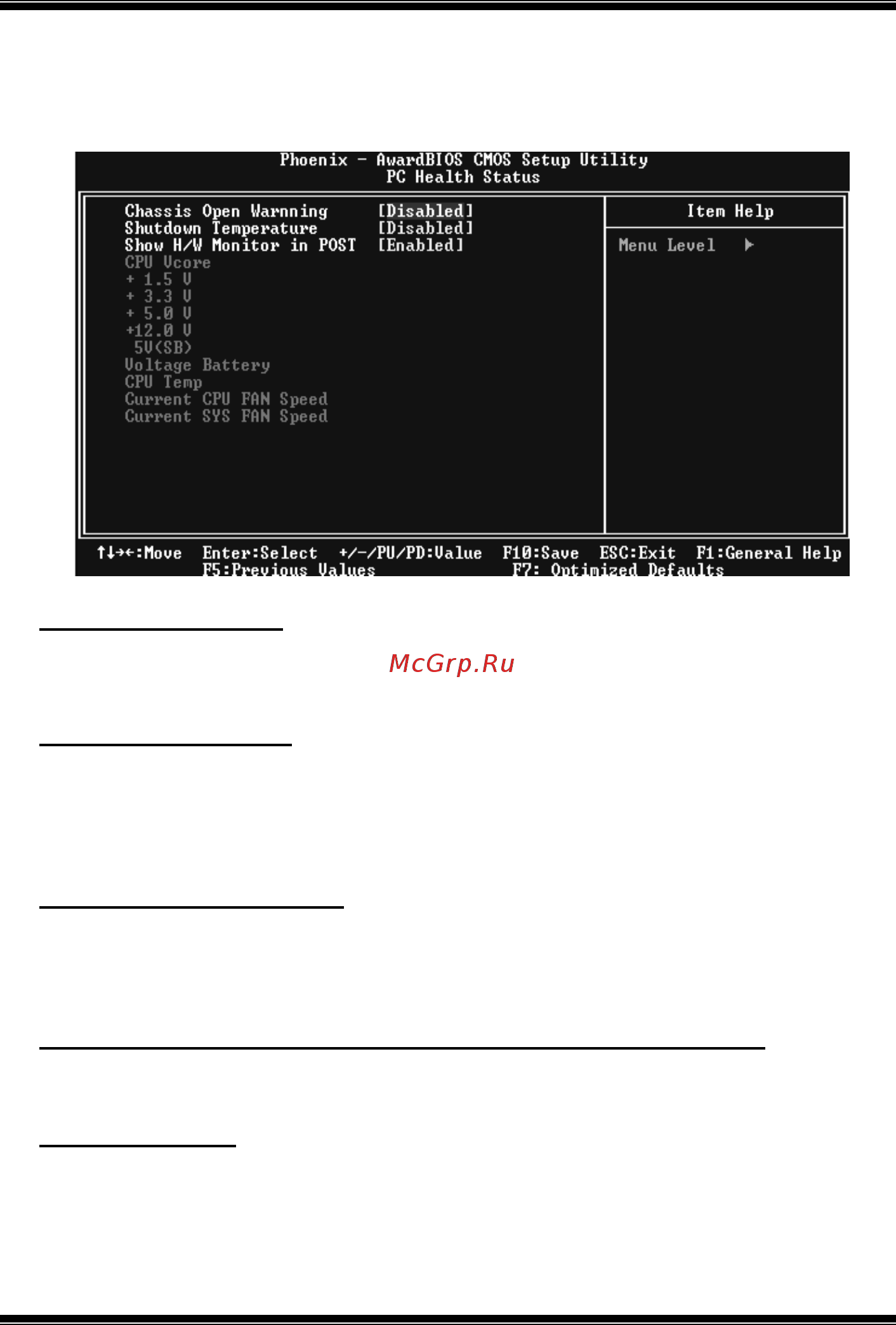

Figure 8. PC Health Status
Chassis Open Warning
This item allows you to enable or disable Chassis Open Warning beep.
The Choices: Disabled (Default), Enabled.
Shutdown Temperature
T his item allows you to set up the CPU shutdown T emperature. T his item only effective
under Windows 98 ACPI mode.
The Choices: Disabled (default), 60℃/140F, 65℃/149F, 70℃ /158F, 75℃/167F.
Show H/W Monitor in POST
If your computer contains a monitoring system, it will show PC health status during POST
stage. The item offers several delay time for you to choose.
The Choices: Enabled (default), Disabled.
CPU Vcore/ +1.5V+3.3V/ +5.0V/ +12.0V/+5V/ 5VSB/ Voltage Battery
Detect the system’s voltage status automatically.
CPU Temperature
This field displays the current temperature of the CPU.
