Planet IPX-1000 [18/79] Checking tcp ip settings windows xp

Checking TCP/IP Settings - Windows XP

Select Control Panel - Network Connection.

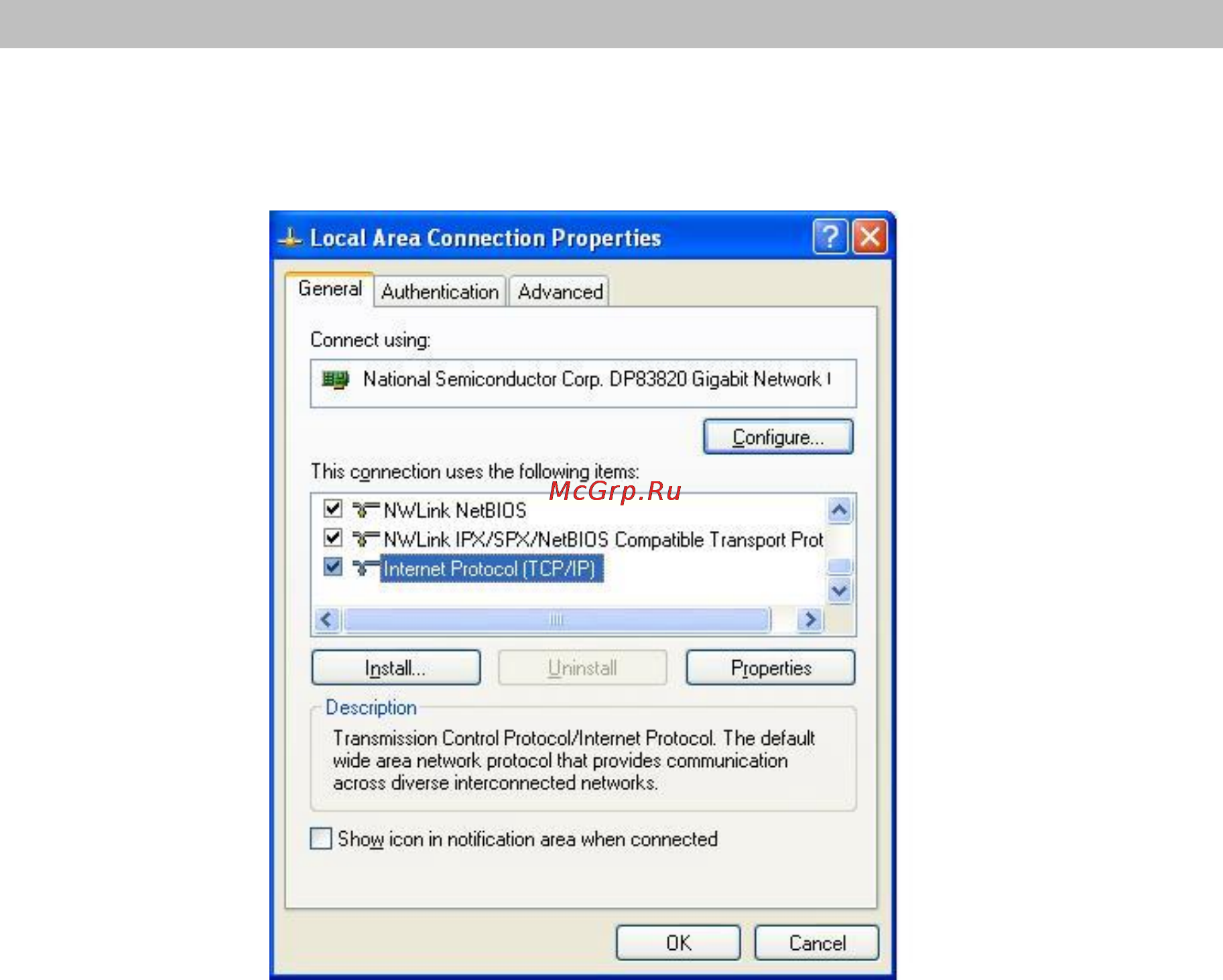

a) Right - clicking the Local Area Connection icon and select Properties. You should see a

screen like the following:

Network Configuration (Windows XP)

b) Select the TCP/IP protocol for your network card.

c) Clicking on the Properties button. You should then see a screen like the following.
