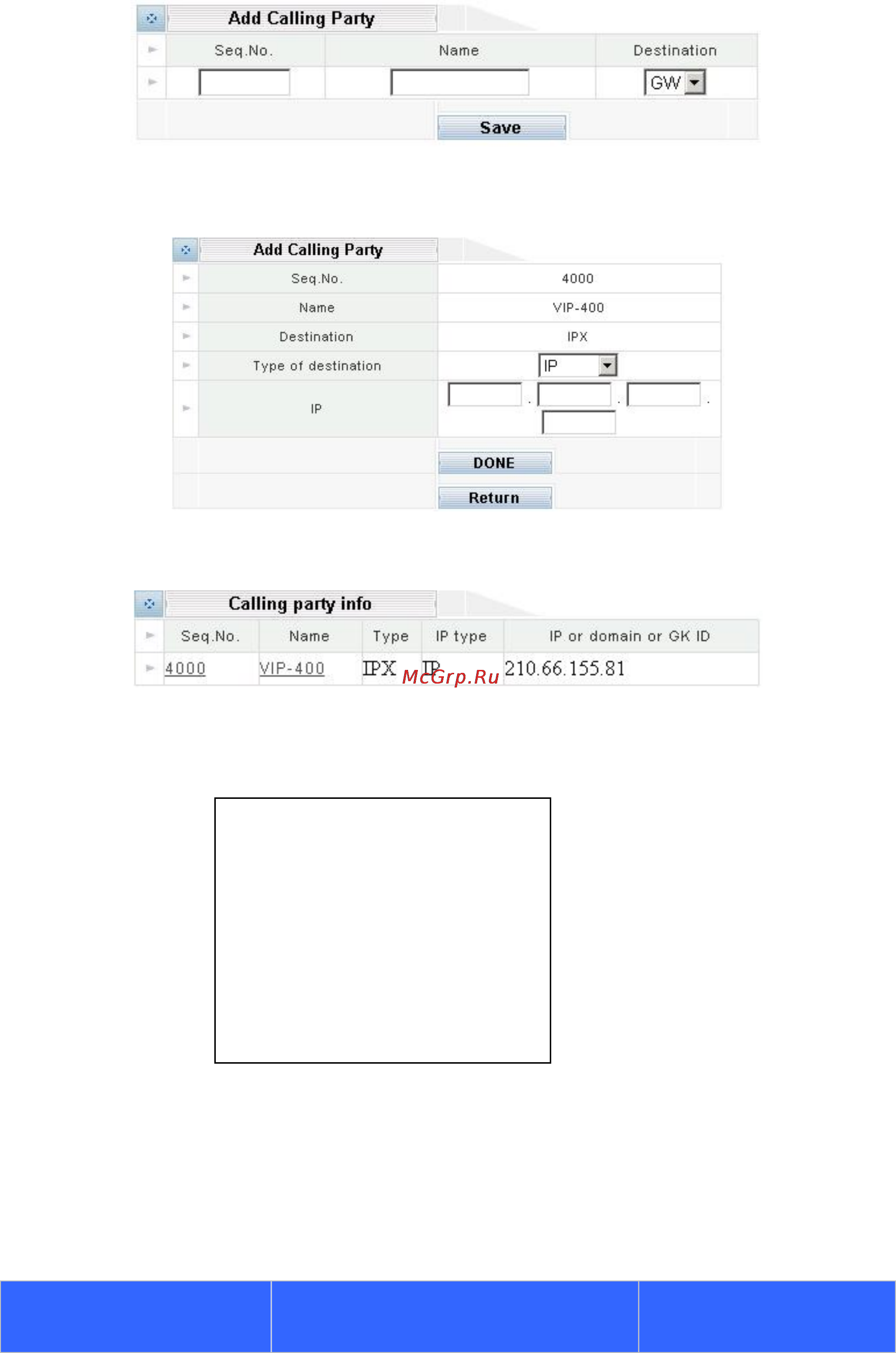

Planet IPX-1000 [65/79] Case 1

SETP 2:

Please full other VIP-400 IP Address of your IPX-1000 "IP" field.

SETP 3:

After clicking DONE button, and then the configuration screen appears below.

VIP-400 Procedure:

· Please log on VIP-400 via telnet session or console port connection, and type the following

commands:

After these configurations, please refer to following steps:

VIP-400 Usage:

Please pick up the VIP-400 telephone and dial 121 to connect to IPX-1000.

IPX-100 Usage:

Case 1: IPX-1000 phone 121 calls to Ext. 801 via VIP-400

Human operation at IPX

Caller side

Equipment operation Human operation at

VIP Receiver Side

atpm req

atpm aadd 888 1 3 1 3

atpm aadd 121 1 3 10 0

atpm hadd 10 2 10

atpm dadd 210.66.155.80

atpm done

atpm store
