Planet IPX-1000 [13/79] Checking tcp ip settings on windows nt

d. Enter your domain name in the Domain field.

e. Enter the IP address of the DNS server in the DNS Server Search Order field.

f. Clicking Add. The IP address displays in the window below the field.

Step 5 Clicking OK, and reboot machine to make the modifications effective in your PC.

Checking TCP/IP settings on Windows NT

Obtain an IP address from a DHCP Server

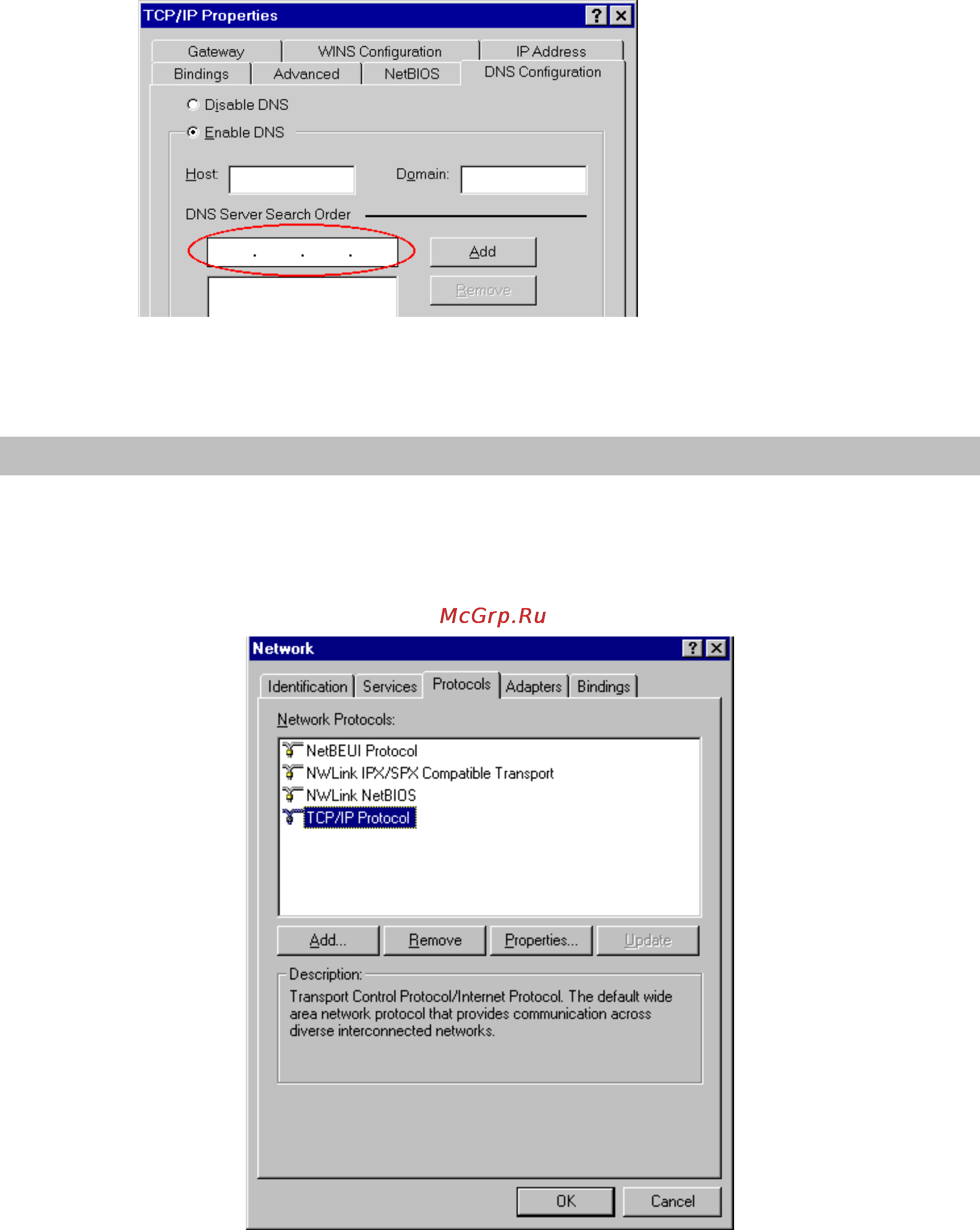

Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown

below.

Windows NT4.0 - TCP/IP

a) Clicking the Properties button to see a screen like the one below.
