2
Package Content
The contents of your product should contain the following items:
IPX-1000 unit
Power adapter
Quick Installation Guide
User’s Manual CD

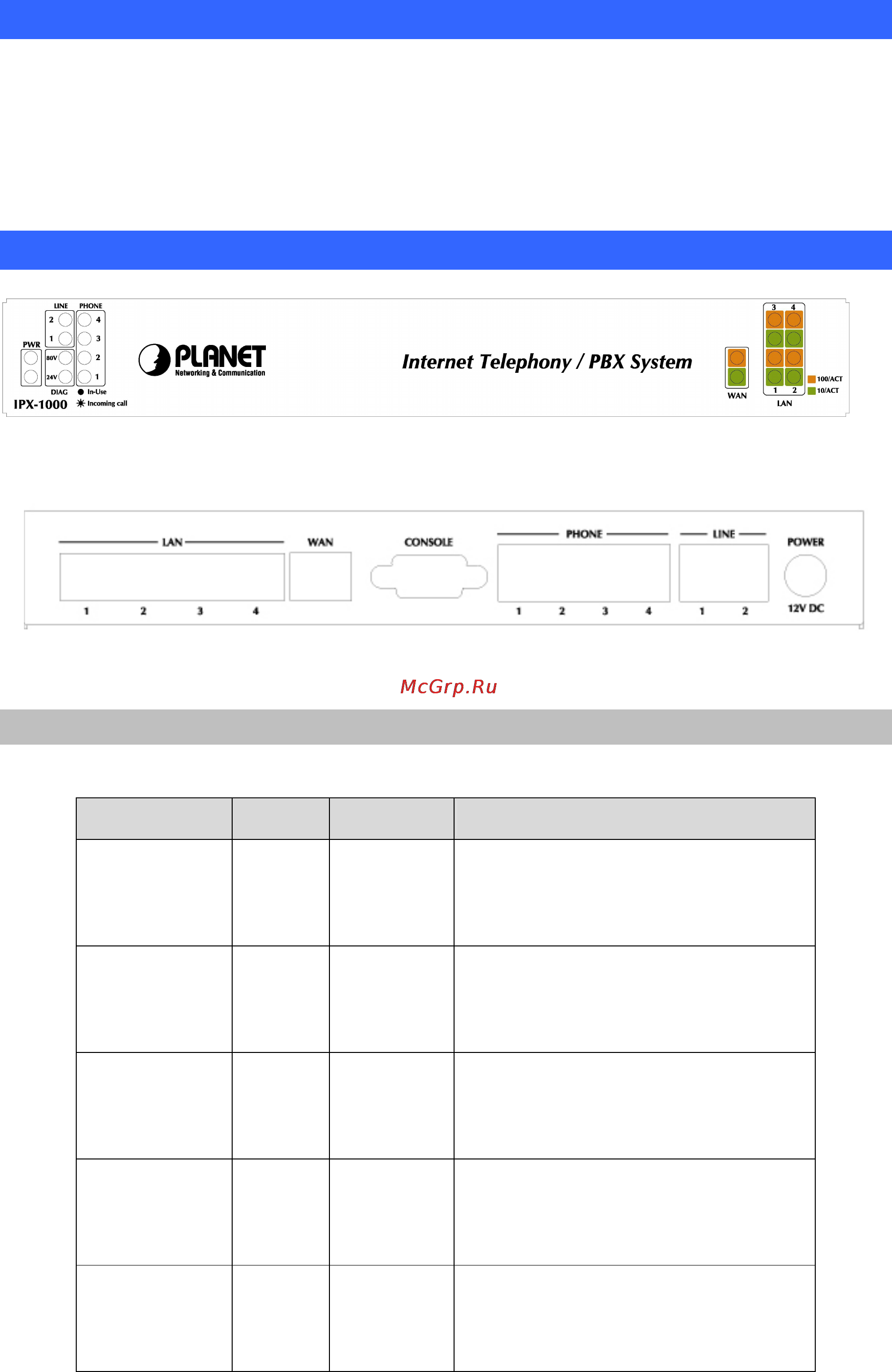

Physical Details
Front Panel of IPX-1000
Rear Panel of IPX-1000
LED Display & Button
Indicator Color Activity Indication
PWR
Ÿ 80V
Ÿ 24V
Green
Green
On
On
Power is supplied to the gateway.
LAN
Ÿ 10/ACT
Ÿ 100/ACT
Green
Orange
On
On
Data is presented on LAN.
The gateway is connected to LAN.
WAN
Ÿ 10/ACT
Ÿ 100/ACT
Green
Orange
On
On
Data is presented on WAN.
The gateway is connected to WAN.
LINE
Voice Channels
1-2
Green Off
On
Blinking
The line is idle.
The line is being used.
The line is ringing.
PHONE
Voice Channels
1-4
Green Off
On
Blinking
The line is idle.
The line is being used.
The line is ringing.
