Checking TCP/IP Settings - Windows 2000:

Select Control Panel - Network and Dial-up Connection.

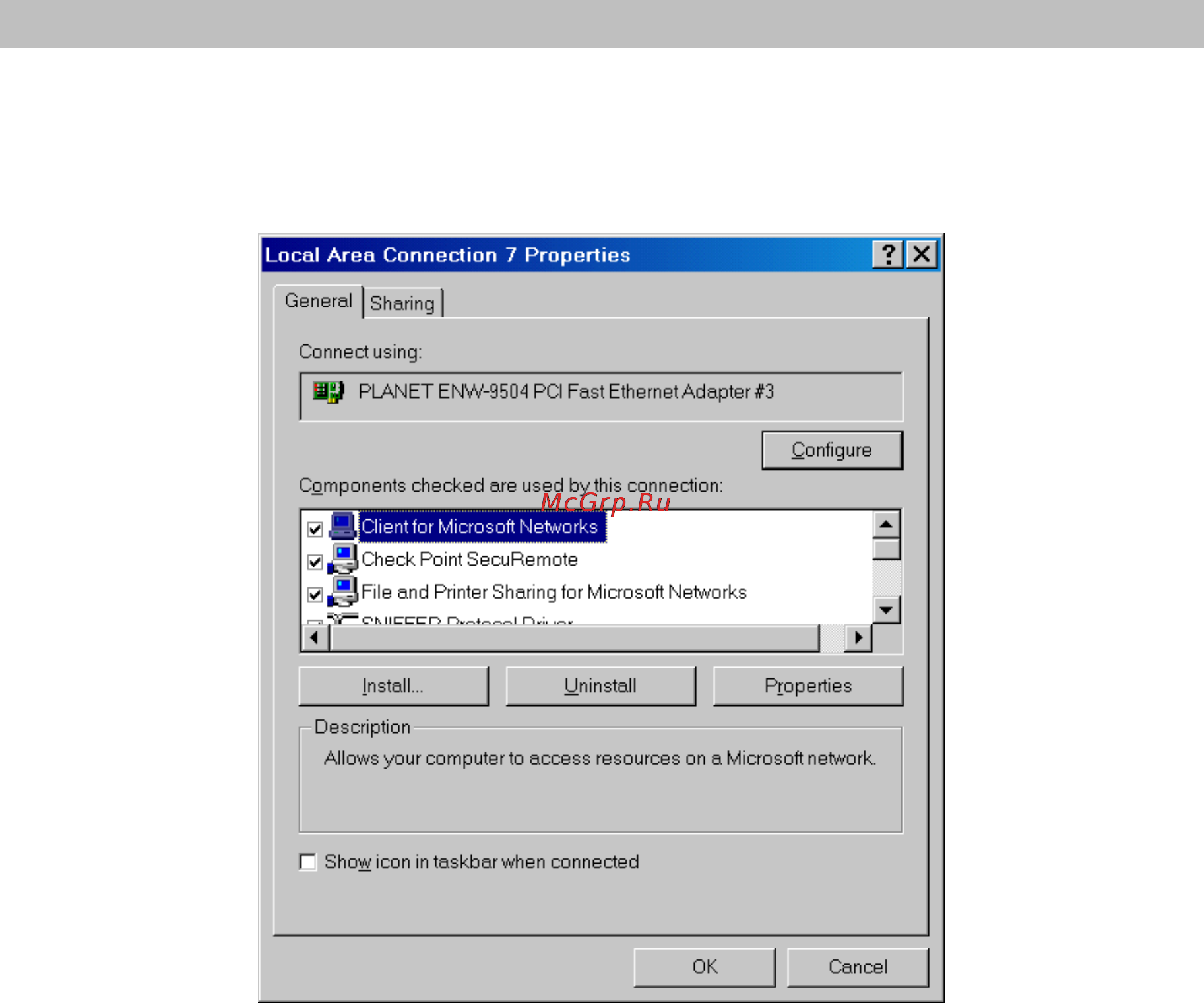

a) Right - clicking the Local Area Connection icon and select Properties. You should see a screen

like the following:

Network Configuration (Win 2000)

b) Select the TCP/IP protocol for your network card.

c) Clicking on the Properties button. You should then see a screen like the following.
