Инструкция по эксплуатации Страница: 60

Planet IPX-1000 [60/79] Ipx 1000 to ipx 1000

IPX-1000 to IPX-1000

IPX-A:

IPX-B:

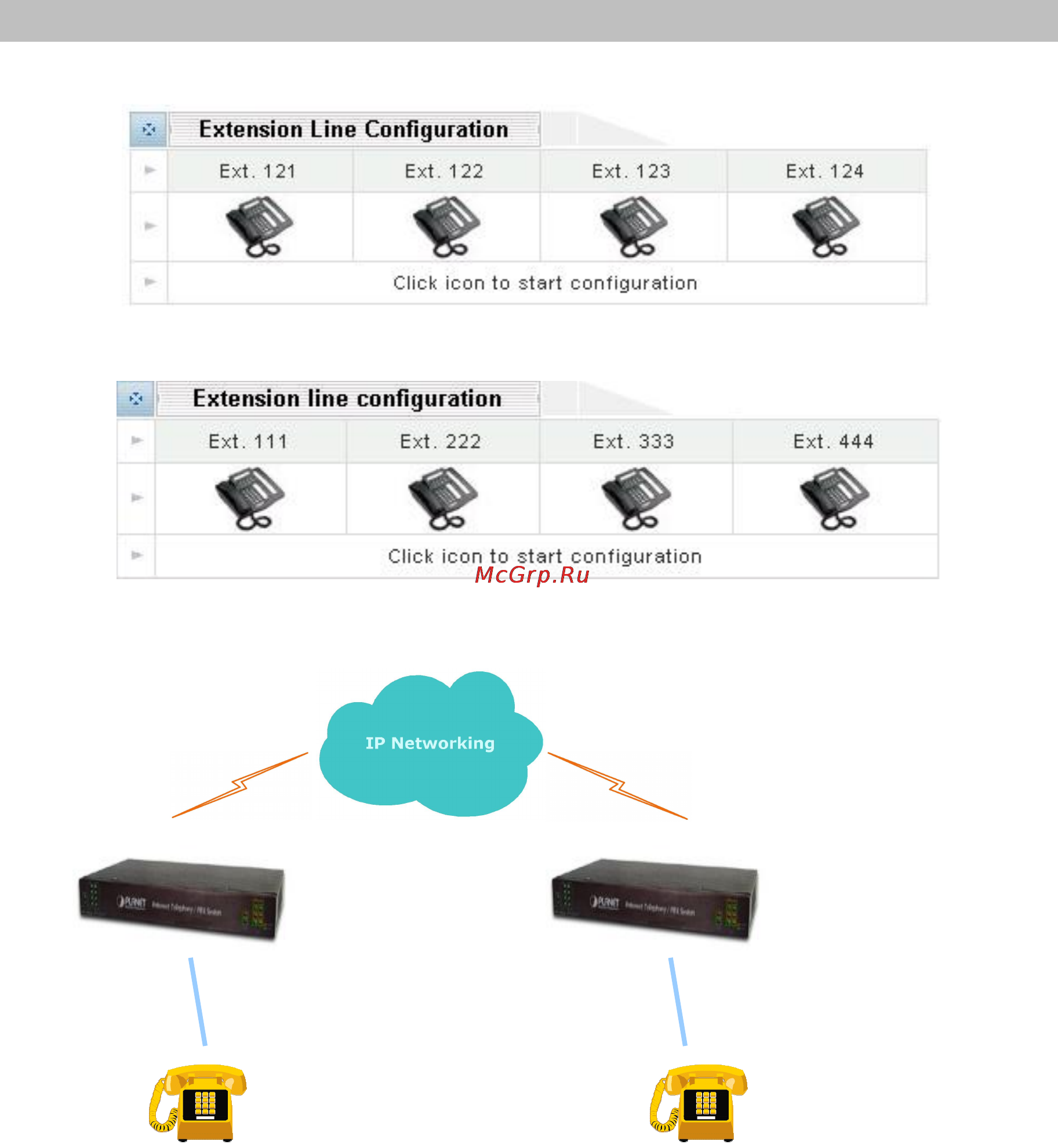

Assume both PBXs used port is port#4 connect to a phone. To call each other.

SETP 1:

Please select Calling party configuration item on the Telephone Service configuration

menu, after enter Calling party config server page, please added the Seq.No. / Name and

select IPX mode on the Add Calling party, and then the configuration screen appears

below.

IPX-B

WAN IP Address

(210.66.155.90)

IPX-A

WAN IP Address

(210.66.155.80)

Ext: 124 Ext: 444
