59
SETP 3:

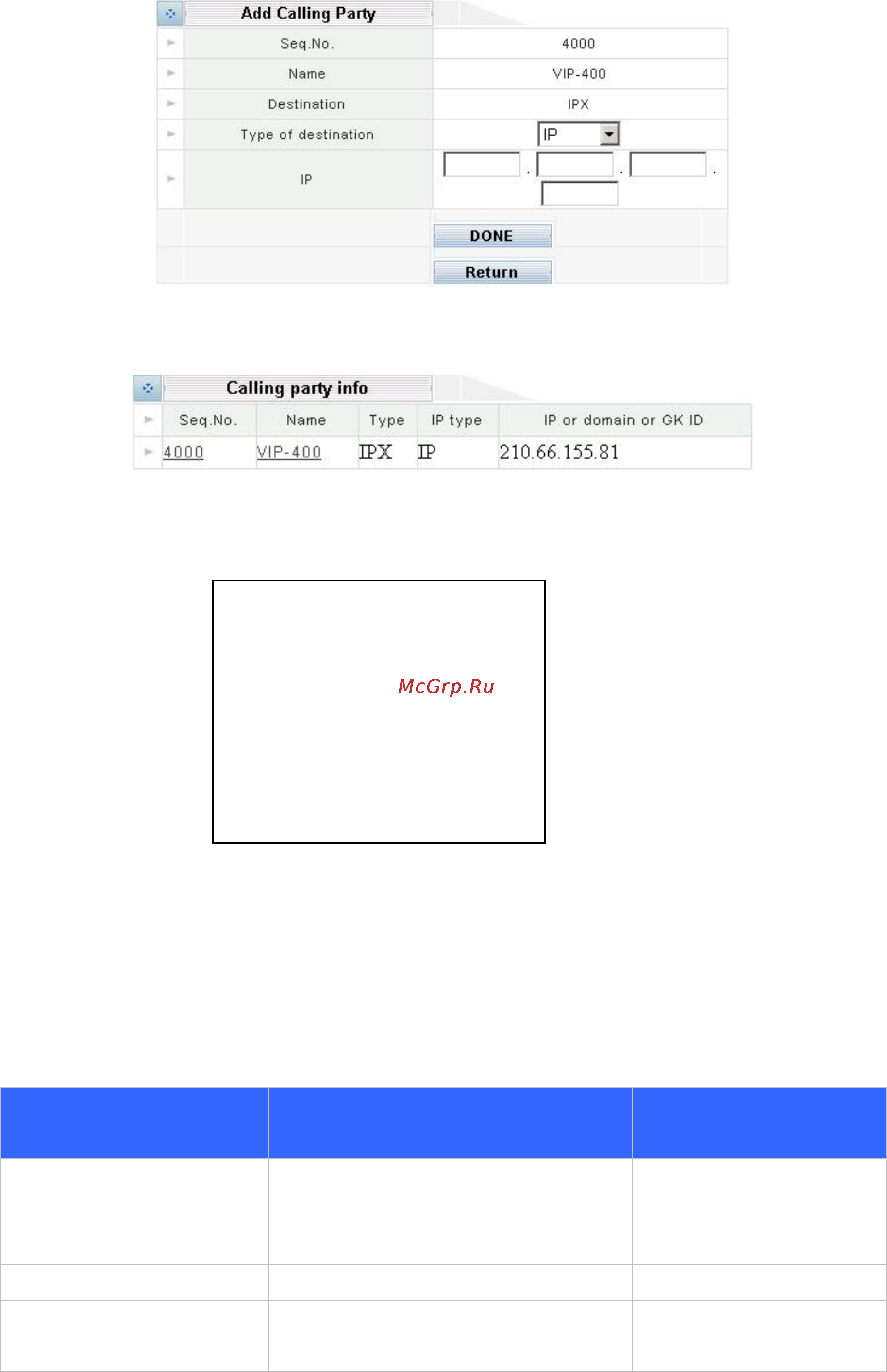

After clicking DONE button, and then the configuration screen appears below.
VIP-400 Procedure:
· Please log on VIP-400 via telnet session or console port connection, and type the following
commands:
After these configurations, please refer to following usage steps:
VIP-400 Usage:
Please pick up the VIP-400 telephone and dial 121 to connect to IPX-1000.
IPX-1000 Usage:
Case 1: IPX-1000 phone 121 calls to VIP-400 phone 5678
Human operation at IPX
Caller side
Equipment operation Human operation at
VIP Receiver Side
Pick up phone 121 1.IPX-1000 dial tone is heard.
2.the first LED will b
e at the green color in
Phone 1 of front panel.
Dial *6 1.Hear dial tone
Dial 4000 + 5678 1.Du Du is heard
2.IPX-1000 communication is going
atpm req
atpm aadd 5678 1 4 4 4
atpm aadd 121 1 3 10 0
atpm hadd 10 2 10
atpm dadd 210.66.55.80
atpm done
atpm store
