Ring back tone is heard 1.The first LED is lighting in LINE 4 of

VIP-400 front panel.

Phone 5678 is ringing

IPX-1000 to VIP-FXO

IPX-1000 Procedure:

SETP 1:

Please select Calling party configuration item on the Telephone Service configuration

menu, after enter Calling party config server page, please added the Seq.No. / Name and

select GW mode on the Add Calling Party, and then the configuration screen appears

below.

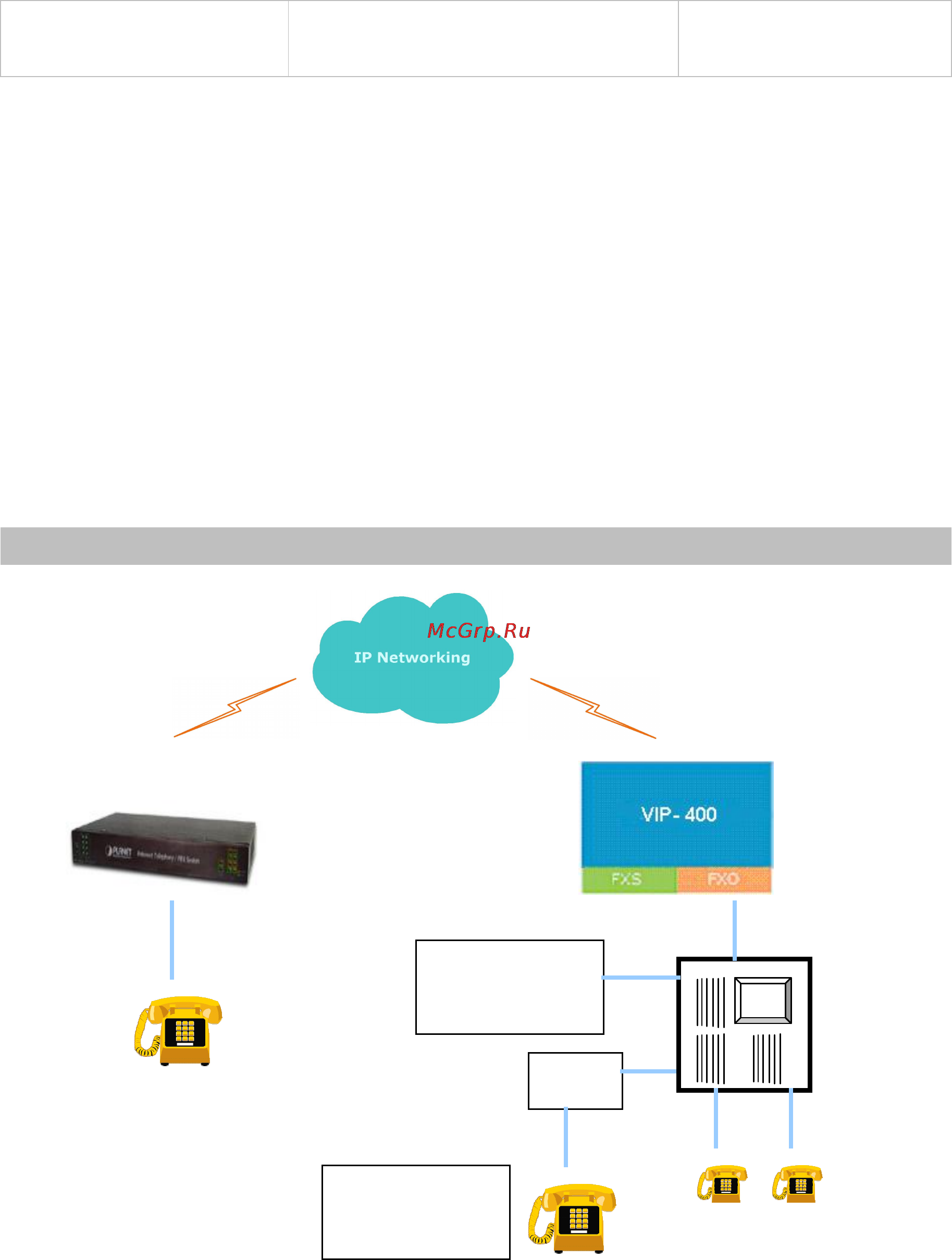

VIP-series

IP Address

(210.66.155.81)

IPX-1000

WAN IP Address

(210.66.155.80)

Ext: 121

PSTN

Phone Number:

(02) 12345678

FXO: 888

“ 0”

PBX Number:

(02) 87654321

801 802
