34
Actual upload BW
From the drop down list, select the actual upload bandwidth
(upload speed). In
some cases the actual bandwidth may be smaller than what your ISP claims.
Select the closest value based on your real life experience instead of what
your ISP claims.
Actual download BW
From the drop down list, select the actual download bandwidth (download
speed). In some cases this bandwidth may be smaller than what your ISP
claims. Select the closest value based on your real life experience instead of
what your ISP claims.
DONE
Clicking on the DONE button to apply the changes.
Advanced QoS config
IPX-1000 provides two standard rules: one for H323 (IP phone) and the other for FTP. Usually you
want to guarantee a minimum bandwidth for H323 in order to have an acceptable IP phone quality. And
you may want to limit the bandwidth for FTP so the network will not perform poorly when someone is
uploading or downloading a large file. Note that if “-1” is entered into any BW (bandwidth) field, it means
that no QoS is applied to that particular bandwidth. For example, if all four BW fields are entered “-1” for
FTP, it means that FTP is not regulated by QoS at all (this is generally not a good idea).
Delete:
To delete a user rule, simply select its number from the drop down list and clicking on the
DELETE button.
Add QoS policy:

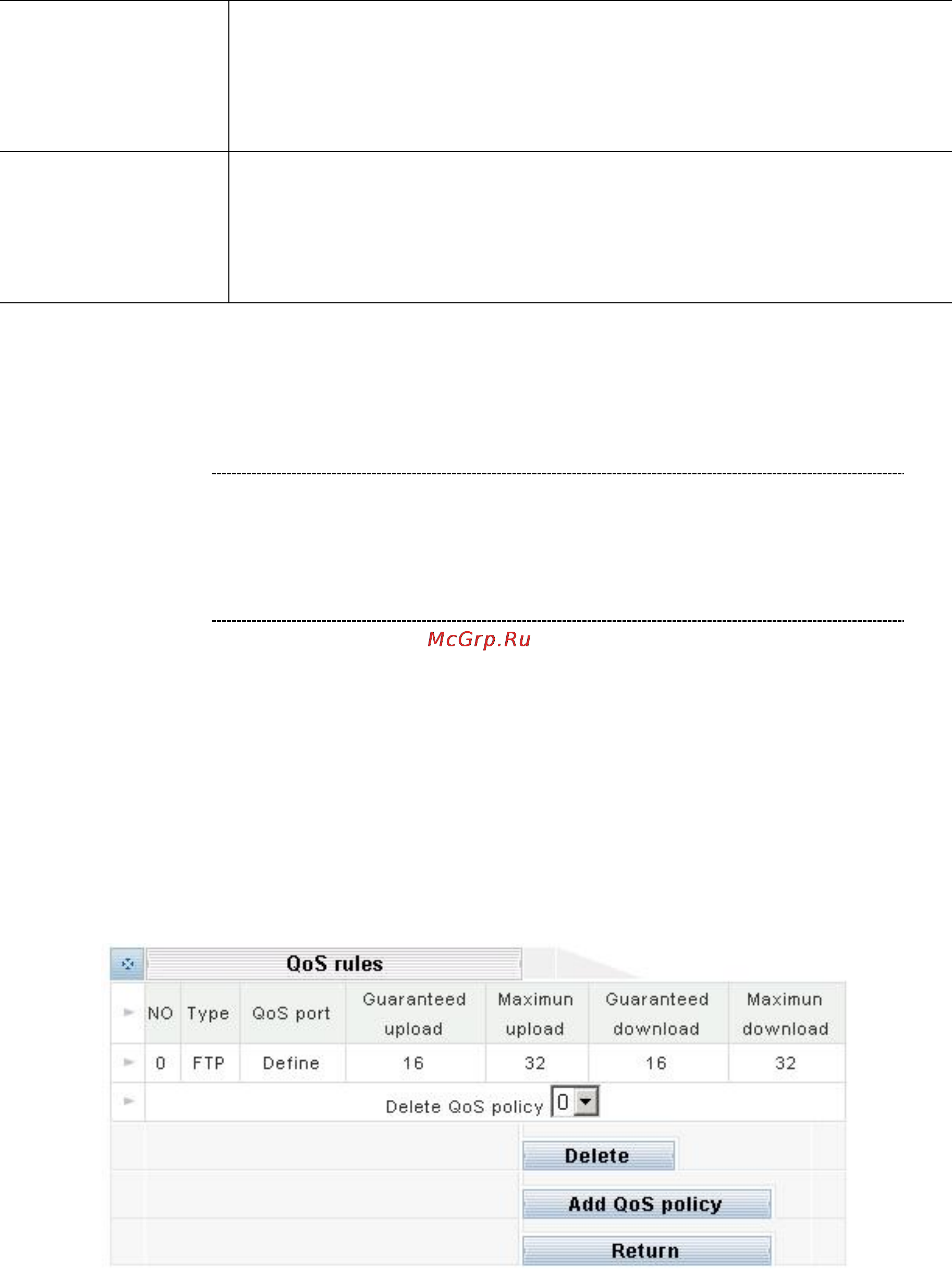

Please clicking Add QoS policy button to add a User-defined QoS policy:
ë
Note
l The unit for QoS configuration is kbit/sec
l Actual BW > Maximum BW > Guaranteed BW
l Actual BW > Upload and Download Guaranteed BW
