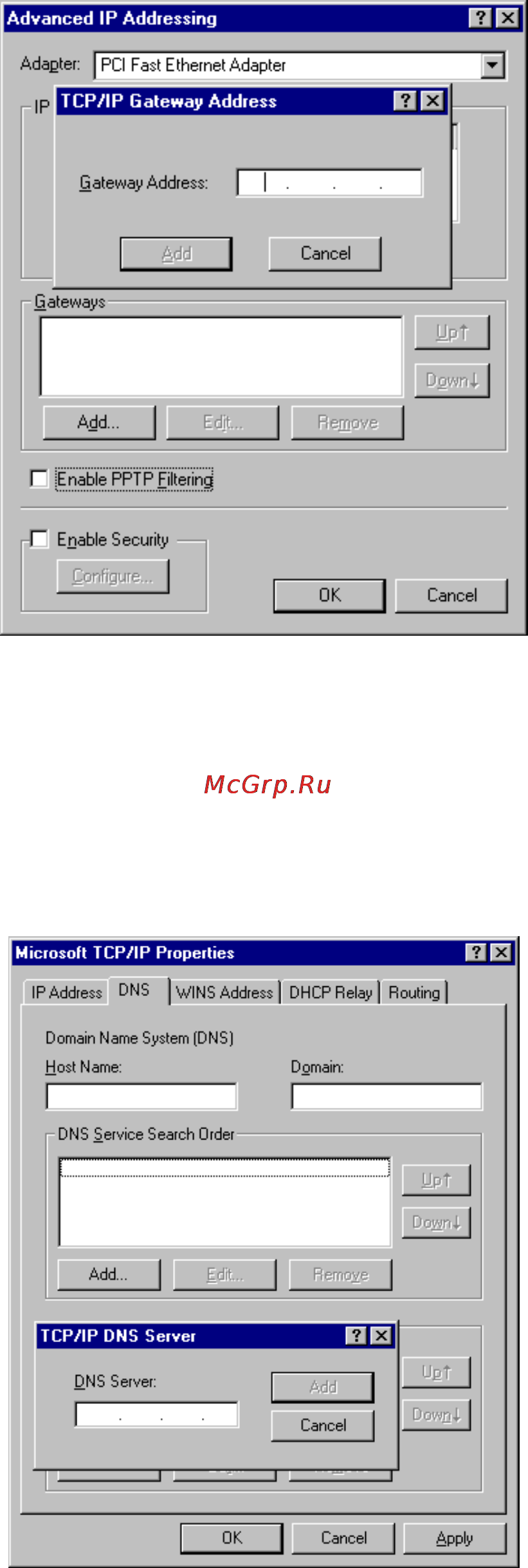

Windows NT4.0 - Add Gateway

b) The DNS should be set to the address provided by your ISP, as follows:

· Clicking the DNS tab.

· On the DNS screen, shown below, clicking the Add button (under DNS Service Search Order), and

enter the DNS provided by your ISP.

Windows NT4.0 – DNS
