Windows NT4.0 - IP Address

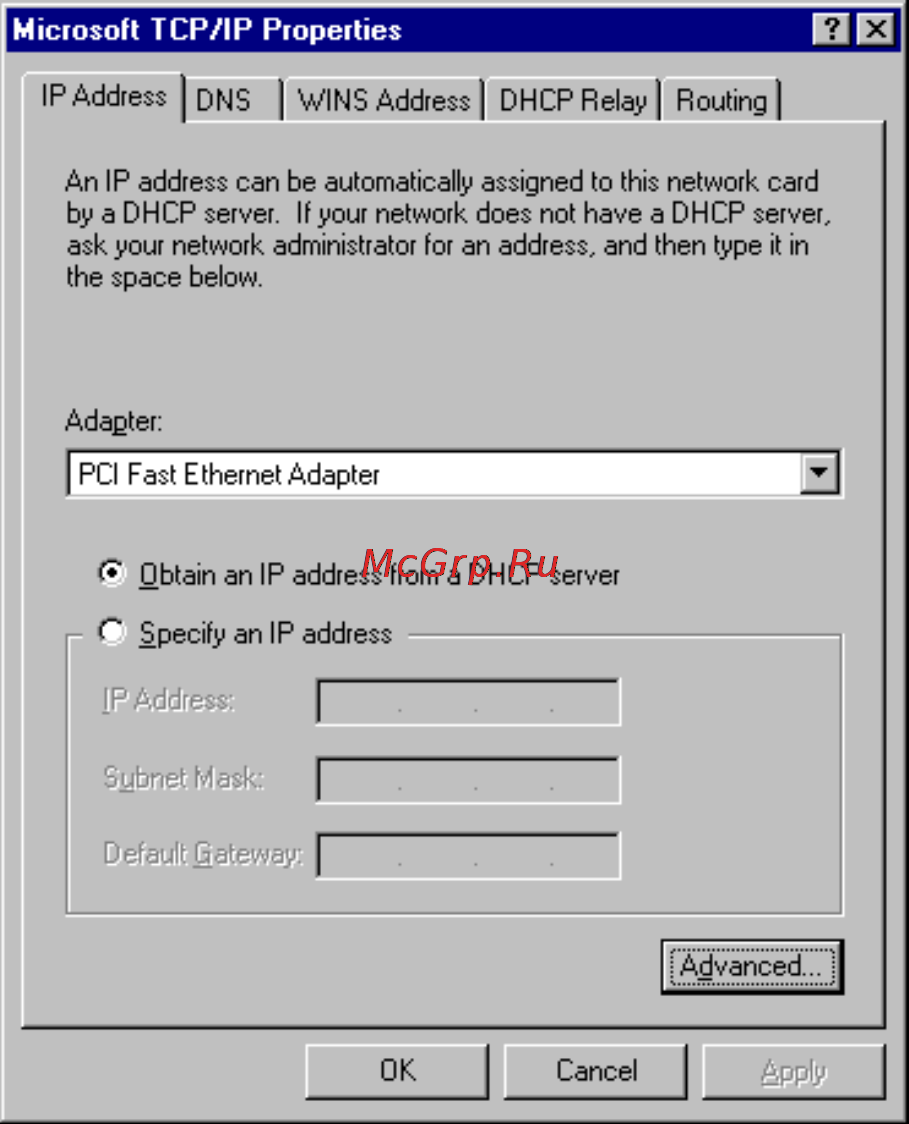

b) Select the network card for your LAN.

c) Select the appropriate radio button - Obtain an IP address from a DHCP Server or

Specify an IP Address, as explained.

Specify an IP Address

If your PC is already configured with an IP address, check with your network administrator before

making the following changes.

a) The Default Gateway must be set to match your network environment. To set this:

· Clicking the Advanced button on the screen above.

· On the following screen, clicking the Add button in the Gateways panel, and enter gateway IP

address, as shown below.

· If necessary, use the Up button to make the inserted on the first entry in the Gateways list.
