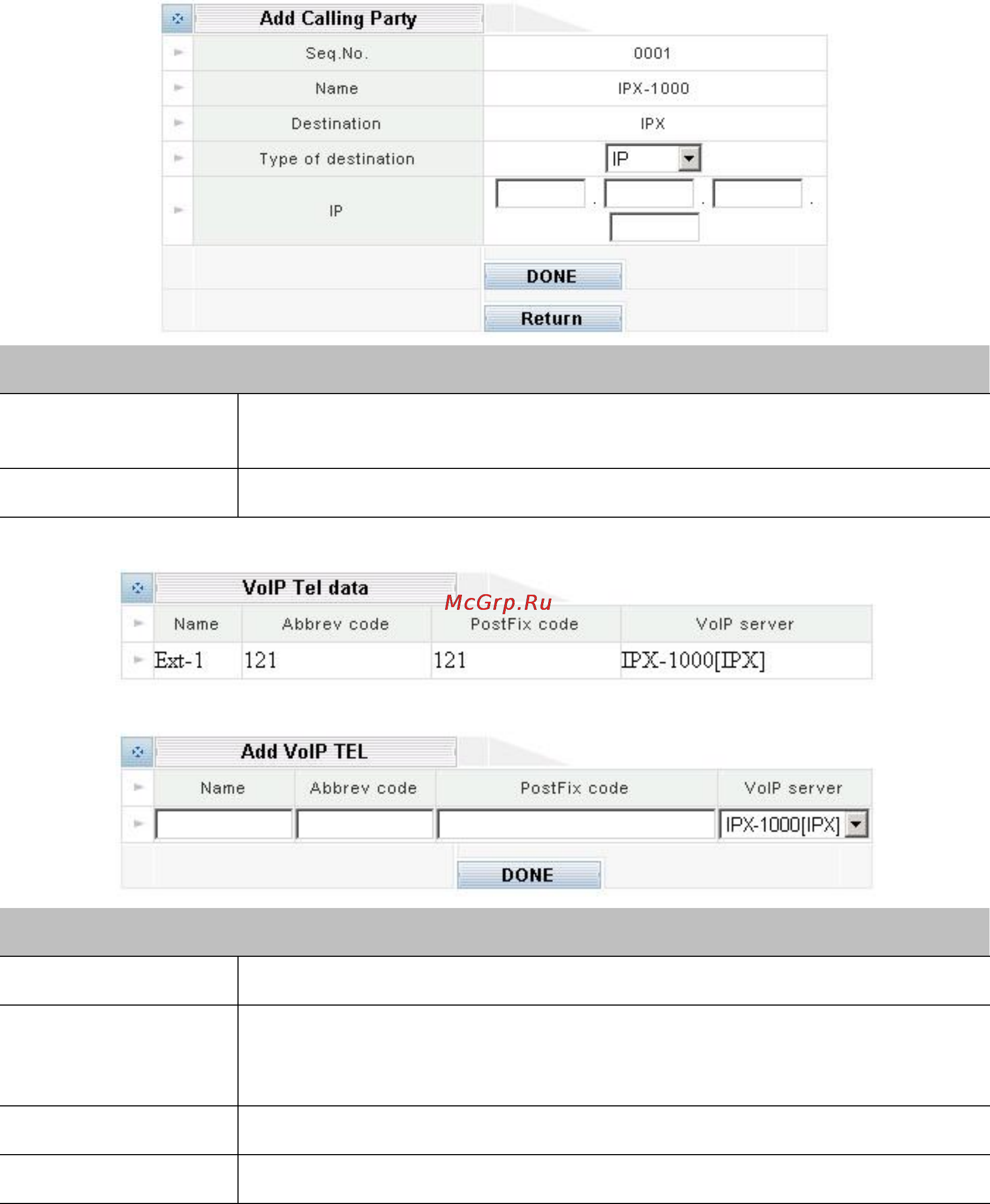

Parameter Description

Type of destination

From the drop down list, please select a type

to use when communicating with

this destination.

IP/Domain Please insert the IP address or Domain name

Please click the Seq.No or Name link to enter into VoIP Tel data

Parameter Description

Name Please insert the username of the remote extension

Abbrev code

Please insert the number you dial (

That code is better defined as

same as remote extension number and different from local extension

number)

PostFix code Please insert the number of the remote extension

VoIP server Please selection the destination device.
