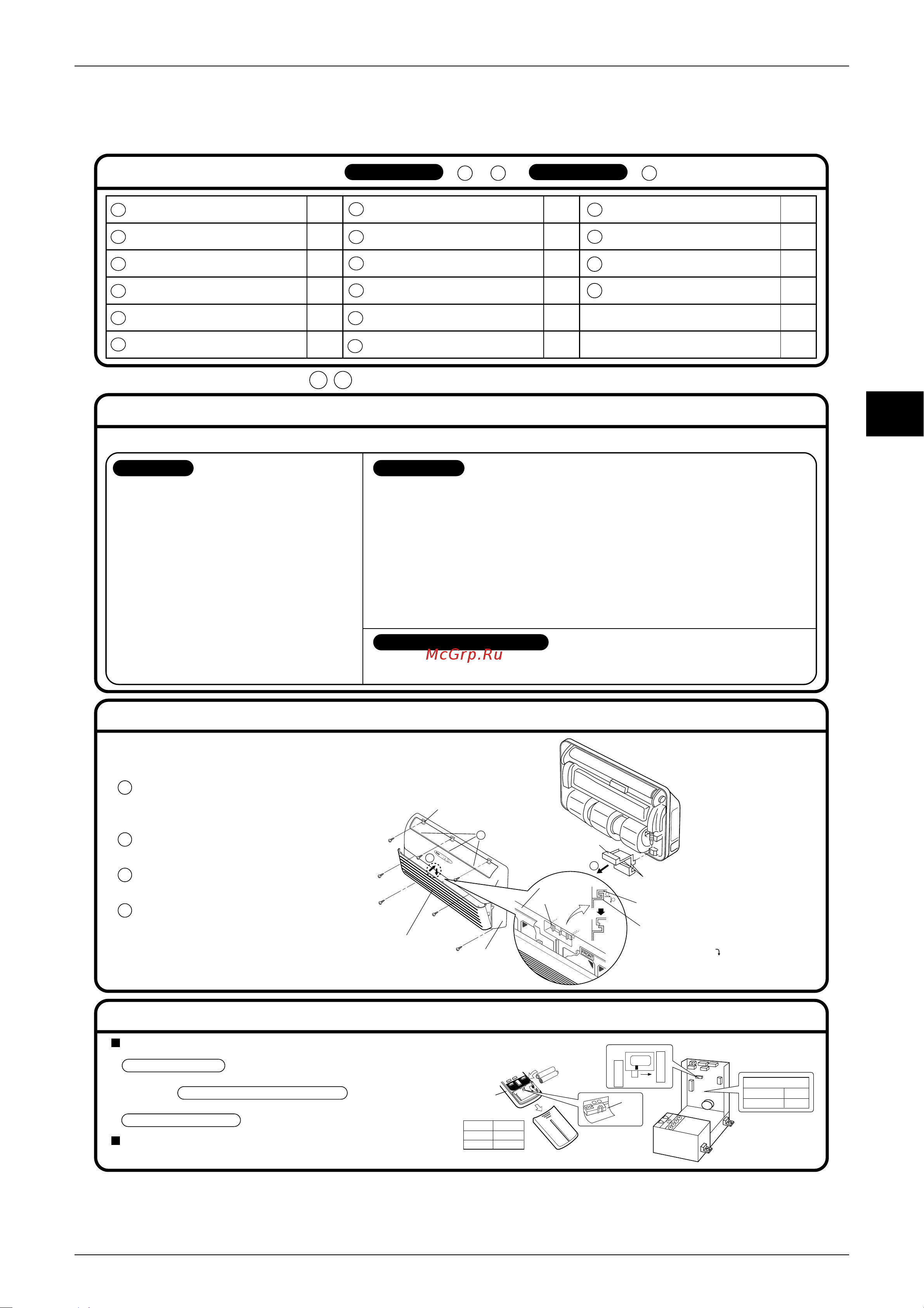

ED12-321A Indoor Units
Installation Manual 163
4
2.4 Floor / Ceiling Suspended Dual Type FLK(X) 25/35/50/60 A
O
N
O
F
F
CHOOSING A SITE
The indoor unit should be sited in a place where:
• the restrictions on installation specified in the
indoor unit installation drawings are met,
• both air intake and exhaust have clear paths met,
• the unit is not in the path of direct sunlight,
• the unit is away from the source of heat or steam,
• there is no source of machine oil vapour (this may
shorten indoor unit life),
• cool air is circulated throughout the room,
• the unit is away from electronic ignition type
fluorescent lamps (inverter or rapid start type) as
they may shorten the remote control range, and
• the unit is at least 1 metre away from any
television or radio set (unit may cause
interference with the picture or sound).
• Before choosing the installation site, obtain user approval.
BEFORE INSTALLING THE INDOOR UNIT
INSTALLATION TIPS
Indoor unit
The outdoor unit should be sited in a place where:
• the restrictions on installation specified in the outdoor unit installation diagram are met,
• drain water causes no trouble or problem in particular,
• both air intake and exhaust have clear paths of air (they should be free of snow in snowy
districts),
• the unit is in a clear path of air but not directly exposed to rain, strong winds, or direct sunlight,
• there is no fear of inflammable gas leakage,
• the unit is no directly exposed to salt, sulfidized gases, or machine oil vapour (they may
shorten outdoor unit life).
• operation noise or hot air flow does not cause trouble to neighbours, and
• the unit is at least 3 metres away from any television or radio antenna.
Outdoor unit
• Turn on all the fluorescent lamps in the room, if any, and find the site where remote control
signals are properly received by the indoor unit (within 4 metres).
Wireless Remote Controller
ACCESSORIES
A
Mounting plate
1
C
Air purifying filter
1
D
Wireless remote controller
1
E
Remote controller holder
1
2
G
AAA dry-cell batteries
H
Photocatalytic deodorizing filter
2
K
Operation manual
2
1
1
2
2
L
Installation manuals
N
Heat insulation tube
(Refrigerant pipe)
1
P
Heat insulation tube
(Extension auxiliary pipe)
4
1
M
Extension auxiliary pipe
B
Mounting plate fixing screws
M4 X 25L
10
F
Fixing screws for remote controller
holder M3 X 20L
J
Side covers
1
• Perform the following before
installing the indoor unit.
1 Open the air inlet grille and the
screw cover, and remove the
seven screws.
2 Release the claws in the 3 places
indicated.
3 Release the center hook and
remove the front panel.
4 Release the claws in the 2 places
indicated and remove the electric
component cover.
• When two indoor units installed in one room, the two wireless remote controllers can be set for different addresses.
PCB in the indoor unit
• Remove the electric component cover.
(Refer to the BEFORE INSTALLING THE INDOOR UNIT .)
•
Cut the jumper JA on PCB.
Wireless remote controller
•
Cut the jumper J4
• Slide the switch(SW2)to “CEILING” in case of installing on the ceiling.
2 Claw
3
1
2
Air inlet grille
Screw cover
Front panel
Front panel hook
Drain pan hook
Drain pan hook
To release the
center hook
Front panel
Claw
Electric
component
cover
4
* Move the front panel in the
direction of the arrow to
remove it from the drain pan
hook.
How to the different addresses.
In case of Ceiling suspended use.
R
Drain plug (Heat pump-Models)
Q
Binding bands
ADDRESS JA
EXIST 1
CUT 2
J4
ADDRESS
EXIST 1
CUT 2
J4
Wireless
remote
controller
CEILING
FLOOR
SW2
• The extension auxiliary pipe M P is not included for FLX25, FLK25.
Indoor unit
A Q
~,
Outdoor unit
R
