Indoor Units ED12-321A
166 Installation Manual
•
Install the suspension bolt so that it can support the indoor unit; adjust distance to ceiling before
installation.
•
Mount the indoor unit according to the
installation drawings and tighten it
securely with M10 nut. (4 places)
•
After mounting the indoor unit on the
ceiling, install each part as shown in the
diagram on the right.

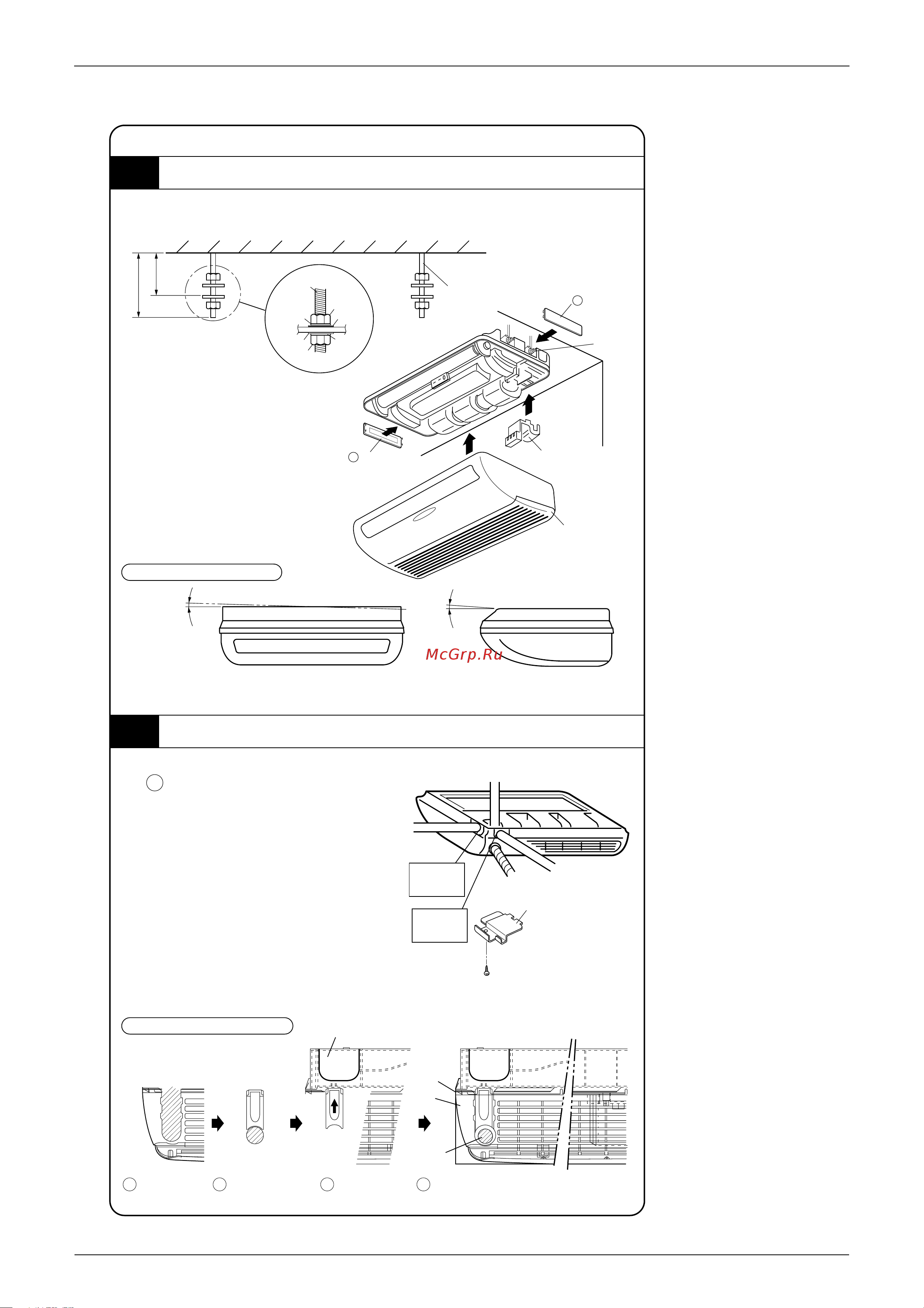

CEILING MOUNTING
INSTALLING THE SUSPENSION BOLT
1
INSTALLING INDOOR UNIT
2
Ceiling
Suspension
bolt
Spring
washer
Spring
washer
Nut (M10)
Nut (M10)
Washer
Washer
Suspension bolt
(M10)
less than 1
less than 1
M10 nut
Electric component cover
(2 claws)
Front grille
40 ~ 45
25 ~ 30
Incline condition for installation
Right-side
piping
Right-back piping
Drain hose
Bottom frame cover
Note:
For upper right-side piping,
remove the bottom frame
cover before installing the
indoor unit.
Upper right-side piping
Cut away here
for right-side
piping
Cut away here
for right-back
piping
(1) Connect the extension auxiliary pipe
( M , supplied) to the local piping. (See WALL
MOUNTING 1. INSTALLATION) (Applies to
both ceiling mounting and wall mounting units.)
(2) Prepare the local piping at the connection
point for the drain pipe, as shown in the
installation drawings.
Note:
Be sure to place the drain hose as shown in the
diagram on the right, in a downward sloping
direction.
(3) Connect the drain hose to the local drain pipe.
Position the interconnecting wire in the same
direction as the piping.
For determining the position of the drain
hose, perform the following procedures.
1 Cut out with
a nipper.
J Side cover
(6 claws)
J Side cover
Feed-through portion of drain hose
Bottom frame
Bottom
frame claw
Panel
Drain hose
2 Cut out the drain
hose portion.
3 Screw it to the
bottom frame.
4 After determining the position of the drain hose,
hook the panel to the bottom frame claws.
