Outdoor Units ED12-321A
176 Installation Manual

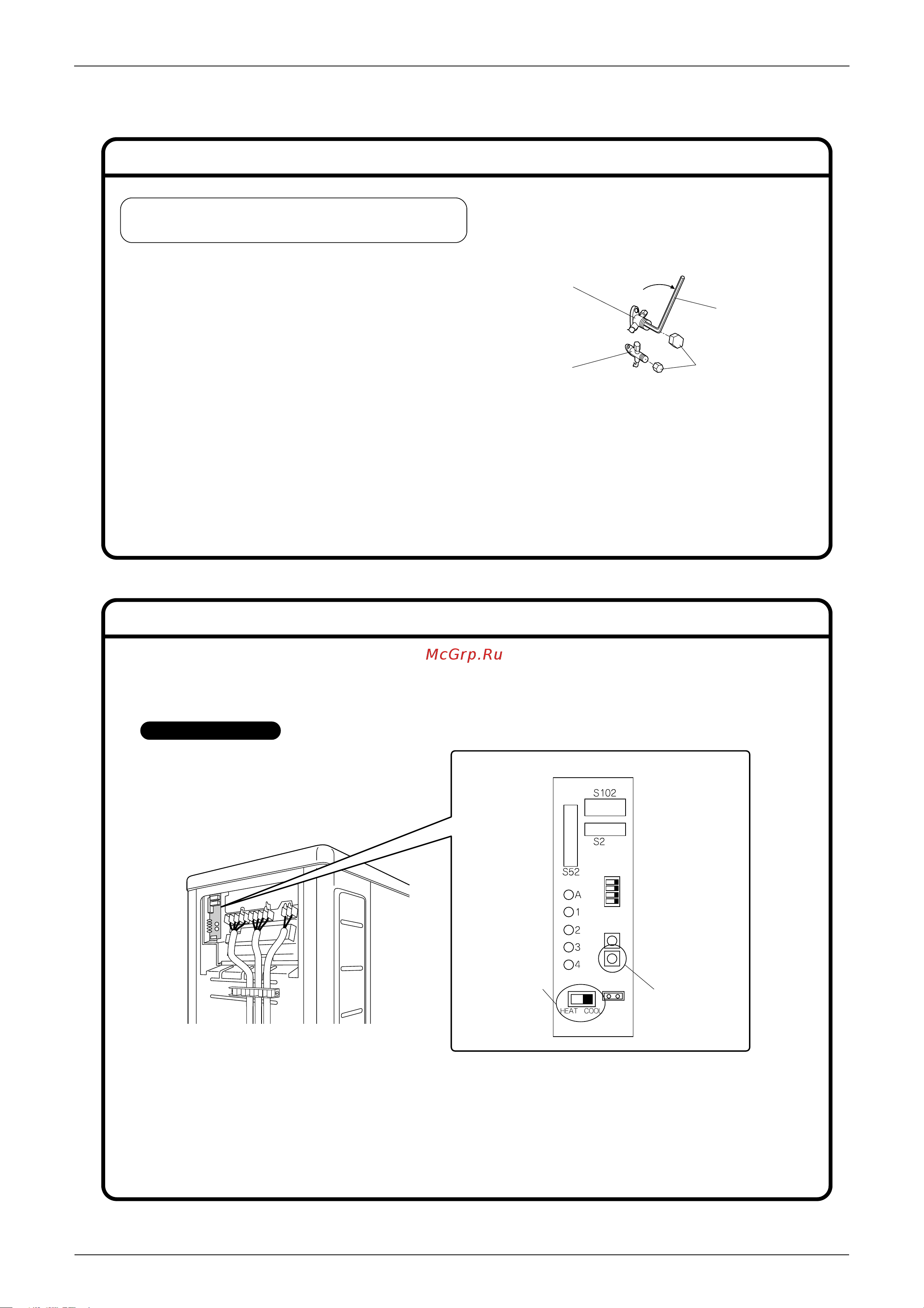

Pump Down Operation
Forced operation
Gas shut-off valve
Close
Hexagonal
wrench
Liquid shut-off
valve
Valve lid
Service P-board
Operation Mode
switch (SW2)
Forced Operation
switch (SW1)
(1) Remove the valve lid from liquid shut-off valve and gas
shut-off valve.
(2) Carry out forced cooling operation.
(3) After five to ten minutes, close the liquid shut-off valve
with a hexagonal wrench.
(4) After two to three minutes, close the gas shut-off valve
and stop forced cooling operation.
(1) Turn the Operation Mode switch (SW2) to “COOL.”
(2) Press the Forced Operation switch (SW1) to begin forced cooling. Press the Forced Operation switch (SW1) again to
stop forced cooling.
In order to protect the environment, be sure to pump
down when relocating or disposing of the unit.
For heat pump only
