ED12-321A Outdoor Units
Installation Manual 171
4
Installation
Outdoor Unit Installation Guidelines

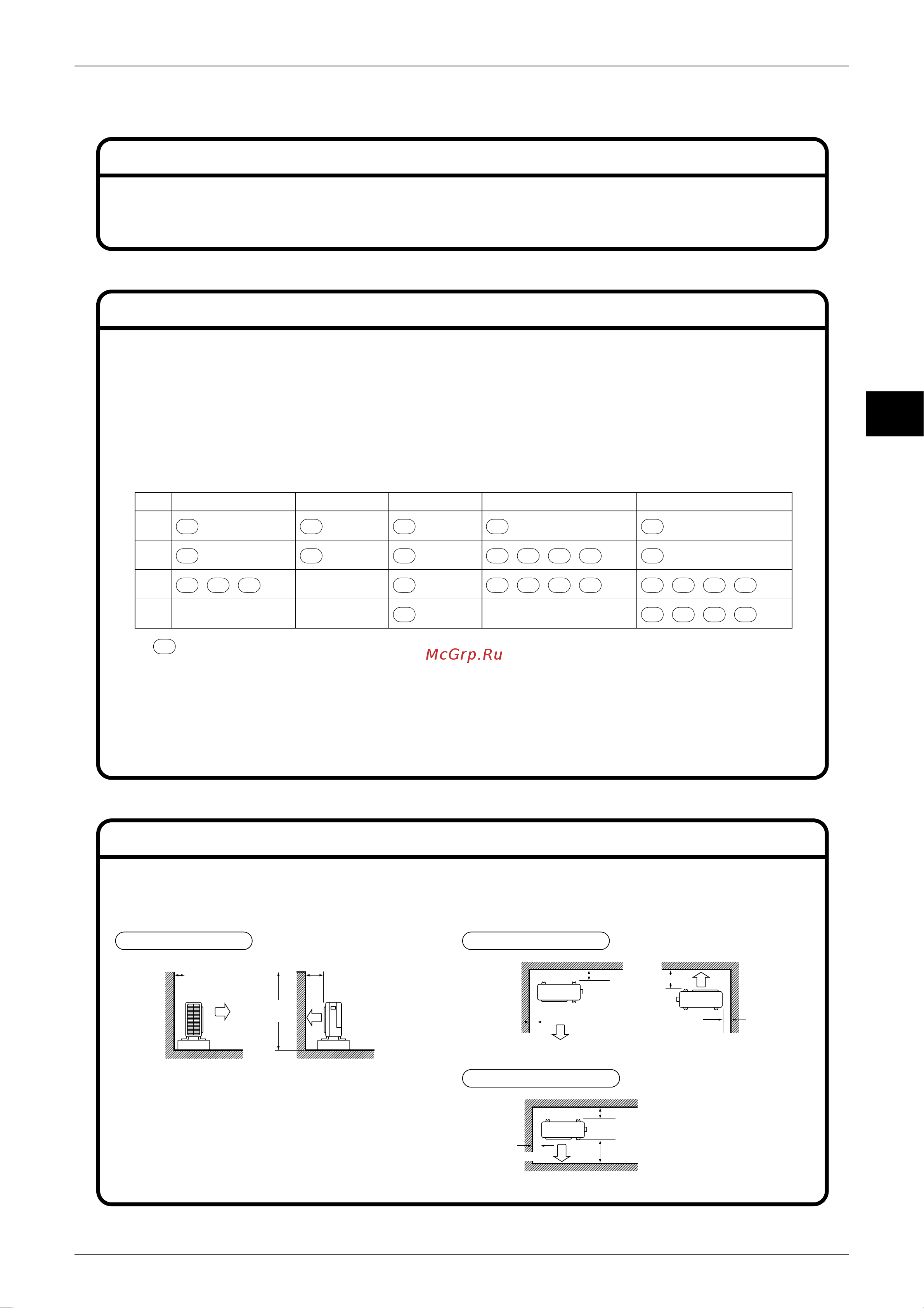

Connections (connection port)
Refer to “How to Use Reducers” for information on reducer numbers and their shapes.
: Use a reducer to connect pipes.
: Use No. 2 and 5 reducers
: Use No. 7 and 8 reducers
: Use No. 1 and 4 reducers
: Use No. 3 and 6 reducers
#
▲
■
●
Port
A
B
C
D
2MKD58∗
–
–
25 , 35 , 50
25 , 35 , 50
#
#
3MKD58∗
25 , 35
25 , 35 , 50
25 , 35 , 50
25 , 35 , 50
#
#
#
#
–
3MXD68∗
25 , 35
25 , 35 , 50
25 , 35 , 50 , 60
▲
■
■
#
#
–
3MKD75∗
25 , 35 , 50
25 , 35 , 50 , 60 , 71
25 , 35 , 50 , 60 , 71
▲
●
■
●
■
●●
▲
●
■
●
■
●●
#
4MKD75∗
25 , 35
25 , 35 , 50
25 , 35 , 50 , 60 , 71
25 , 35 , 50 , 60 , 71
▲
●
■
●
■
●●
#
#
▲
●
■
●
■
●●
More than 100 More than 350
Side view
1200
or less
More than 50 More than 50
More than 350
Top view
More
than 100
Top view
More than 100
More than 350
More than 50
● Install the unit horizontally.
● The unit may be installed directly on a concrete verandah or a solid place if drainage is good.
● If the vibration may possibly be transmitted to the building, use a vibration-proof rubber (field supply).
Install the indoor unit according to the table below, which shows the relationship between the class of indoor unit and the
corresponding port.
The total indoor unit class that can be connected to this unit:
Heat pump type: 3MXD68∗ – Up to 11.0kW
Cooling only type: 2MKD58∗ – Up to 10.0kW
3MKD58∗ – Up to 10.0kW
3MKD75∗ – Up to 13.5kW
4MKD75∗ – Up to 13.5kW
● Where a wall or other obstacle is in the path of outdoor unit’s intake or exhaust airflow, follow the installation guidelines
below.
● For any of the below installation patterns, the wall height on the exhaust side should be 1200 mm or less.
Wall facing one side Walls facing two sides
Walls facing three sides
Unit: mm
