Outdoor Units ED12-321A
194 Installation Manual
(A) (B)
(C)
(E)
(D)
Cover

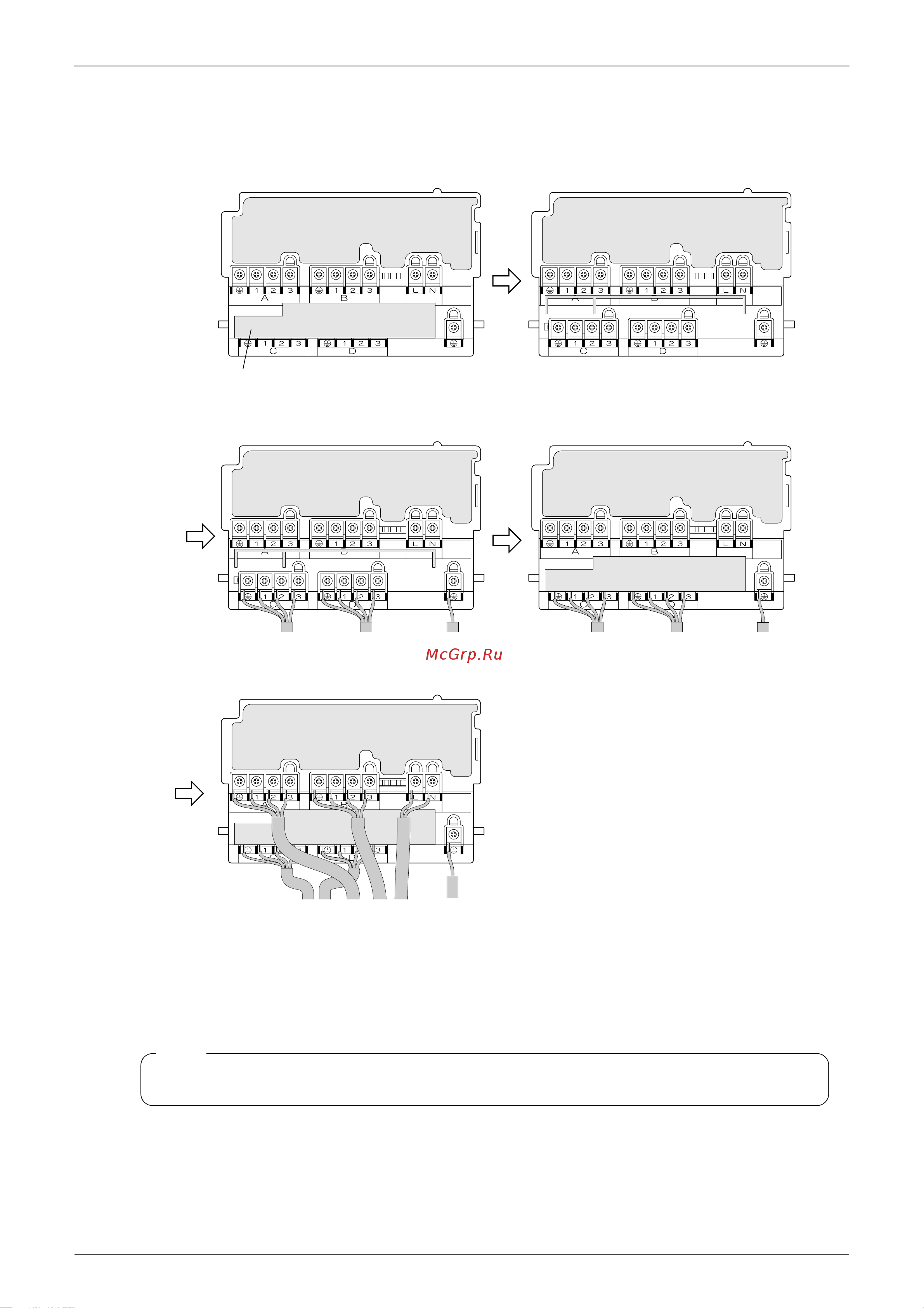

For 4MX and 4MK, follow the procedure below to connect the wires.
(When connecting 3 or more rooms)
This air conditioner must be earthed.
For earthing, follow the applicable local standard for electrical installations.
Earth
(1) Remove the service lid, and it should be as in Figure (A).
First push up the cover as shown in Figure (B), then connect room C, D (Figure (C)).
Be sure to connect from room C, D.
(2) After room C and D are connected, replace the cover (Figure (D)).
(3) Connect room A, B and power supply wires (Figure (E)).
(4) When connecting the power supply wires to rooms A and B, route the wires so that no force will be applied to the lid,
which may otherwise be deformed. (Figure (E))
