ED12-321A Indoor Units
Installation Manual 167
4
•

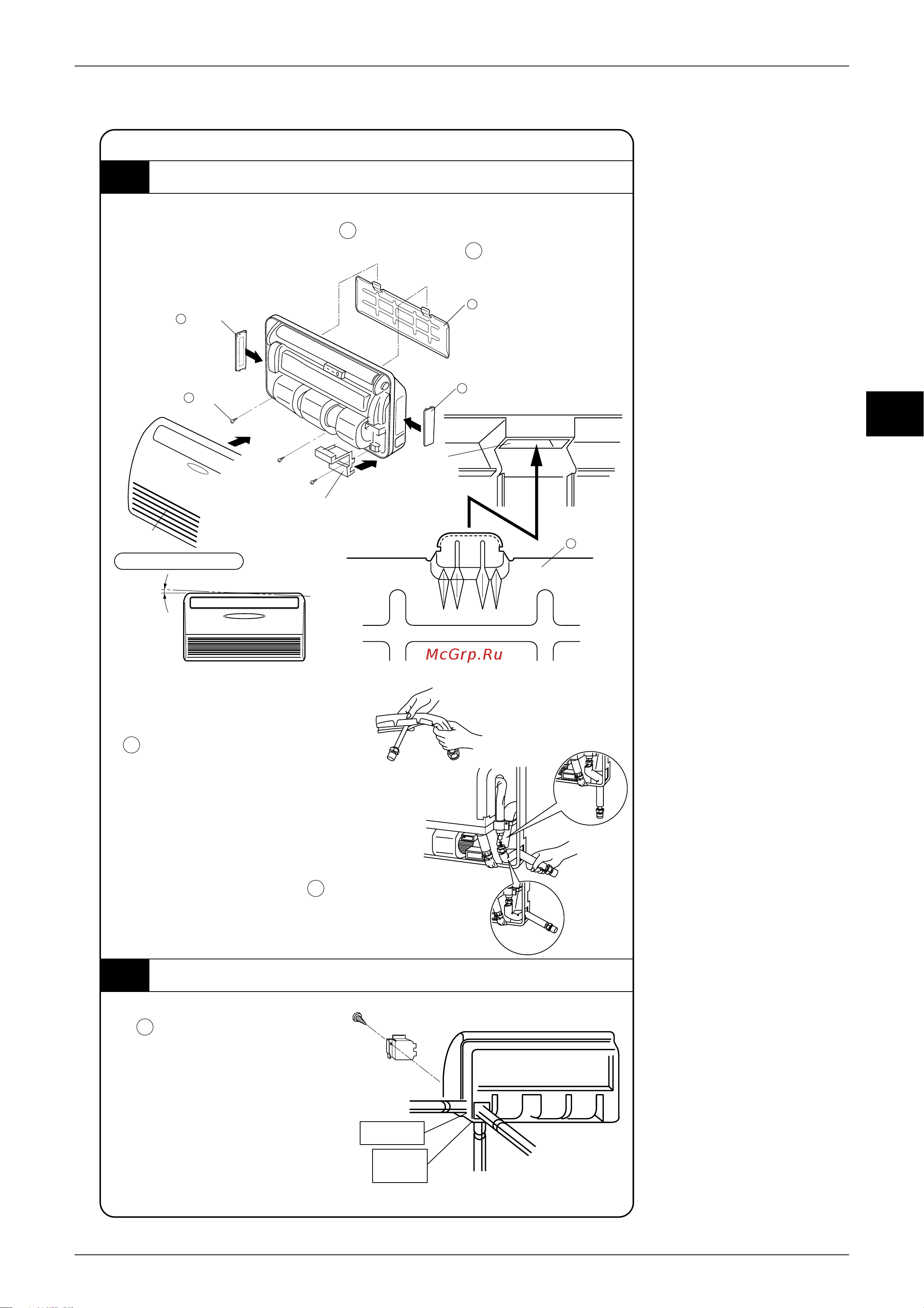

Install the indoor unit on the wall according to the installation drawings.
(1) Hang the indoor unit on the hooks of A mounting plate. (2 places)
(2) Fix the three holes in the lower portion of the indoor unit with B M4 x 25L screws.
WALL MOUNTING
INSTALLATION
1
Condition for installation
INSTALLING INDOOR UNIT
2
(1) Connect the extension auxiliary pipe
( M , supplied) to the local piping.
(Applies to both ceiling mounting and
wall mounting units.)
(2) Prepare the local piping at the
connection point for the drain pipe, as
shown in the installation drawings.
(3) Connect the drain hose to the local
drain pipe.
Position the interconnecting wire in the
same direction as the piping.
Right-side piping
Right-back piping
Bottom-right piping
Note:
Remove the bottom frame cover for right-back
piping before installing the indoor unit.
Cut away here for
right-side piping
Cut away here
for bottom-right
piping
• Work should be performed to match the
direction of the piping, as the extension
auxiliary pipe
( M , supplied) and installation methods vary
depending on the direction the piping is
brought out.
(1) Select the extension auxiliary pipe in accordance
with the direction of the piping. (This should be
done without the included piping for wall-mounted
right-back piping and ceiling-mounted upper right-
side piping.)
(2) Attach the heat insulation tube P to the extension
auxiliary pipe. (Make sure there are no gaps.)
(3) Attach the extension auxiliary pipe to the product.
A Mounting plate
A Mounting plate
Electric component cover
(2 claws)
Front grille
B M4 x 25L
J Side cover
(6 claws)
J Side cover
Indoor unit
hook portion
less than 1
Bottom-
right piping
Right side
piping
(3)
(2)
