Indoor Units ED12-321A
168 Installation Manual
Earth
When wire length exceeds
10 m, use 2.0-mm wires.
H05VV
Firmly fix the wires with the terminal screws.
Firmly fix the wires with the terminal screws.
The earth leakage circuit
breaker is required depending
on site environment.
Power
supply
50Hz 220-240V
60Hz 220-230V
1
2
3
123 LN
Safety
breaker
20A
Earth leakage
circuit breaker
Outdoor unit
Indoor
unit
(1) Strip wire ends (15 mm).
(2) Match wire colours with terminal numbers on
indoor and outdoor units' terminal blocks and
firmly screw wires to the corresponding
terminals.
(3) Connect the earth wires to the corresponding
terminals.
(4) Pull wires to make sure that they are securely
latched up, then retain wires with wire retainer.
(5) In case of connecting to an adapter system.
Run the remote control cable and attach the S21 connector as the illustration on the right.
(6) Shape the wires so that the service lid fits securely, then close service lid.

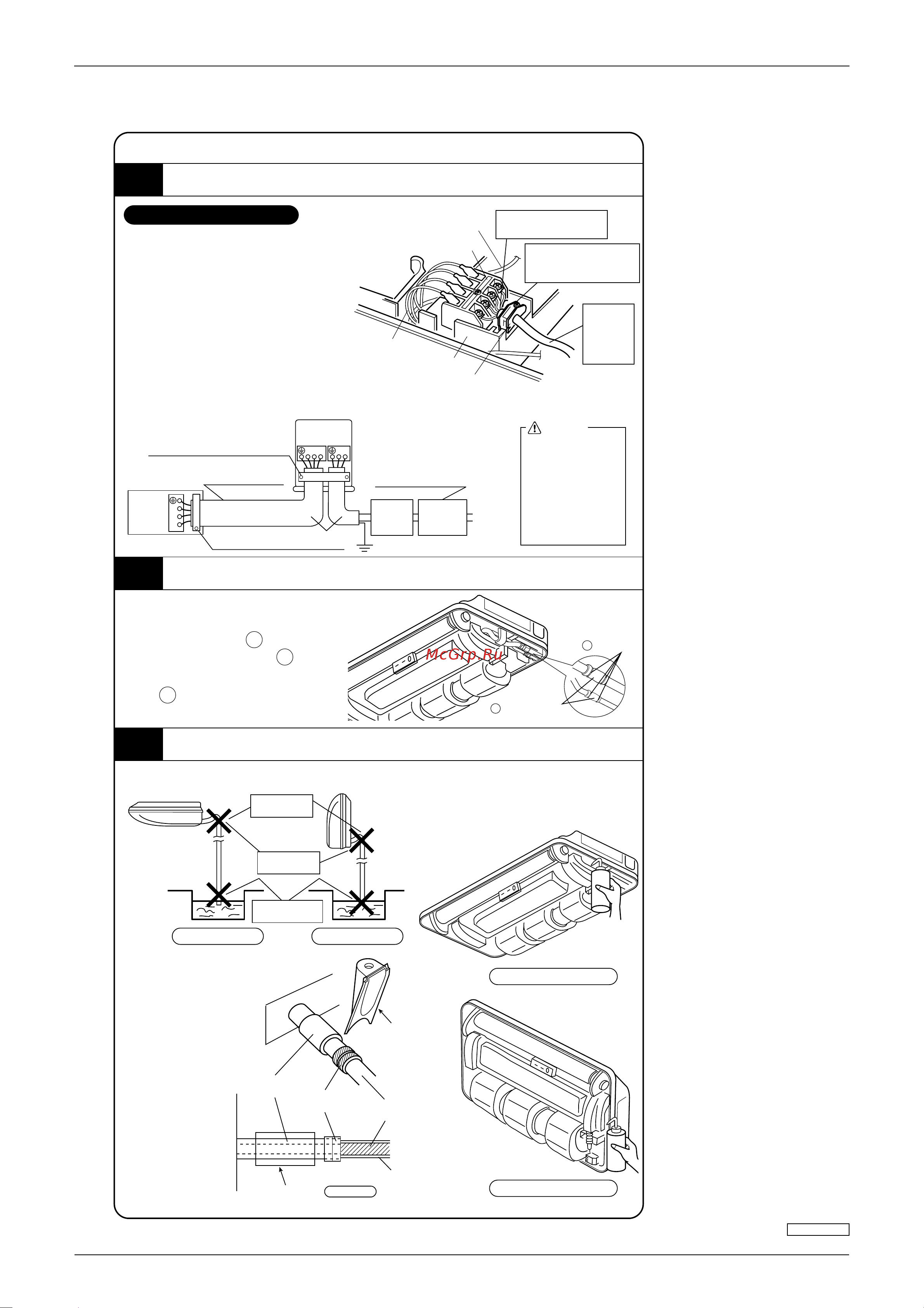

COMMONALITY BETWEEN CEILING MOUNTING AND WALL MOUNTING
WIRING
1
Ceiling mounting
Ceiling mounting
Wall mounting
Wall mounting
DRAIN PIPING
3
INSULATION OF REFRIGERANT PIPES
2
•
Connect the drain hose, as described below.
•
Pour water into the drain pan from
the right side to check that water
flows smoothly from the drain hose.
Do not allow end of
hose to touch water.
Allow no trap to
form in the piping.
Drain hose must
slope downward.
Do not use tapped
wires,stand wires,
extensioncords, or
starbust connections,
as they may cause
overheating, electrical
shock,or fire.
Warning
Q Binding band
N Heat insulation tube
•
When drain hose
requires extension,
obtain an extension
hose commercially
available.
After connecting the
local drain hose, tape
the slits of the heat
insulation tube.
After checking for refrigerant leaks
•
Joints in liquid pipe and the gas pipe
must be insulated with N heat
insulation tube attached with Q binding
bands.
* Cut N heat insulation tube to appropriate
length.
Be sure to
attach this
part cut
from the
panel.
Tape here
(Field supply)
Indoor unit
drain hose
Extension
drain hose
(Field supply)
Heat insulation tube
(More than 10 mm:
Field supply)
Remove this socket for Wall mounting .
With a Multi indoor unit , install as
described in the installation manual
supplied with the Multi outdoor unit.
Wire clamp
Earth wire
Electric component
box
Terminal blocks
Remote control
cable(option)
Use
designated
wire to
connect it
securely.
Fix securely so that
external force is not directly
applied to the terminals.
Secure the wires so that
the structure does not rise.
S21
3P082574-5C
