5-42
Chapter 5: BIOS Setup
Erasing Settings
Erase SEL [No]
Allows you to choose options for erasing SEL.
Configuration options: [No] [Yes, On next reset] [Yes, On every reset]
When SEL is Full [Do Nothing]
Allows you to choose options for reactions to a full SEL.
Configuration options: [Do Nothing] [Erase Immediately]
Custom EFI Logging Options
Log EFI Status Codes [Error code]
Allows you to select which codes to log.
Configuration options: [Disabled] [Both] [Error code] [Progress code]

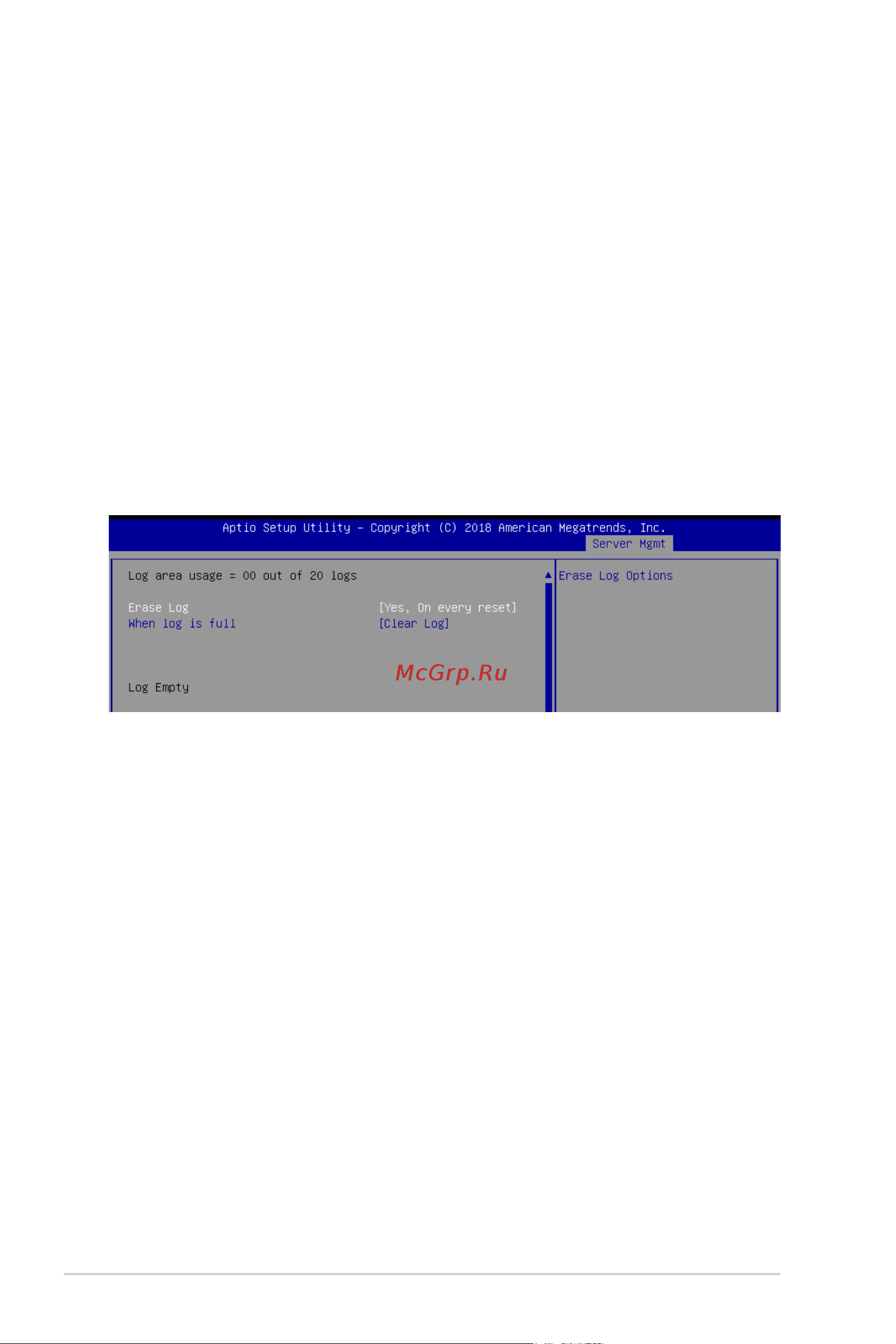

5.12.2 Bmc self test log
Allows you to change the SEL event log configuration.
Erase Log [Yes, On every reset]
Choose options for erasing Smbios Event Log. Erasing is done prior to any logging
activation during reset.
Configuration options: [No] [Yes, On every reset]
When Log is Full [Clear Log]
Allows you to choose options for reactions to a full Smbios Event Log.
Configuration options: [Clear Log] [Do not log any more]
