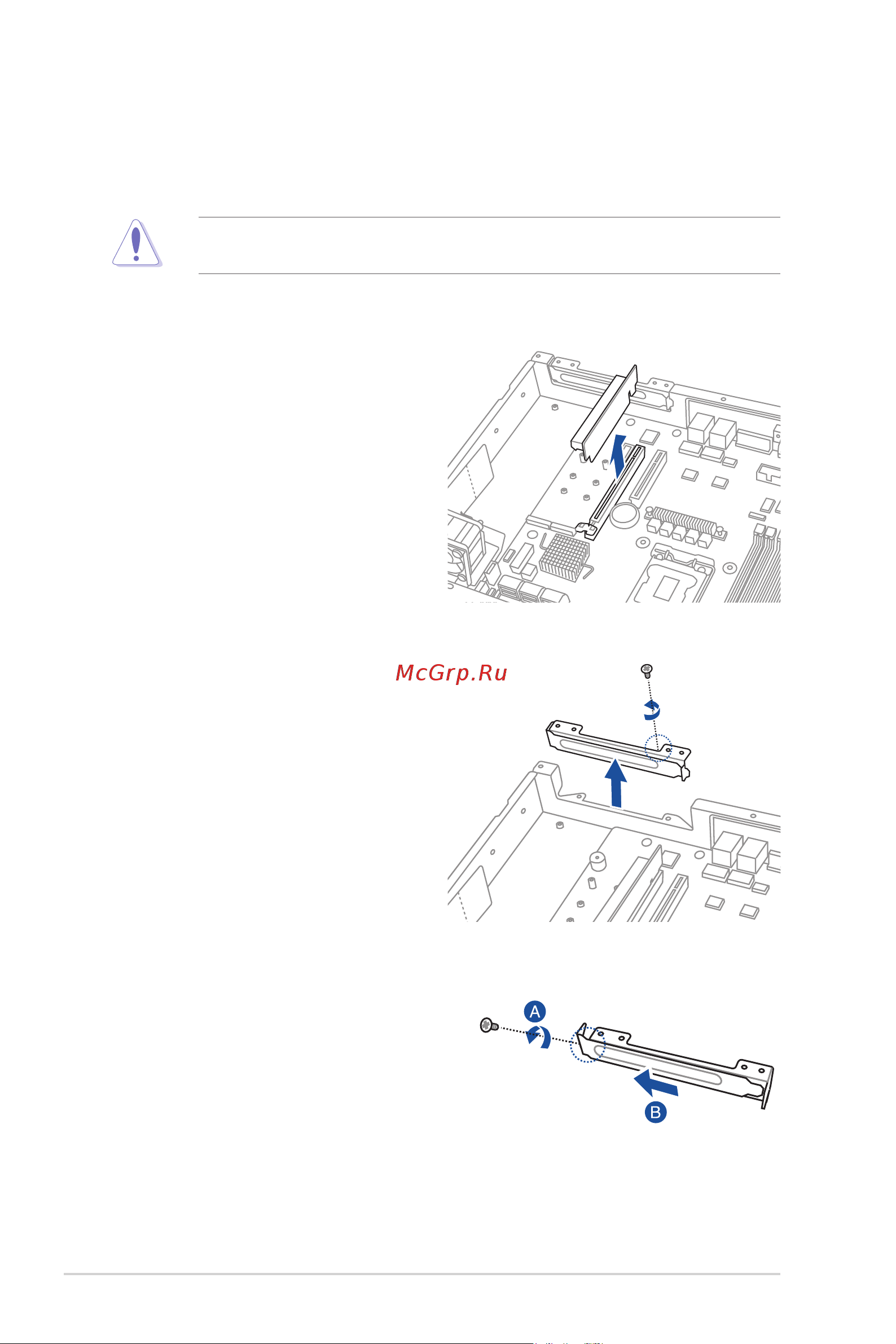

Asus RS100-E10-PI2 [44/168] Expansion card

Chapter 2: Hardware Information

2-26

2. Remove the screw to release the

expansion card bracket from the

chassis.

To install the expansion card:

1. Hold the riser card and pull it upwards

to detach it from the PCI Express slot

on the motherboard.

3. Remove the screw from the metal

cover (A) and remove the metal cover

(B) from the bracket.

2.5 Expansion card

This system comes with a riser card. You need to remove the riser card and the expansion

slot bracket if you want to install an expansion card.

Unplug the power cord before installing or removing an expansion card. Failure to do so

may cause severe damage to the motherboard and other system components!

2.5.1 Installing an expansion card
