2-27

ASUS RS100-E10-PI2

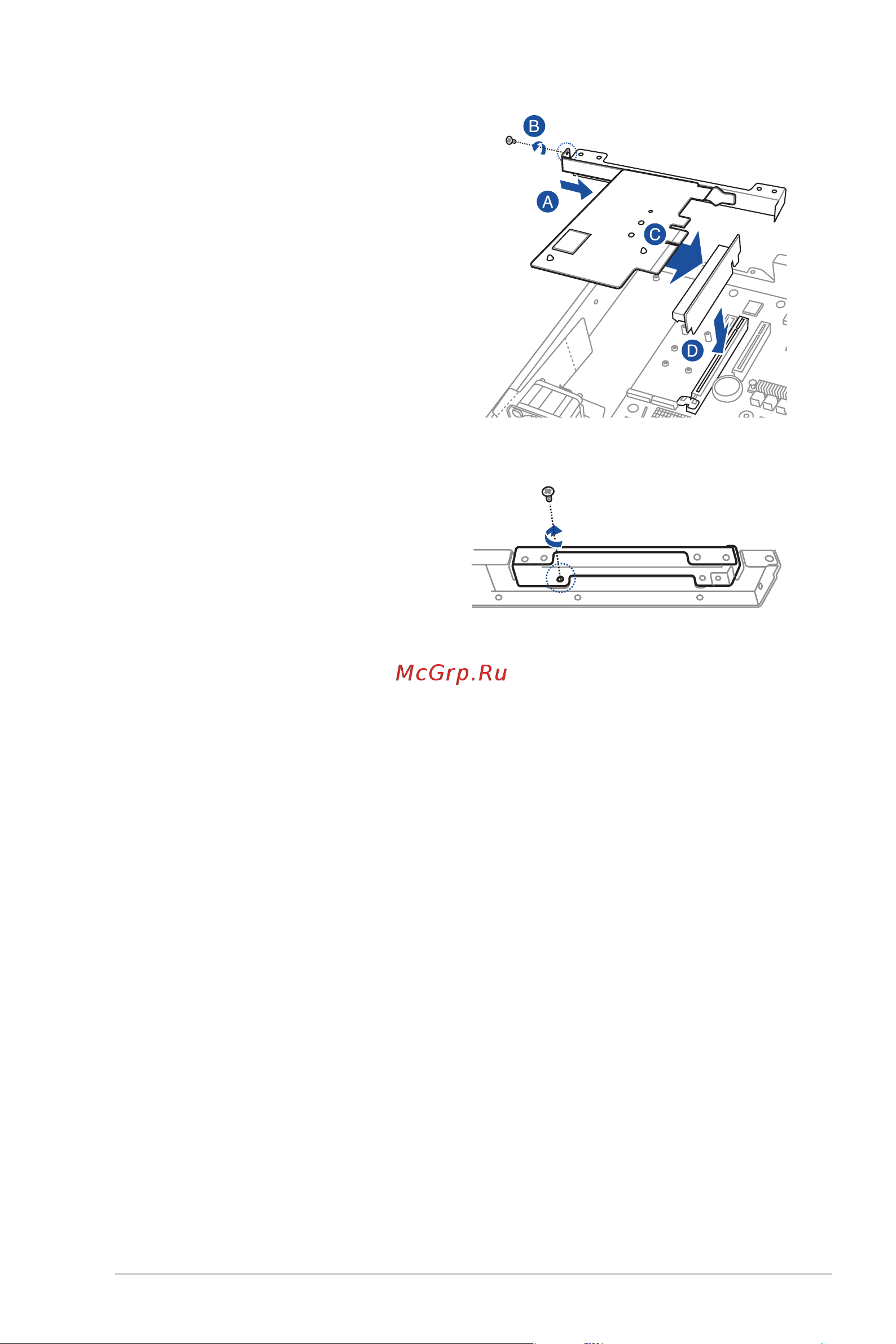

4. Install the expansion card to

the bracket (A) and secure the

expansion card with the screw

removed in step 3 (B).

5. Install the expansion card to the

riser card (C).

6. Install the expansion card and the

riser card assembly into the PCIE

connector on the motherboard (D).

Enusre that the golden connectors

oftherisercardareseatedrmlyin

place.

7. Secure the bracket using the screw

removed in step 2.
