Asus RS100-E10-PI2 [77/168] Internal connectors

ASUS RS100-E10-PI2

4-19

The actual data transfer rate depends on the speed of Serial ATA hard disks installed.

4.5.3 Internal connectors

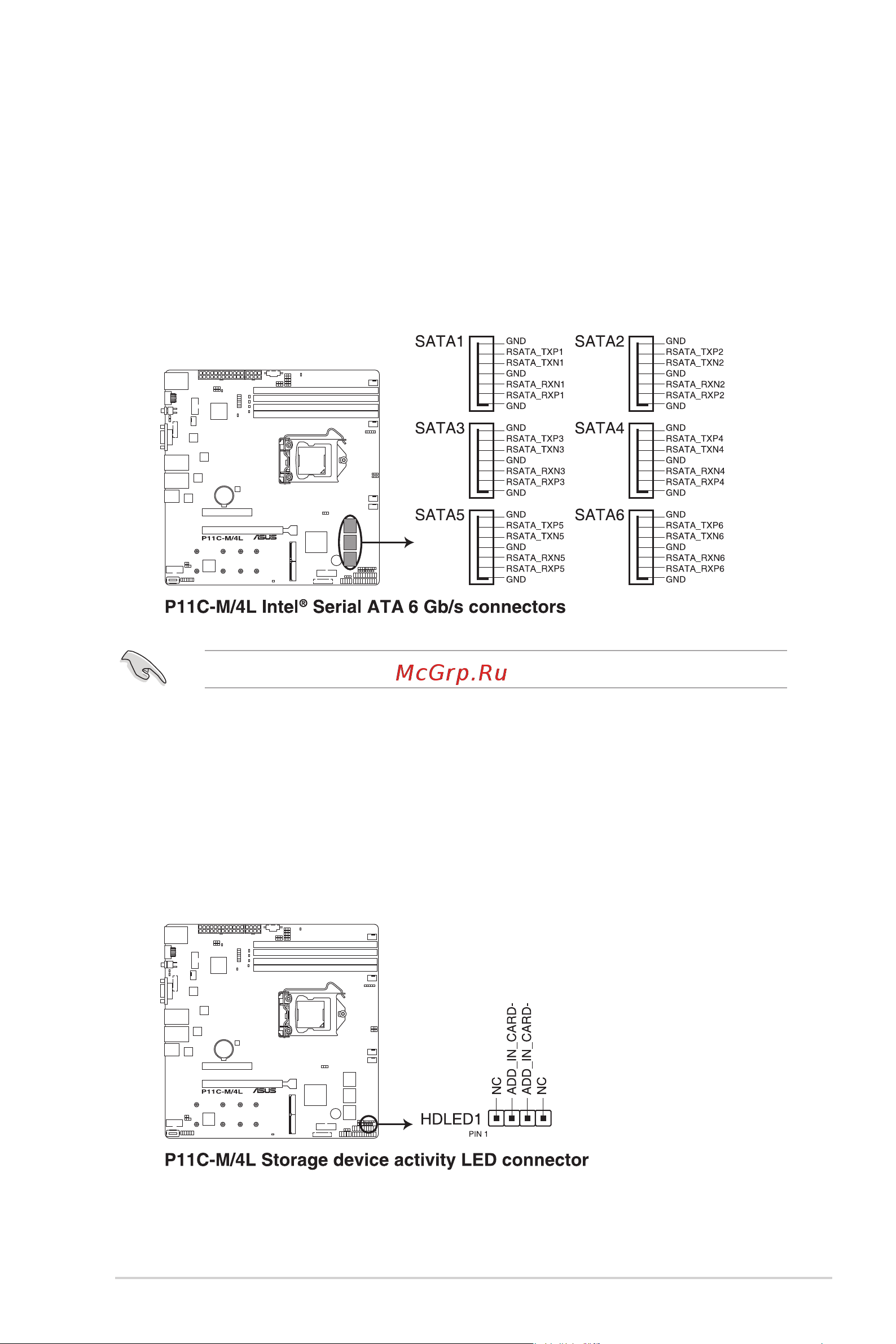

1. Serial ATA 6.0 Gbp/s connectors (7-pin SATA 6Gbps_1-6)

Supported by the Intel

C242 chipset, these connectors are for the Serial ATA signal

cables for Serial ATA hard disk drives that allows up to 6Gb/s of data transfer rate.

If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10,

or RAID 5 conguration.

2. Hard disk activity LED connector (4-pin HDLED1)

This LED connector is for the storage add-on card cable connected to the SATA or

SAS add-on card. The read or write activities of any device connected to the SATA or

SAS add-on card causes the front panel LED to light up.
