4.5 Connectors

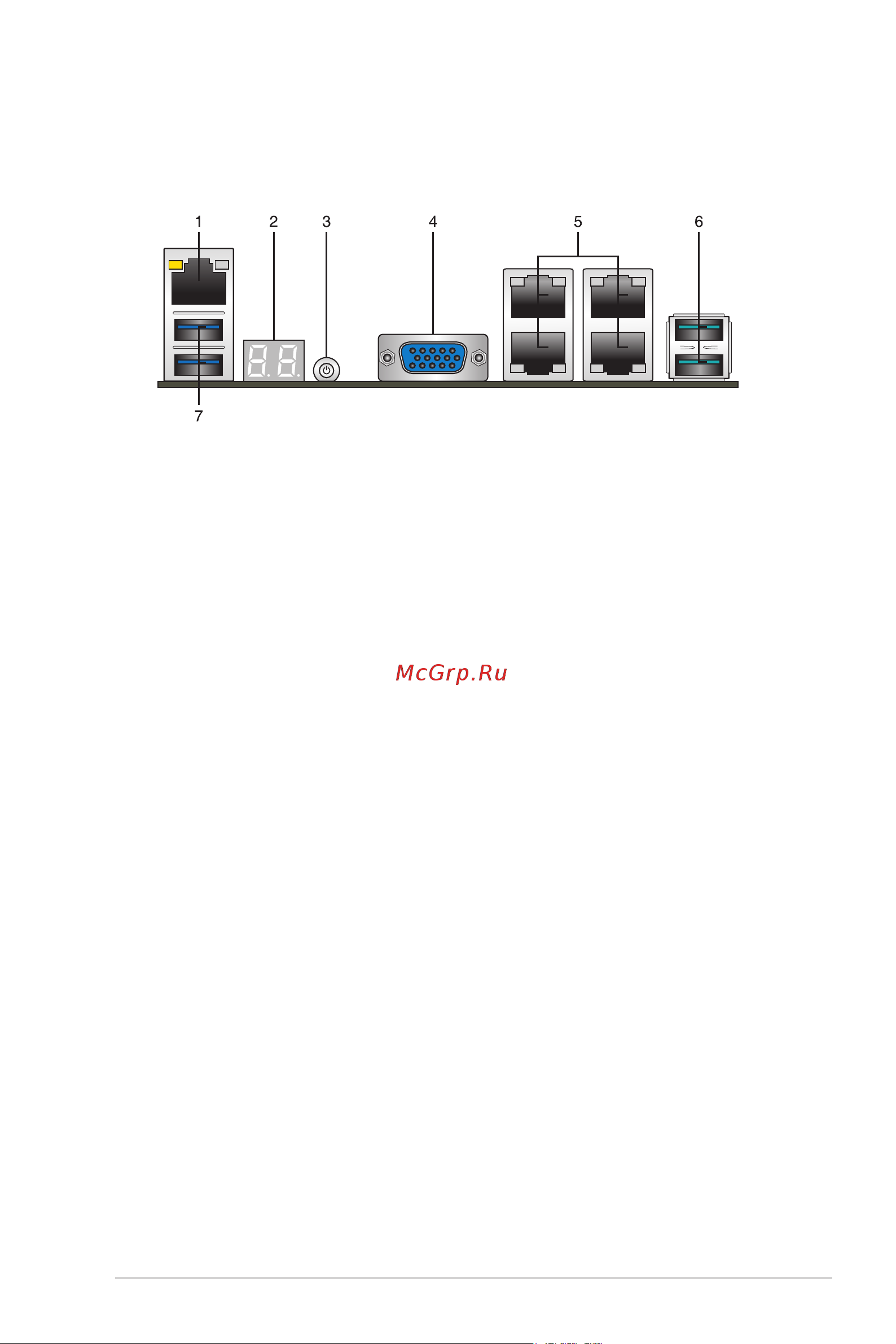

4.5.1 Rear panel connectors

1. RJ-45 port for iKVM.

This RJ-45 port functions only when you enable ASMB9

Management card.

2. Q-Code LED:

The Q-Code LED provides a 2-digit display that shows the status of your

system. Refer to the

Q-Code table

of this user guide for more information about the

2-digit codes.

3. Power-on Button:

Press this button to turn on the system.

Video Graphics Adapter port.

This port is for a VGA monitor or other VGA-compatible

devices.

RJ-45 ports for LAN 1-4.

These ports allows Gigabit connection to a Local Area

Network (LAN) through a network hub. Refer to the table below for the LAN port LED

indications.

USB 3.1 Gen 2 ports 1 and 2.

These two 4-pin USB ports are available for connecting

USB 3.1 Gen 2 devices.

USB 3.1 Gen 1 ports 5 and 6.

These two 4-pin USB ports are available for connecting

USB 3.1 Gen 1 devices.
