Chapter 2: Hardware Information

2-10

2.3 System memory

2.3.1 Overview

The motherboard comes with four (4) Double Data Rate 4 (DDR4) Dual Inline Memory

Modules (DIMM) sockets.

A DDR4 module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT

install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.

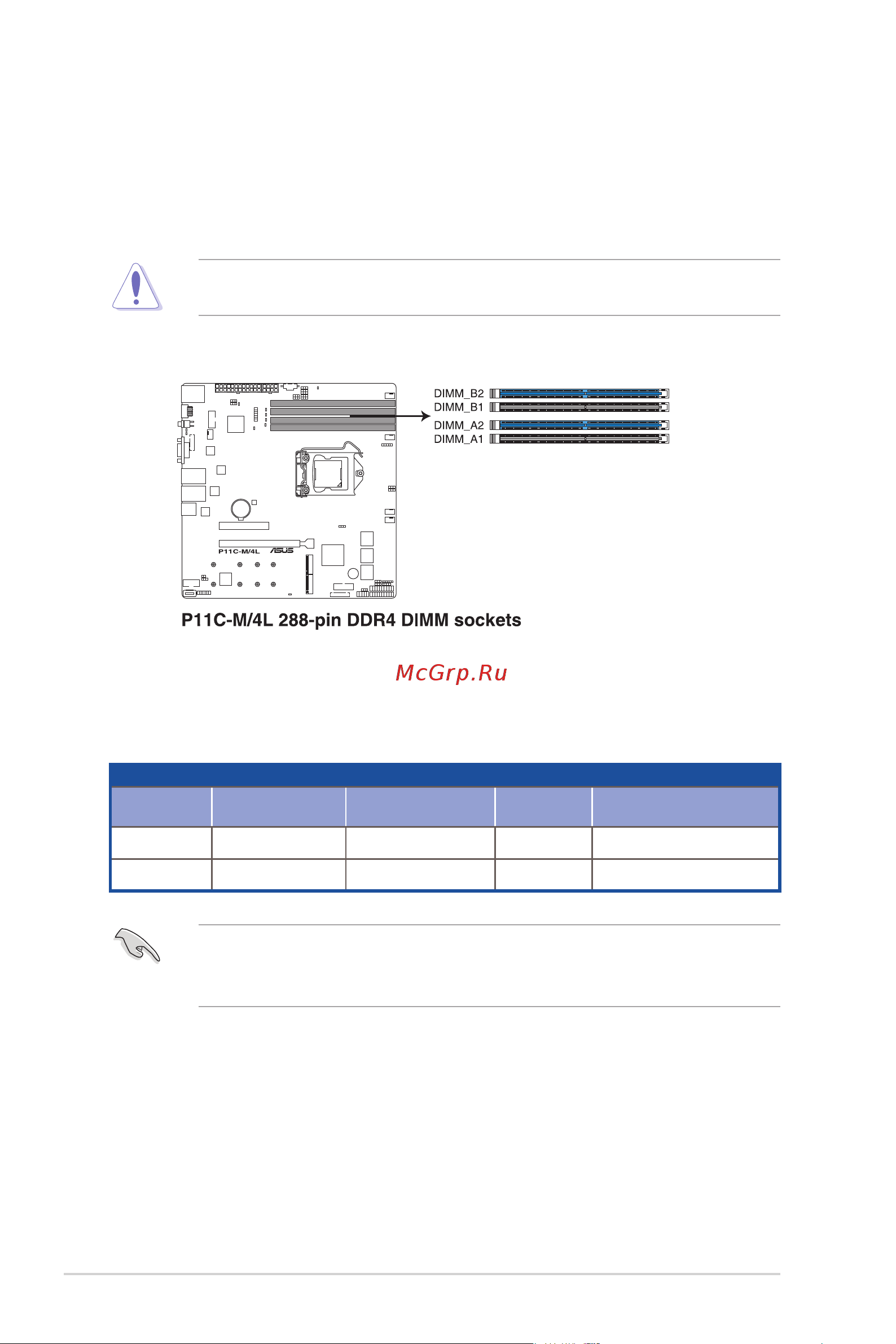

ThegureillustratesthelocationoftheDDR4DIMMsockets:

2.3.2 Memory configurations

You may install unbuffered DDR4 DIMMs into the DIMM sockets using the memory

congurationsinthissection.

UDIMM

DIMM Slot

Per Channel

DIMM Populated

per Channel

DIMM Type Speed Rank per DIMM

2 1 Unbuffered DDR4 2666 Single Rank, Dual Rank

2 2 Unbuffered DDR4 2666 Single Rank, Dual Rank

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is

recommended that you obtain memory modules from the same vendor.

• Start installing the DIMMs in slots A2 and B2 (Blue).
