2-9

ASUS RS100-E10-PI2

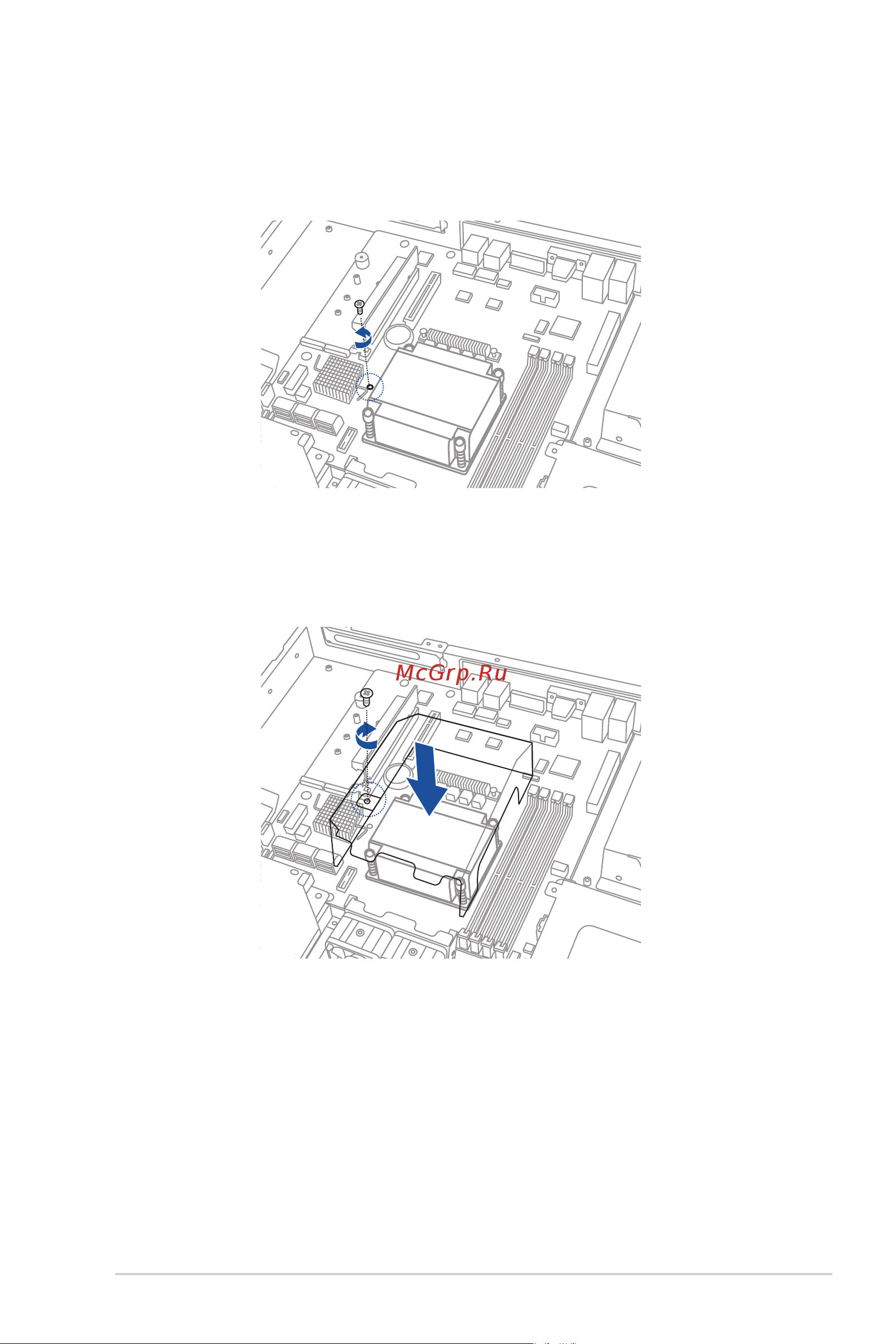

To install the airduct:

1. Locate and remove the screw from the motherboard.

2. Place the airduct over the heatsink. The fastener on the airduct should align with the

screw hole on the motherboard. Reattach the screw and secure the airduct onto the

motherboard.
