Asus RS100-E10-PI2 [17/168] Led information

ASUS RS100-E10-PI2

1-7

4 3 2 1

Q-Code

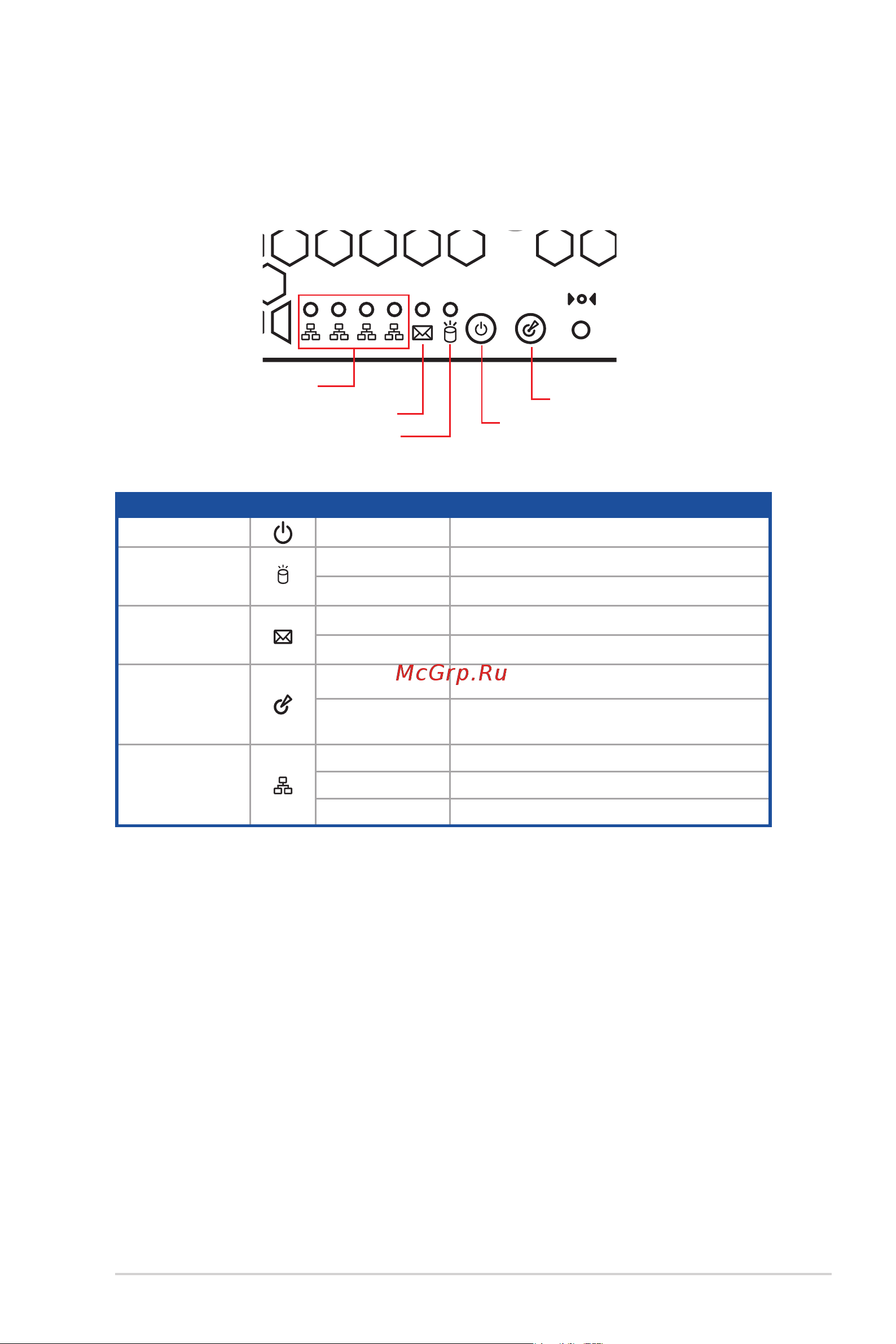

1.7 LED information

1.7.1 Front panel LEDs

HDD Access LED

LAN LEDs

Power button with LED

Message LED

Location button with LED

LED Icon Display status Description

Power LED ON System power ON

HDD Access LED

OFF

No activity

Blinking

Read/write data into the HDD

Message LED

OFF

System is normal; no incoming event

A hardware monitor event is indicated

Location LED

OFF Normal status

Location switch is pressed

(Press the location switch again to turn off)

LAN LEDs

OFF

No LAN connection

Blinking

LAN is transmitting or receiving data

LAN connection is present
