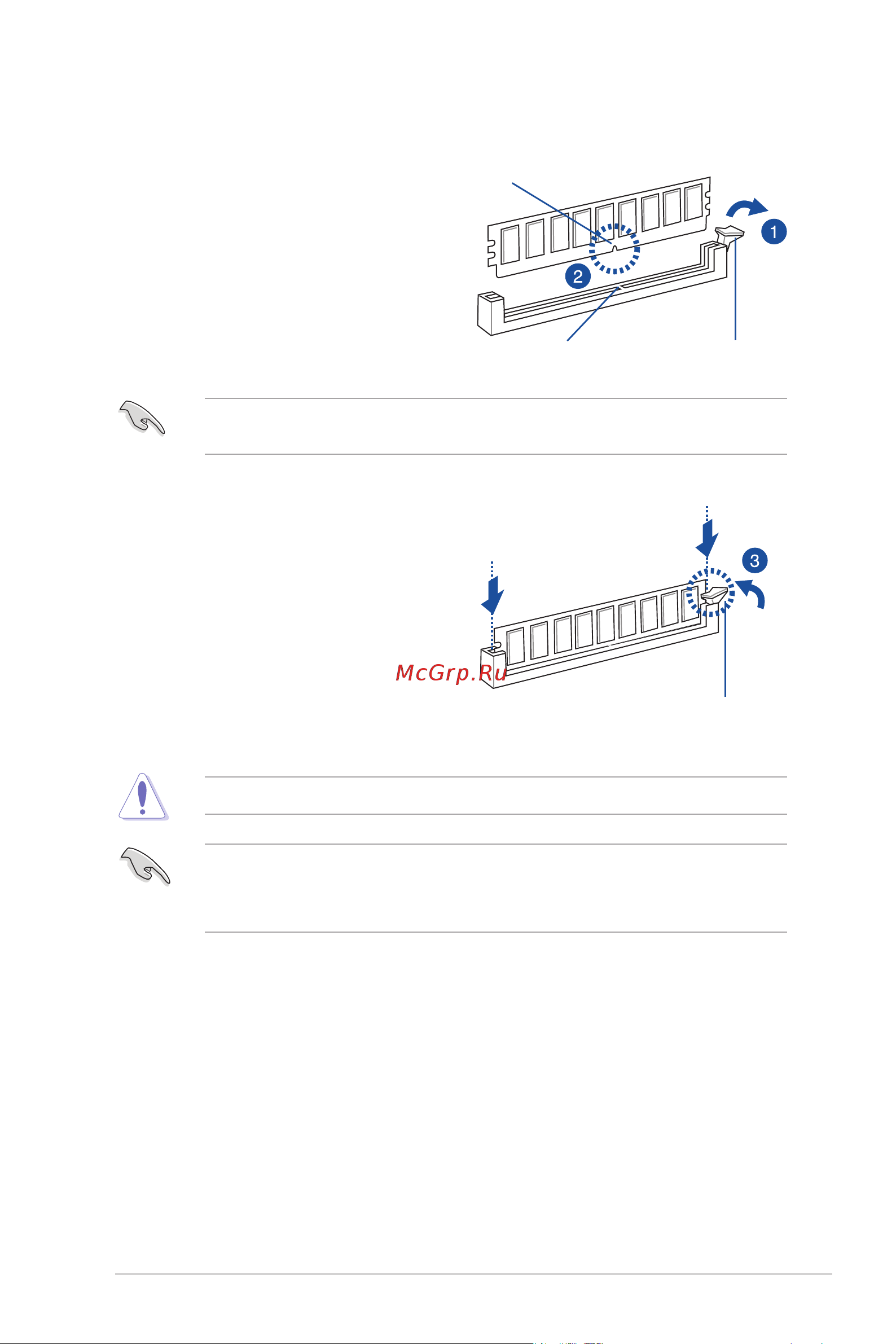

2.3.3 Installing a DIMM on a single clip DIMM socket

3. Hold the DIMM on both ends then

insert the DIMM vertically into the

socket. Apply force to both ends of the

DIMM simultaneously until the retaining

clip snaps back into place and the

DIMM cannot be pushed in any further

to ensure proper seating of the DIMM.

• To install two or more DIMMs, refer to the user guide bundled in the motherboard

package.

• RefertotheuserguidefortheQualiedVendorList(QVL)ofthememorymodules.

Always insert the DIMM into the socket vertically to prevent DIMM notch damage.

ADIMMiskeyedwithanotchsothatittsinonlyonedirection.DONOTforceaDIMMinto

a socket in the wrong direction to avoid damaging the DIMM.

1. Unlock a DIMM socket by pressing

the retaining clip outward.

2. Align a DIMM on the socket such

that the notch on the DIMM matches

the DIMM slot key on the socket.

Unlocked retaining clip

DIMM notch

DIMM slot key

Locked Retaining Clip
