2-33

ASUS RS100-E10-PI2

2.7.3 Installing ASMB9 series management card (optional)

Follow the steps below to install an optional ASMB9 series management card on your

motherboard.

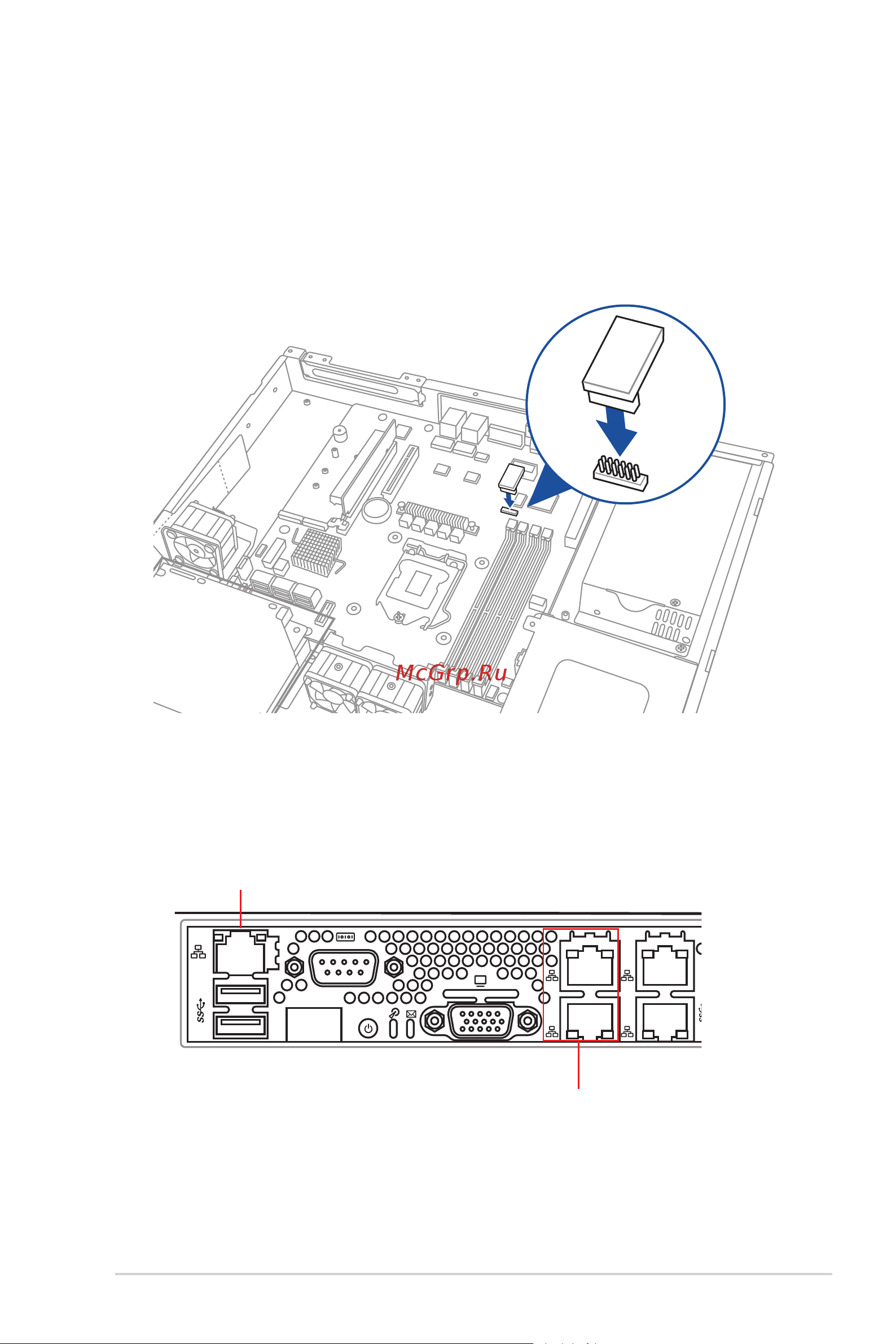

1. LocatetheASMB9headeronthemotherboard.FirmlyttheASMB9management

card to the header. Do not force the pins when connecting the card to the motherboard

header.

2. Insert the LAN cable plug to LAN port 5 (dedicated LAN), or LAN port 1 or LAN port 2

(shared LAN) for server management.

4 3 2 1

Q-Code

LAN port 1-2

LAN port 5
