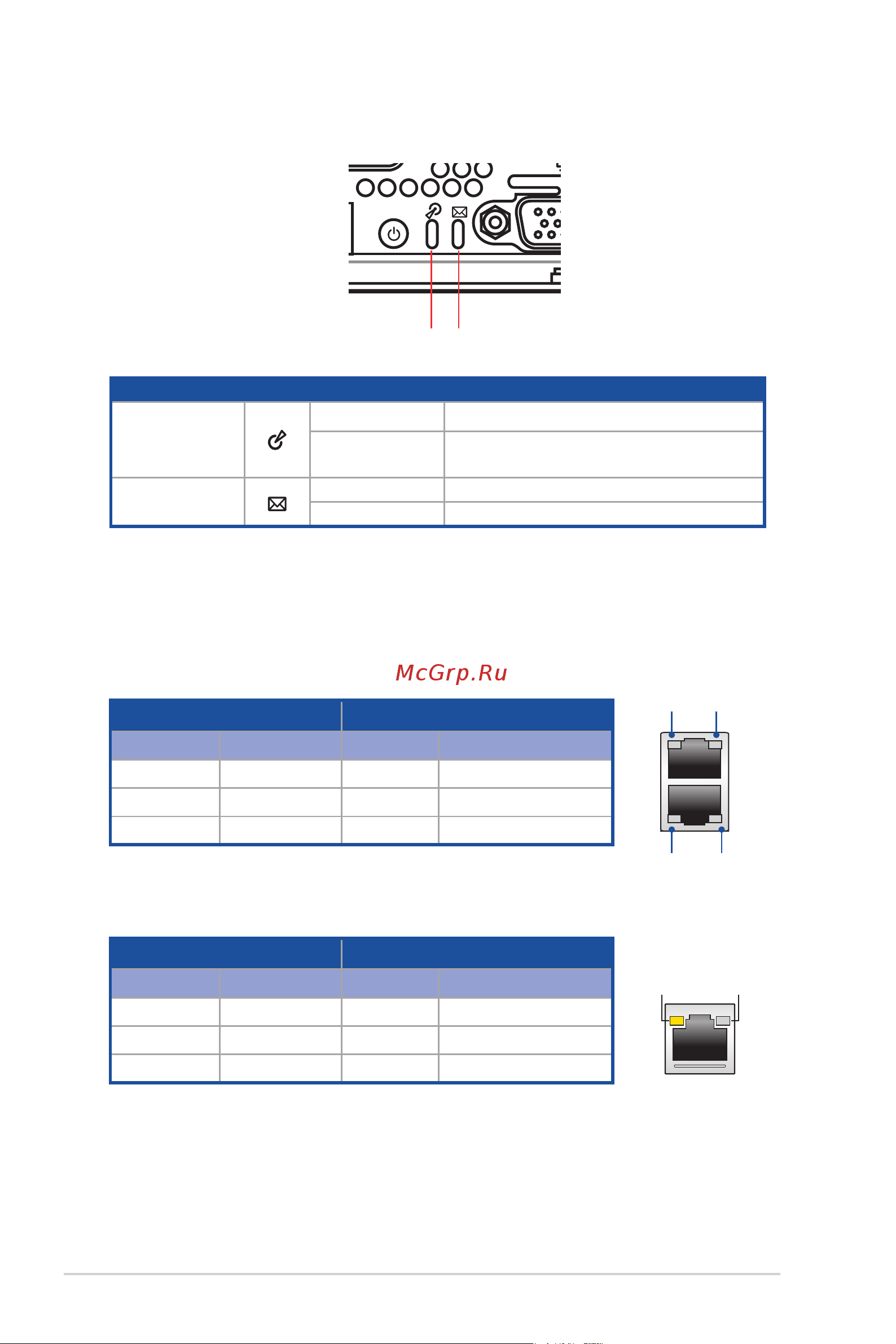

Asus RS100-E10-PI2 [18/168] Rear panel leds
![Asus RS100-E10-PI2 [18/168] Rear panel leds](/views2/1771503/page18/bg12.png)
Chapter 1: Product Introduction
1-8
1.7.3 LAN (RJ-45) LEDs
1.7.2 Rear panel LEDs
4 3 2 1
Q-Code
1
2
3
4
Message LEDLocation LED
LED Icon Display status Description
Location LED
OFF Normal status
ON
Location switch is pressed
(Press the location switch again to turn off)
Message LED
OFF System is normal; no incoming event
ON A hardware monitor event is indicated
LAN port LED indications
Dedicated Management LAN port (DM_LAN1) LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
ACT/LINK
LED
SPEED
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
SPEED
LED
SPEED
LED
ACT/LINK
LED
ACT/LINK
LED
