Asus RS100-E10-PI2 [38/168] Installing a 3 inch serial ata hdd to hdd bay 2

Chapter 2: Hardware Information

2-20

2.4.3 Installing a 3.5-inch Serial ATA HDD to HDD bay 2

To install a 3.5-inch Serial ATA HDD to HDD bay 2:

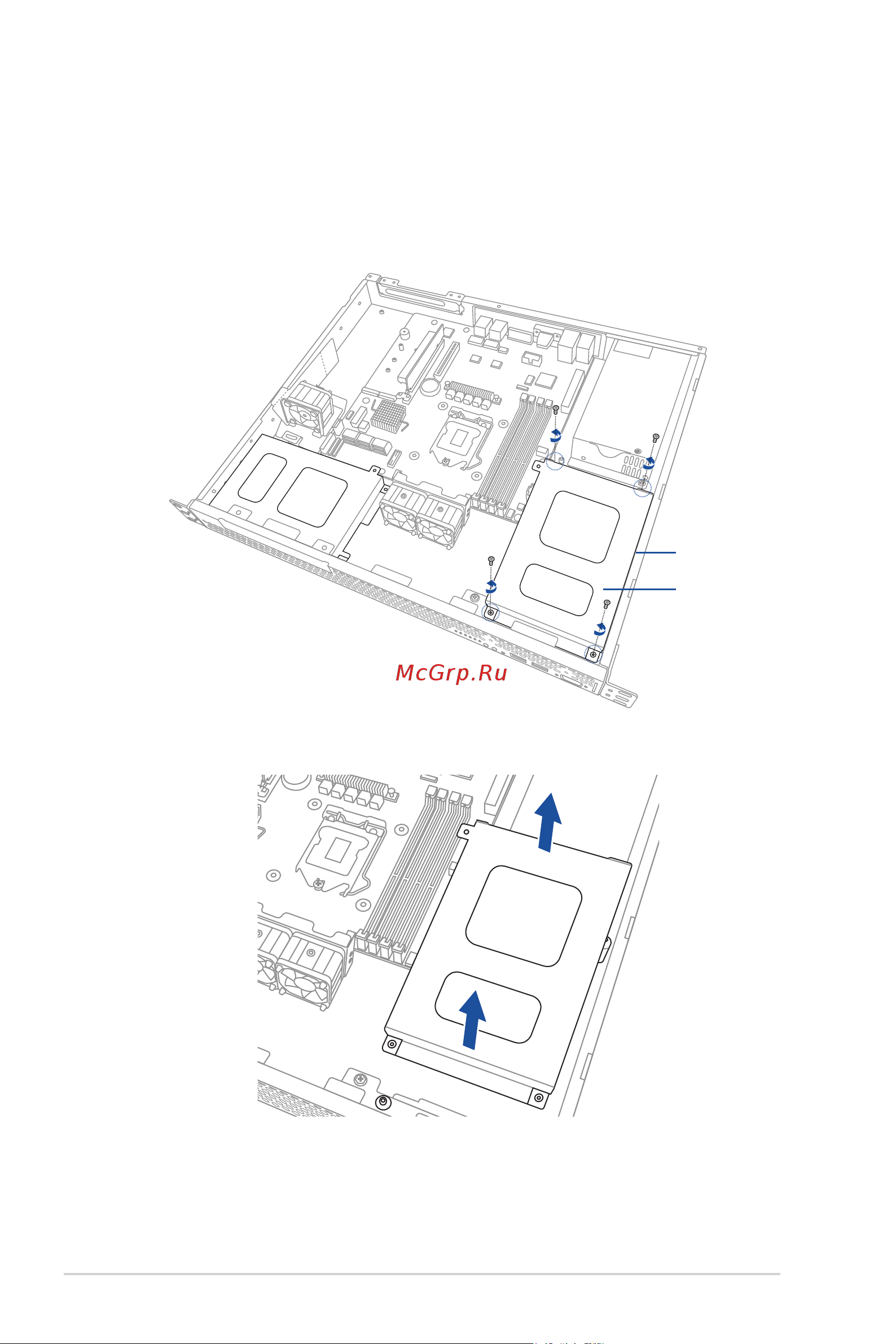

1. Locate the HDD bay 2 in the chassis.

2. Release the four screws that secure the HDD drive tray to the chassis and set aside.

3. Remove the HDD drive tray and set aside.

HDD drive tray

HDD bay 2
