2-21

ASUS RS100-E10-PI2

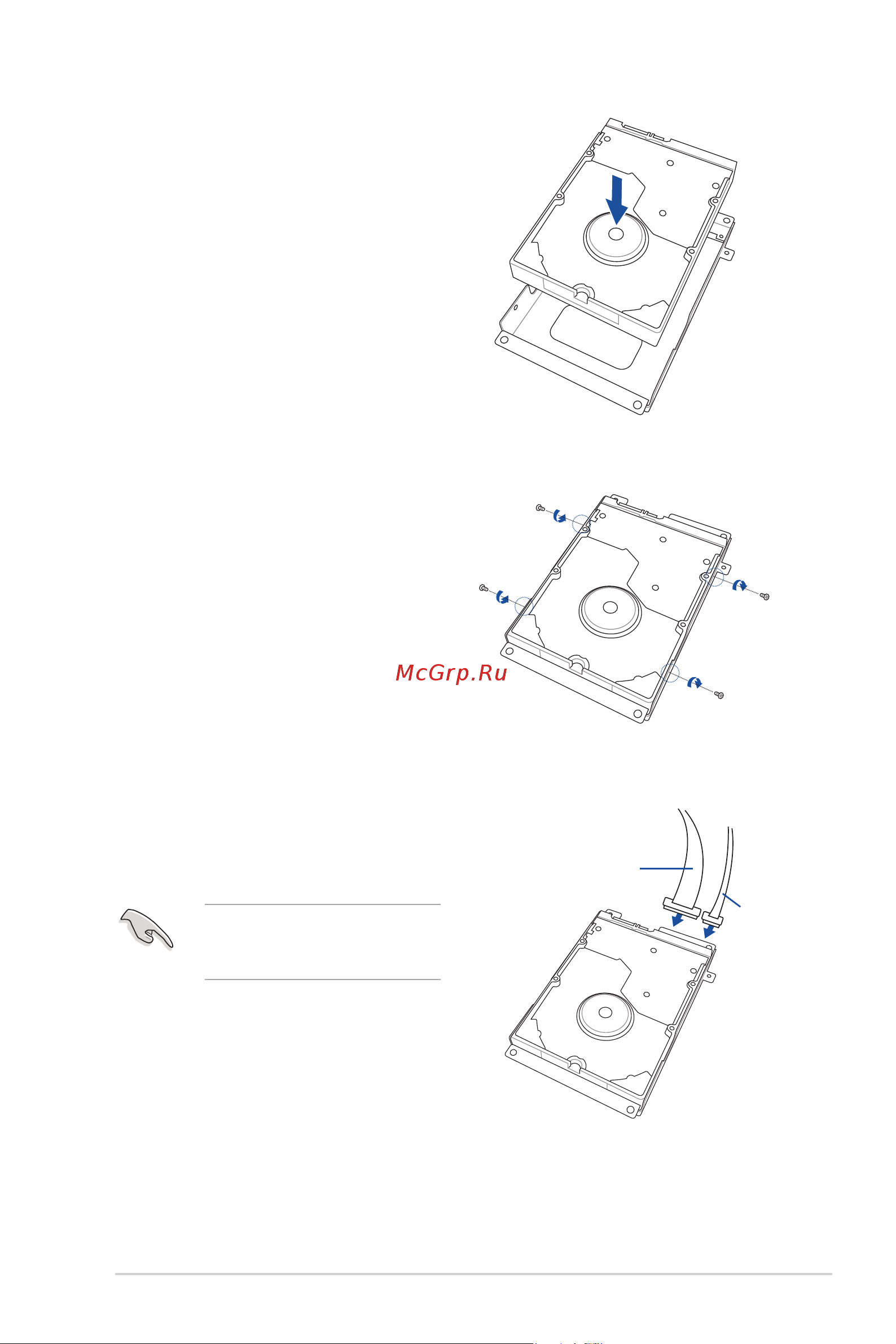

4. Insert a 3.5-inch Serial ATA HDD

into the HDD drive tray.

Ensure that the 3.5-inch SATA HDD

is seated securely in place.

5. Secure the 3.5-inch Serial ATA HDD

into the HDD drive tray using the

bundled set of screws (as shown).

Use an L-type SATA connector to

connect the 3.5-inch SATA HDD to

the motherboard.

6. Connect the SATA signal cable and

the power cable from the power

supply to the 3.5-inch HDD.

SATA power cable

SATA signal cable
