Chapter 2: Hardware Information

2-22

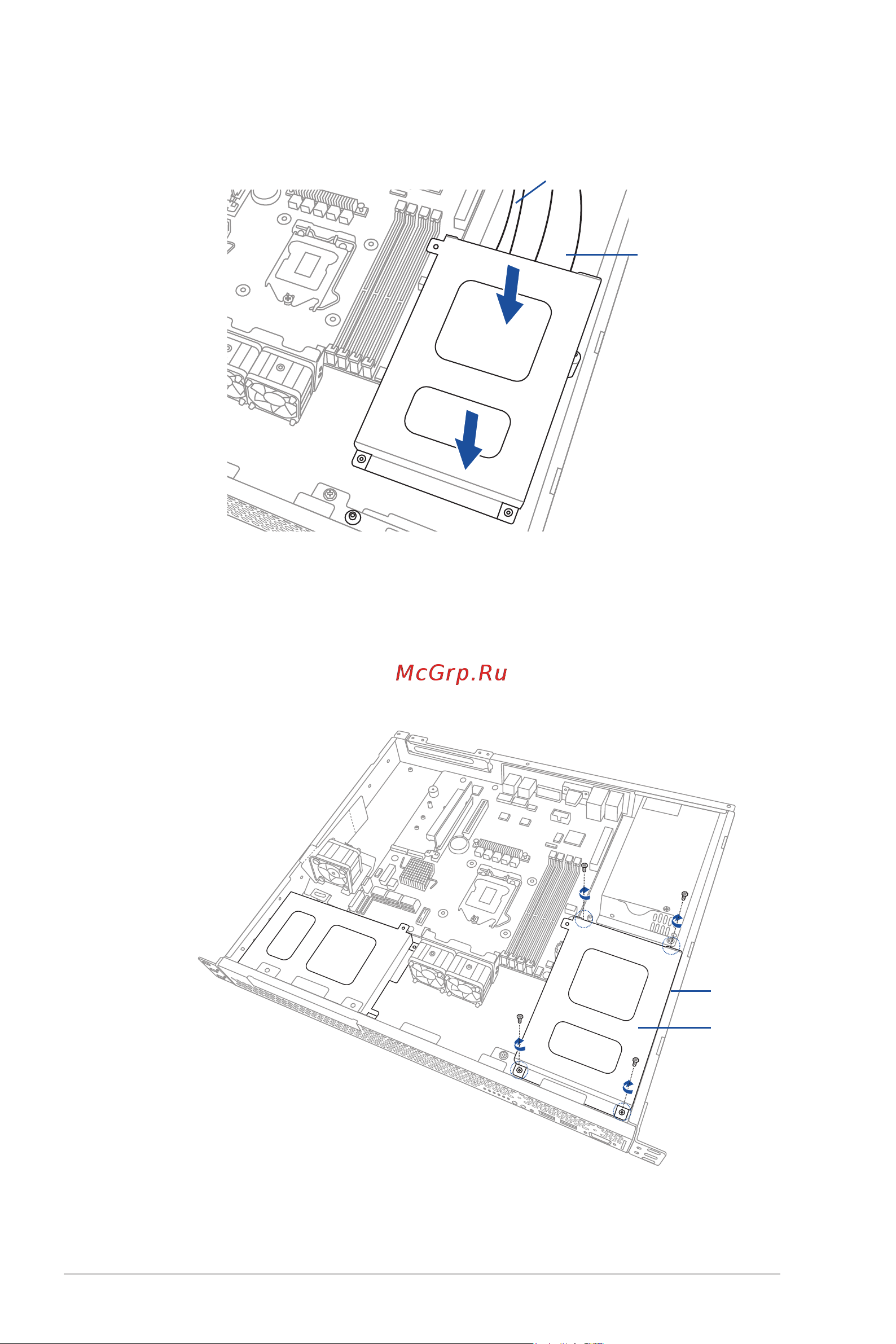

7. Place and orient the HDD drive tray and 3.5-inch SATA HDD assembly as shown.

8. Secure the 3.5-inch SATA HDD and HDD drive tray assembly to the HDD bay 2 using

the screws removed in step 2.

Ensure that the HDD drive tray is seated securely in place.

SATA power cable

SATA signal cable

HDD drive tray

HDD bay 2
