2-19

ASUS RS100-E10-PI2

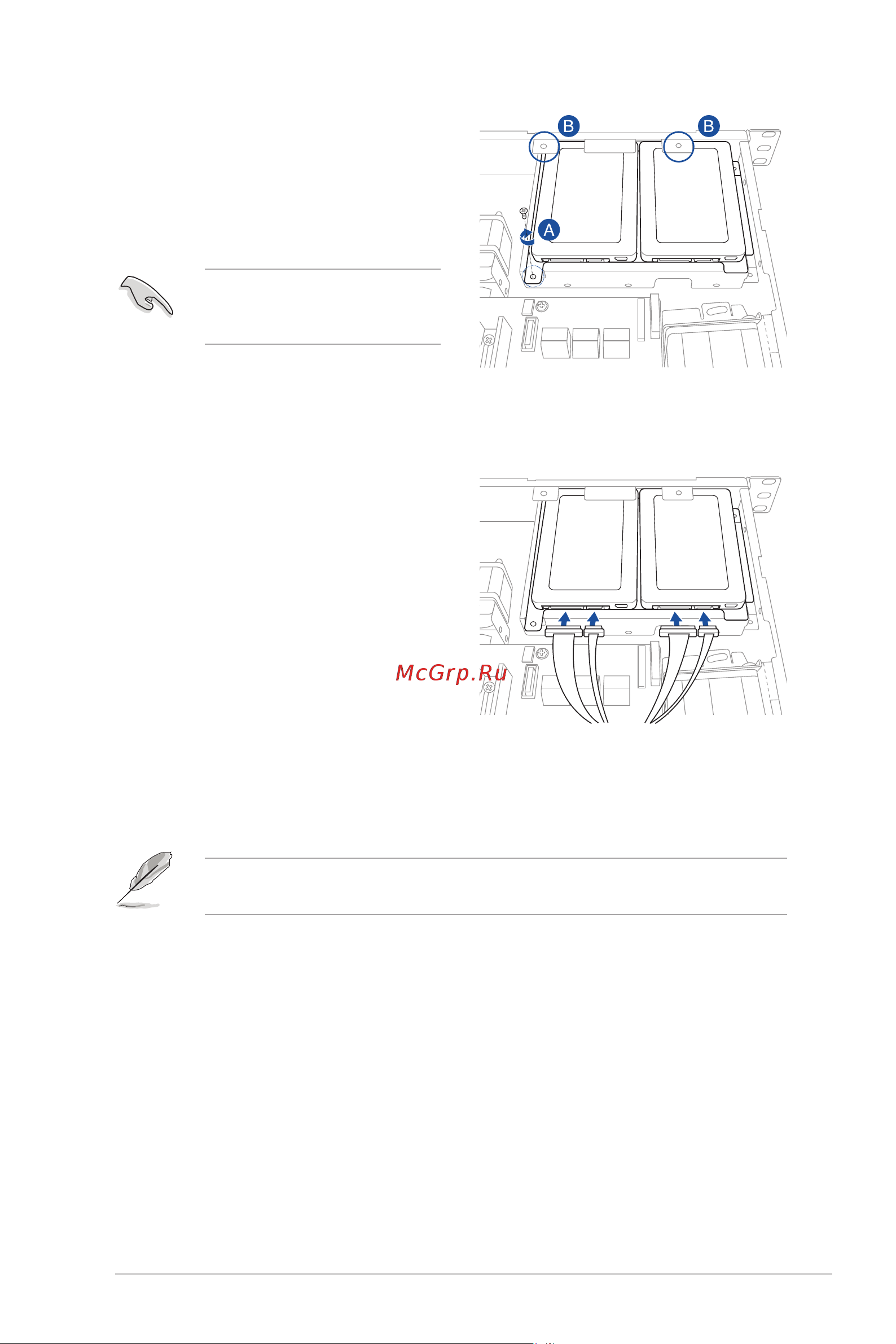

6. Secure the 2.5-inch SSDs and SSD

drive tray assembly to the HDD bay 1

using the bundled screw (A).

Ensure that the SSD drive tray is seated

securely in place.

7. Connect the SATA signal cable and

power cable to the SSDs.

You may install either one ODD or two 2.5-inch SSDs to the reserved space in HDD bay 1.

Refer to section

2.7.3

for more information.

To secure the ODD Dummy to HDD

bay 1, use the two bundled screws

(B) as shown.
