Chapter 2: Hardware Information

2-18

SSD drive tray

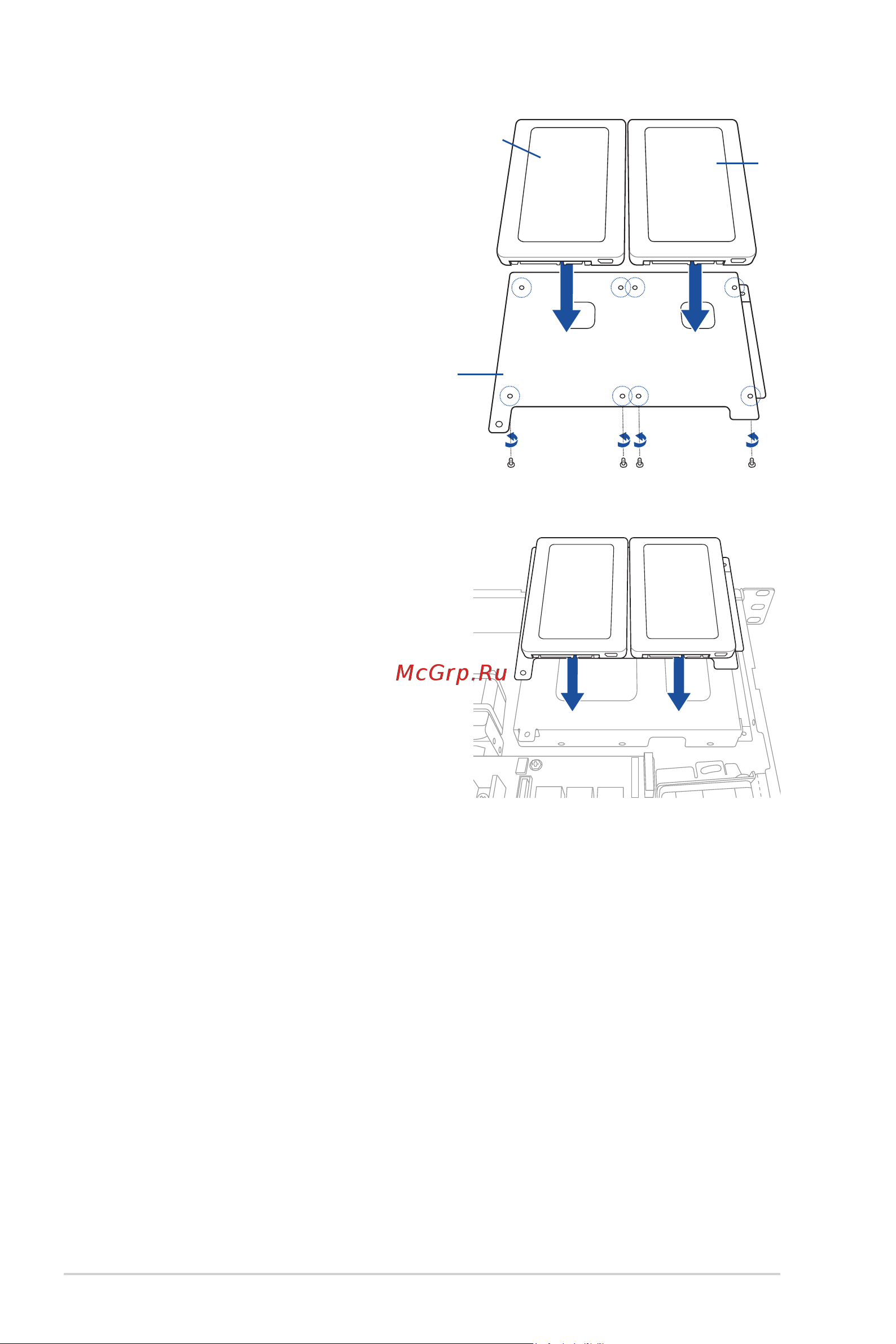

2. Prepare the SSD drive tray.

3. Place and orient two 2.5-inch SSDs on

the SSD drive tray as shown.

Ensure that the screw holes on the

underside of the 2.5-inch SSDs match

the screw holes on the SSD drive tray.

4. Secure 2.5-inch SSDs to the SSD drive

tray using four screws each.

5. Carefully place the 2.5-inch SSDs and

the SSD drive tray assembly into HDD

bay 1.

SSD 1

SSD 2
